SICK EtherCAT microScan3 User Manual

7. Install the cover plate on the safety laser scanner. Tightening torque: 2.25Nm …
2.75Nm.

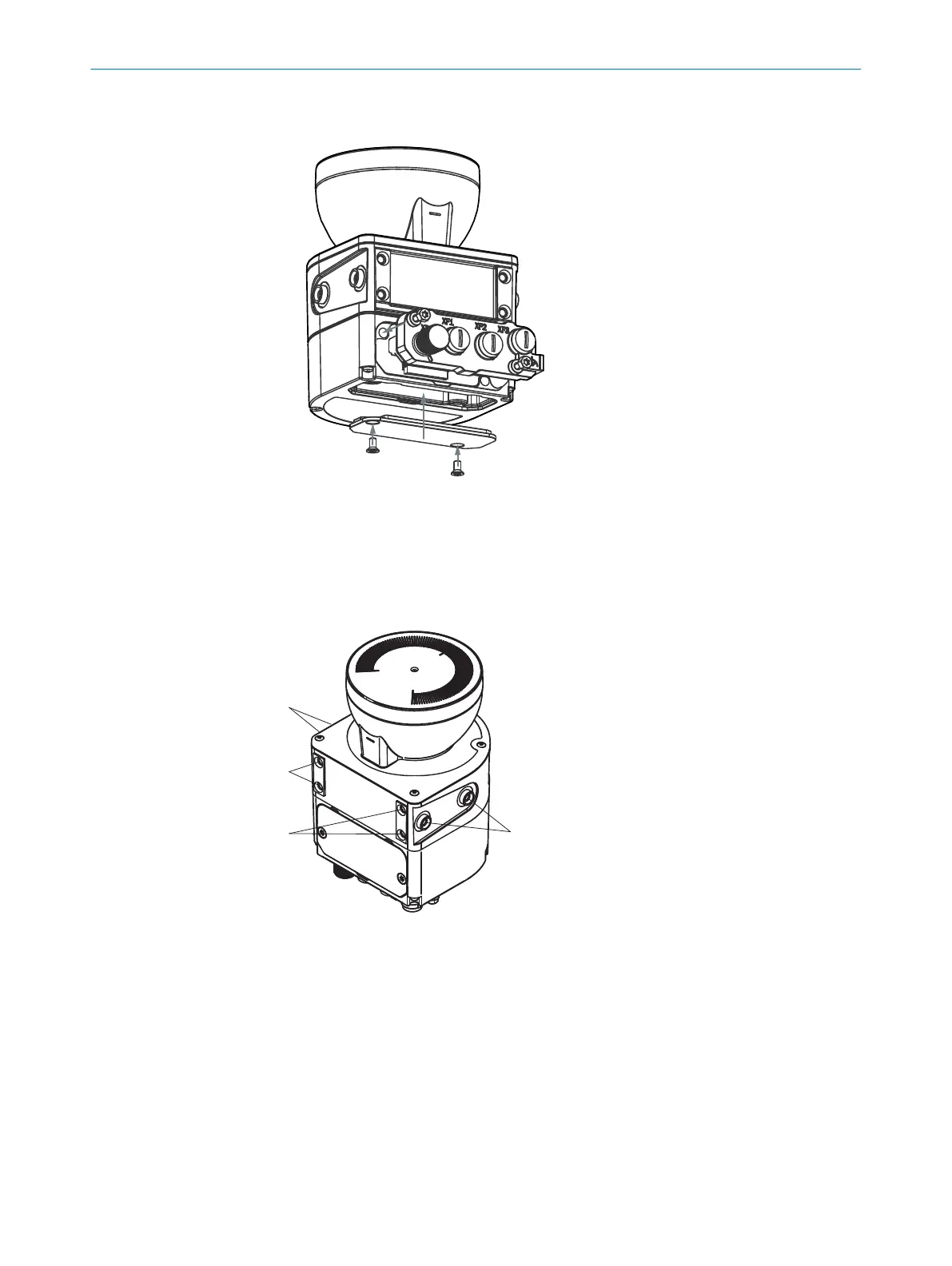

Figure 50: Installing the rear system plug
5.3.2 Direct mounting
The safety laser scanner has 4 M5 threaded holes on the back. If you are able to drill
t
hrough the mounting surface from the rear, you can mount the safety laser scanner
directly using these threaded holes.
1
1 2
2
Figure 51: Mounting the safety laser scanner directly
1
Rear M5 threaded hole
2
Side M5 threaded hole
►
Use eit
her the rear or the side M5 threaded holes for direct mounting, see
figure 51, page 79.
►
Use all four rear or all 4 side M5 threaded holes for direct mounting, so that the
values given in the data sheet for vibration and shock resistance are achieved.
►
Maximum depth of thread engagement: 7.5 mm (see "Dimensional drawings",
page 187).
►
Tightening torque: 4.5 Nm to 5.0 Nm.
MOUNTING 5
8025220/1L9Q/2023-08-14 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT®
79
Subject to change without notice

SICK EtherCAT microScan3 Specifications

General

Scanning angle	275°
Interfaces	EtherCAT
Protection class	IP65
Supply voltage	24 V DC
Resolution for protective field	30 mm
Operating voltage	24 V DC
Scanning range	5.5 m
Number of fields	128
Number of monitoring cases	128
Response time	30 ms
Operating temperature	0 °C to 50 °C
Field of application	Industrial safety
Light source	Infrared laser, 905 nm
Connection type	M12
Weight	1.2 kg
