SICK EtherCAT microScan3 - Editing Fields Using Coordinates

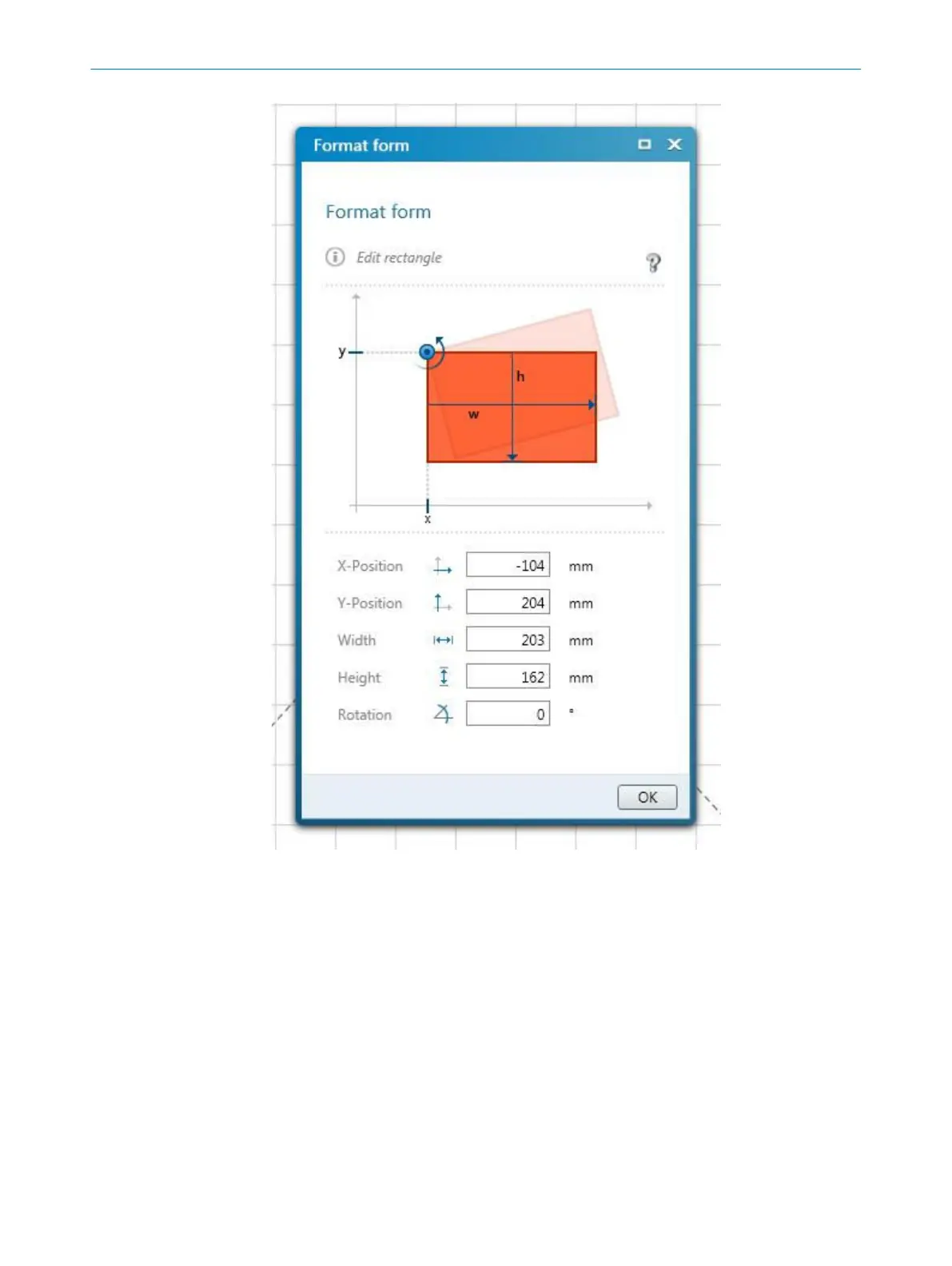

Figure 69: Editing fields using coordinates
T
he reference points for the X and Y values are as follows:
•
Rectangle:top left corner
•
Circle:center point
•
Circle sector:center point
•
Polygon:each point individually
•
Contour line:each point individually
