Display alignment
If y
ou mount the safety laser scanner with the optics cover downward, you can rotate
the orientation of the display through 180°. The preview shows the selected orientation
of the display.
►
Choose the Normal or Upside down option to specify the display orientation.
✓
The preview shows the display’s orientation.
7.10 Monitoring plane
Overview

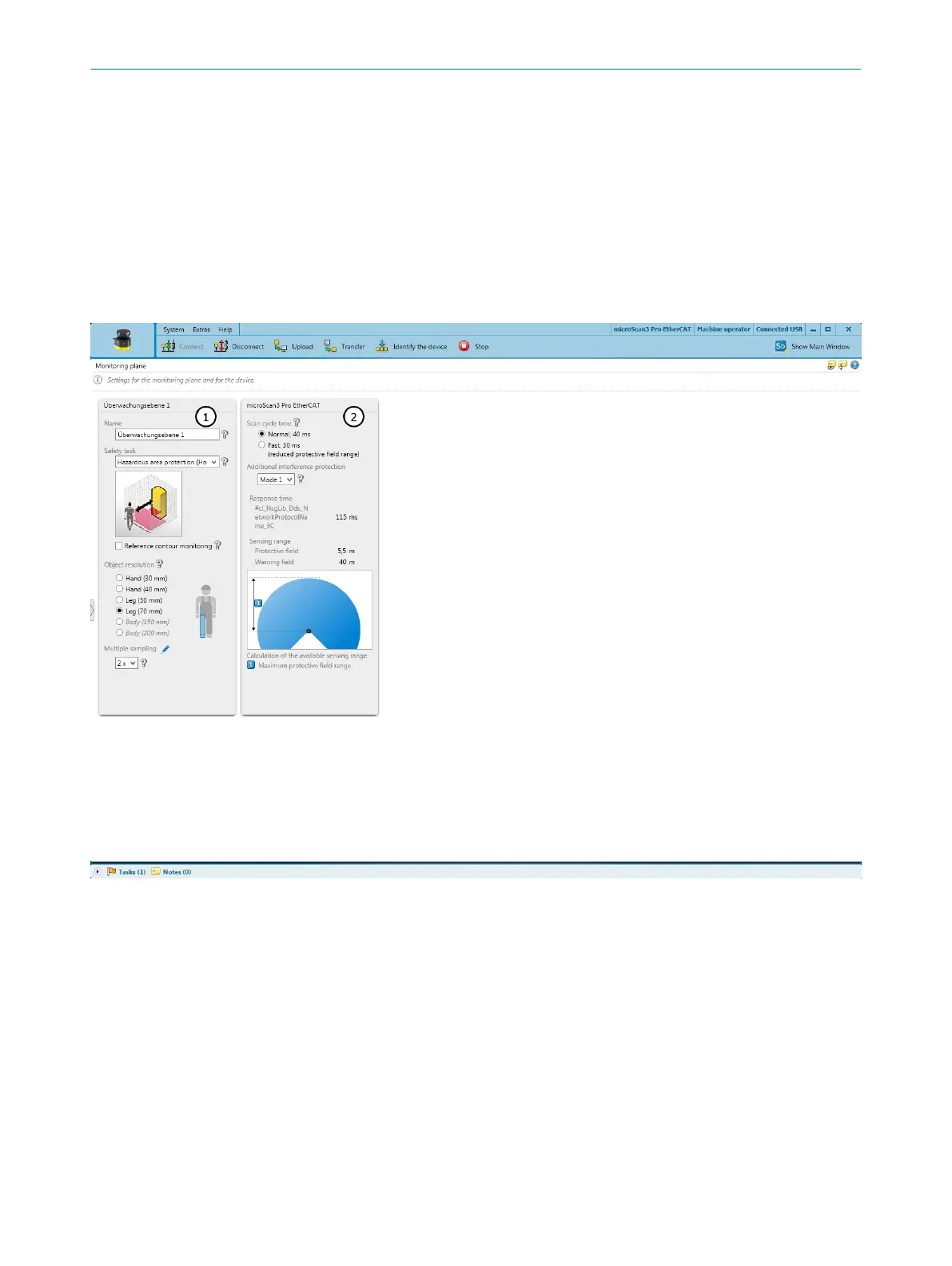

Figure 64: Monitoring plane
1
Parameters for the monitoring plane
2
Parameters for the safety laser scanner
The scan plane of a safety laser scanner forms its monitoring plane.
T
his dialog is used to define the following parameters:
•
Parameters for the monitoring plane
•
Parameters for the safety laser scanner
7.10.1 Parameters for the monitoring plane
Overview
C
onfigure a name, the protection task, object resolution, and multiple sampling setting
for the monitoring plane.
7 C
ONFIGURATION
98
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT® 8025220/1L9Q/2023-08-14 | SICK
Subject to change without notice

SICK EtherCAT microScan3 Specifications

General

Scanning angle	275°
Interfaces	EtherCAT
Protection class	IP65
Supply voltage	24 V DC
Resolution for protective field	30 mm
Operating voltage	24 V DC
Scanning range	5.5 m
Number of fields	128
Number of monitoring cases	128
Response time	30 ms
Operating temperature	0 °C to 50 °C
Field of application	Industrial safety
Light source	Infrared laser, 905 nm
Connection type	M12
Weight	1.2 kg
