11.4.1 Data recorder
Overview

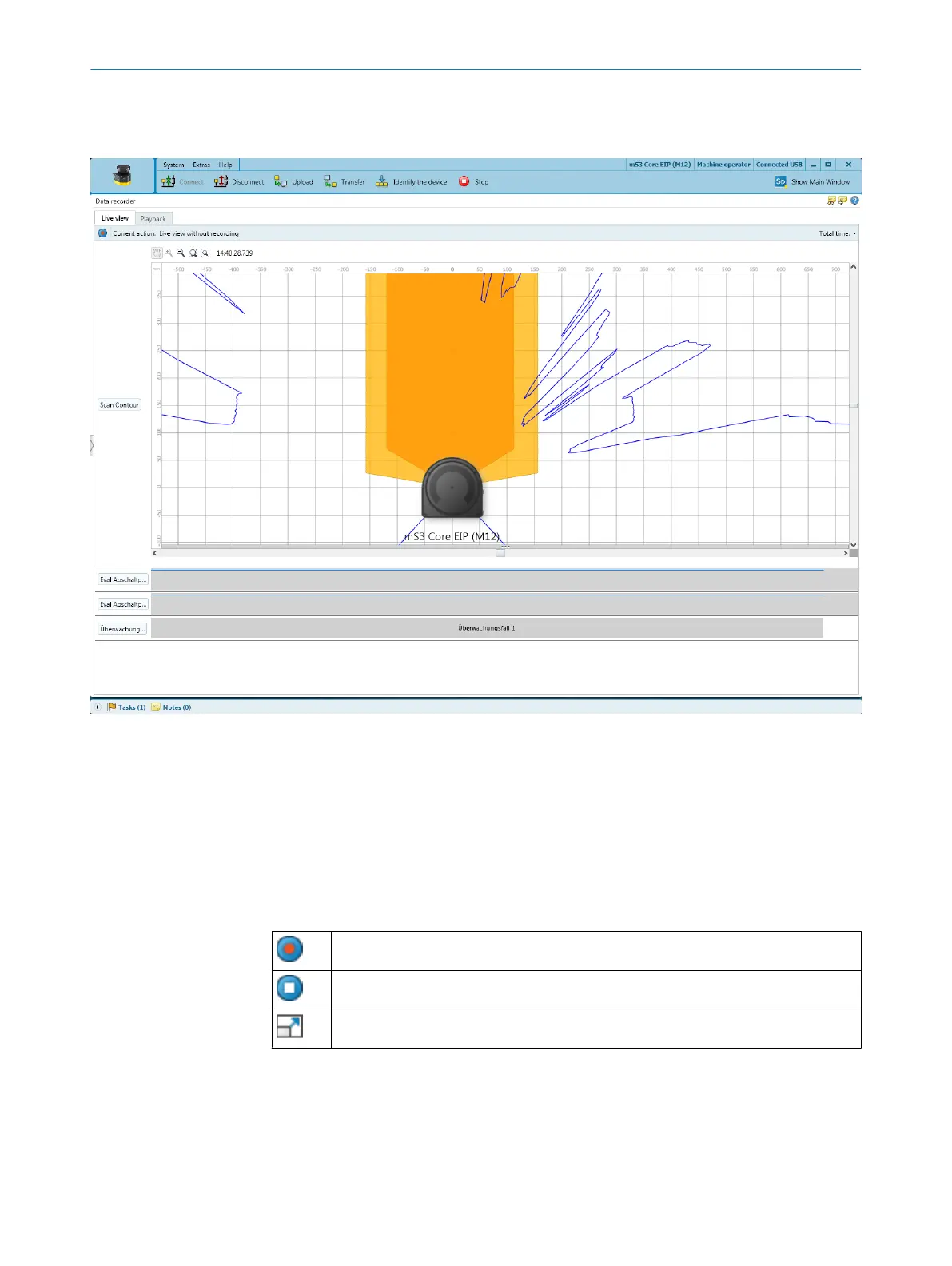

Figure 88: Data recorder
Y
ou can use the data recorder to record the device’s signals. Depending on the inter‐
face and the load on the interface, the measurement data may not be transmitted and
shown for every scan cycle.
The data is saved in a data recorder diagnostics file.
You can play the data recorder diagnostic file in the data recorder.
You can adjust the settings in the Safety Designer main window.
Table 25: Data recorder
Start recording
Stop recording
Full screen mode
Typical applications
•
Chec
k spatial geometry
•
Check where a person can stay or when a person is detected
•
Check input information about the current monitoring case
•
Check why safety outputs have switched
TROUBLESHOOTING 11
8025220/1L9Q/2023-08-14 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT®
153
Subject to change without notice

SICK EtherCAT microScan3 Specifications

General

Scanning angle	275°
Interfaces	EtherCAT
Protection class	IP65
Supply voltage	24 V DC
Resolution for protective field	30 mm
Operating voltage	24 V DC
Scanning range	5.5 m
Number of fields	128
Number of monitoring cases	128
Response time	30 ms
Operating temperature	0 °C to 50 °C
Field of application	Industrial safety
Light source	Infrared laser, 905 nm
Connection type	M12
Weight	1.2 kg
