5.3 Mounting procedure
The following options for mounting the safety laser scanner are available:
•
mount
ing directly without a mounting kit
•
mounting using mounting kit 1
•
mounting using mounting kits 1 and 2
The mounting kits 1 and 2 are built upon one another. This means that for mounting
using mounting kit 2, you also need mounting kit 1.
Each mounting kit consists of a bracket, and the screws needed to mount the safety
laser scanner on the bracket.
DANGER
H
azard due to lack of effectiveness of the protective device
Persons or parts of the body to be protected may not be recognized or not recognized in
time in case of non-observance.
►
You must take account of the minimum distances calculated for your machine, see
"Assembly", page 26.
►
Mount the safety laser scanner so that crawling beneath, climbing over and stand‐
ing behind the protective fields is impossible.

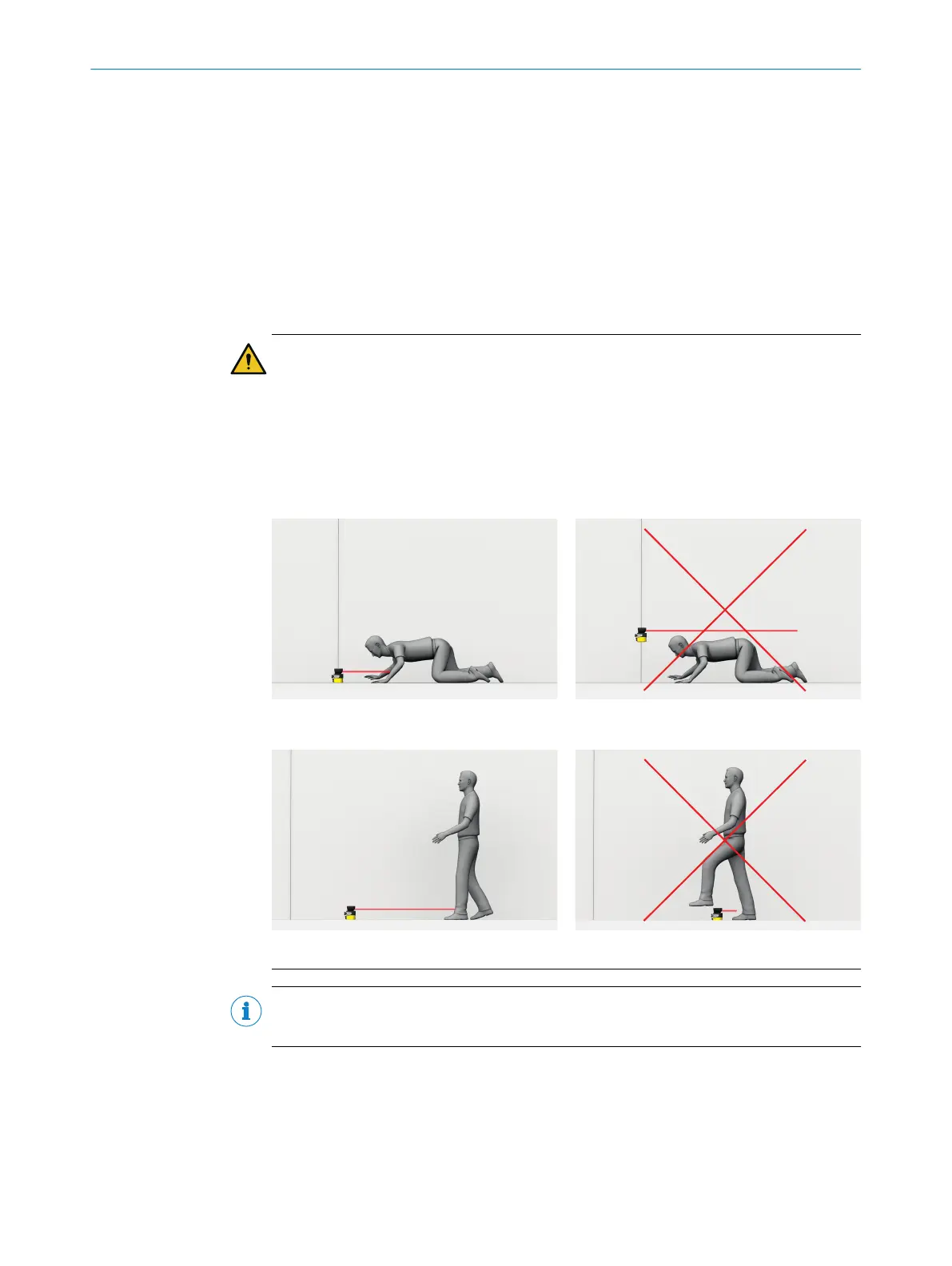

Figure 46: Prevent crawling beneath
Figure 47: Prevent stepping over
NOTE
►
R
ead this section completely before mounting the safety laser scanner.
Mounting instructions
►
T
he optics cover of the safety laser scanner is an optical component. Make sure
that the optics cover does not become dirty or scratched during unpacking and
mounting. Prevent fingerprints on the optics cover.
►
Mount the safety laser scanner so that it is protected from moisture, dirt and
damage.
5 MOUN
TING
76
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT® 8025220/1L9Q/2023-08-14 | SICK
Subject to change without notice
