3.4.6 Monitoring case
A monitoring case signals the machine status to the safety laser scanner. The safety
la
ser scanner activates the field set, which is assigned to the monitoring case and
therefore a particular machine status.
If a machine, e.g., has various operational statuses, a monitoring case can be assigned
to each operational status. The safety laser scanner receives a defined signal for the
current operational status via the safety-related network. If there is a change of signal,
the safety laser scanner switches from one monitoring case to the monitoring case that
is assigned to the new signal (as well as the new operational status). Generally, one
field set is assigned to each monitoring case.

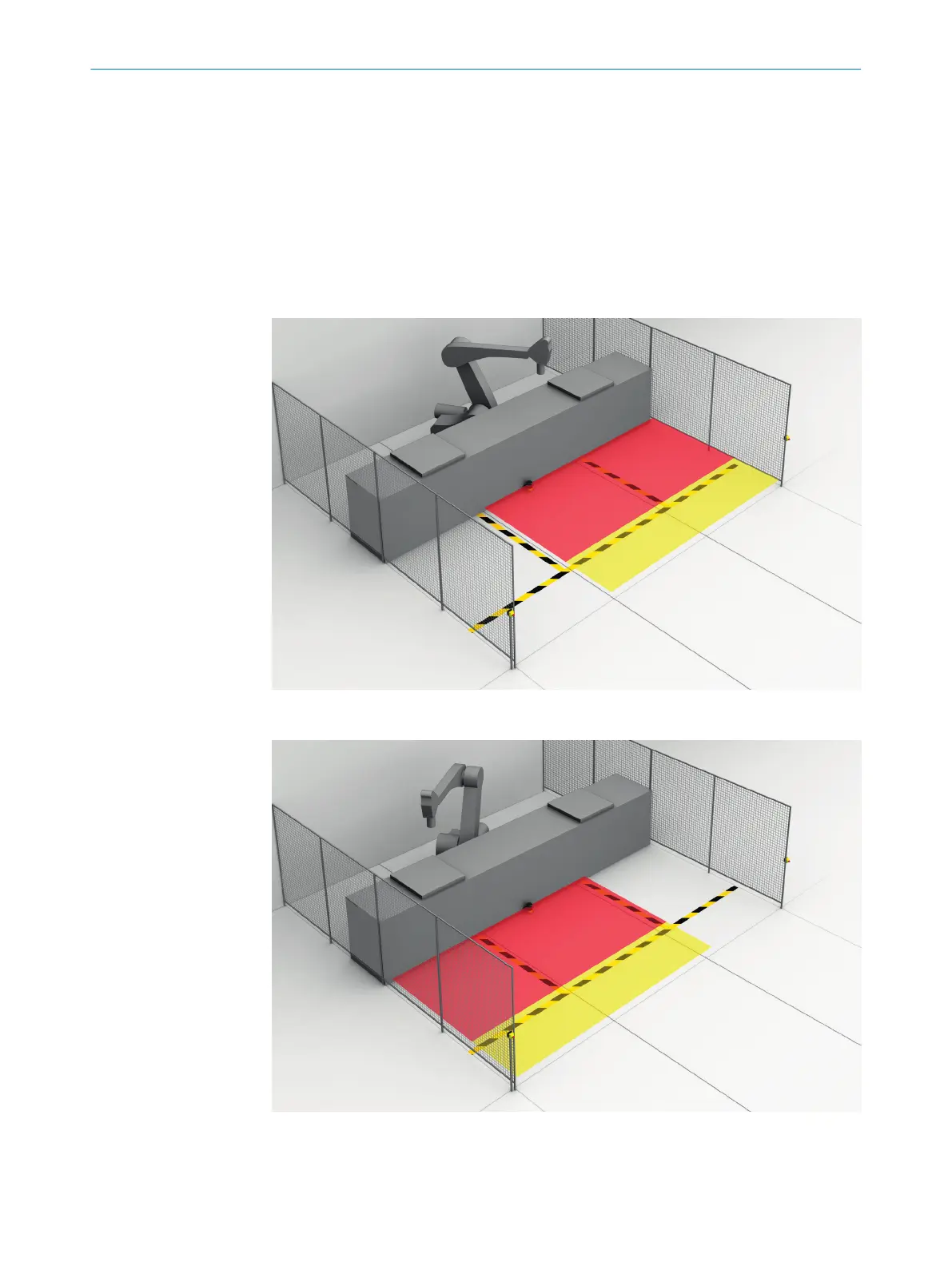

Figure 11: Monitoring case 1 with field set 1
Figure 12: Monitoring case 2 with field set 2
PRODUCT DESCRIPTION 3
8025220/1L9Q/2023-08-14 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT®
21
Subject to change without notice

SICK EtherCAT microScan3 Specifications

General

Scanning angle	275°
Interfaces	EtherCAT
Protection class	IP65
Supply voltage	24 V DC
Resolution for protective field	30 mm
Operating voltage	24 V DC
Scanning range	5.5 m
Number of fields	128
Number of monitoring cases	128
Response time	30 ms
Operating temperature	0 °C to 50 °C
Field of application	Industrial safety
Light source	Infrared laser, 905 nm
Connection type	M12
Weight	1.2 kg
