SICK EtherCAT microScan3 User Manual

190 mm
150 mm
S
L

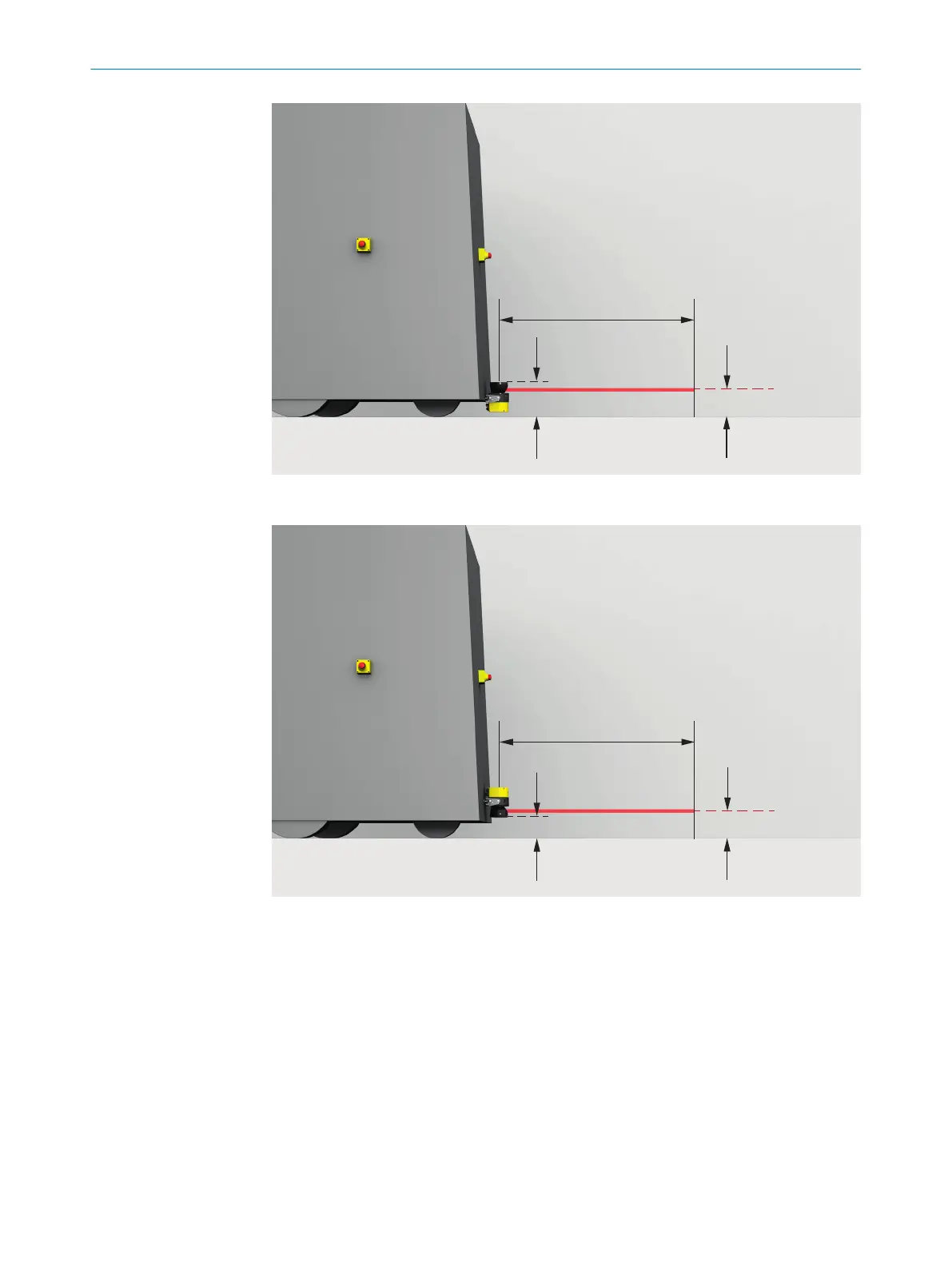

Figure 38: Recommended fitting height
110 mm
150 mm
S
L
Figure 39: Recommended fitting height for inverted mounting
4.3.10 Mobile protection in narrow aisles
Prerequisites
F
or use on industrial trucks in narrow aisles, the requirements according to the follow‐
ing documents must be met:
•
DIN 15185-2: Industrial trucks – Safety requirements - Part 2: Use in narrow
aisles
•
DGUV Regulation 68 (formerly: BGV D27): Work Safety Regulations for Industrial
Trucks (German Social Accident Insurance, DGUV)
•
VDMA Guideline: Floors for the use of narrow-aisle industrial trucks (VDMA, Sep‐
tember 2010)
•
Personal protection when using industrial trucks in narrow aisles (Berufsgenossen‐
schaft Handel und Warenlogistik (BGHW))
4 P
ROJECT PLANNING
52
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT® 8025220/1L9Q/2023-08-14 | SICK
Subject to change without notice

SICK EtherCAT microScan3 Specifications

General

Scanning angle	275°
Interfaces	EtherCAT
Protection class	IP65
Supply voltage	24 V DC
Resolution for protective field	30 mm
Operating voltage	24 V DC
Scanning range	5.5 m
Number of fields	128
Number of monitoring cases	128
Response time	30 ms
Operating temperature	0 °C to 50 °C
Field of application	Industrial safety
Light source	Infrared laser, 905 nm
Connection type	M12
Weight	1.2 kg
