7.20 Reports
Overview

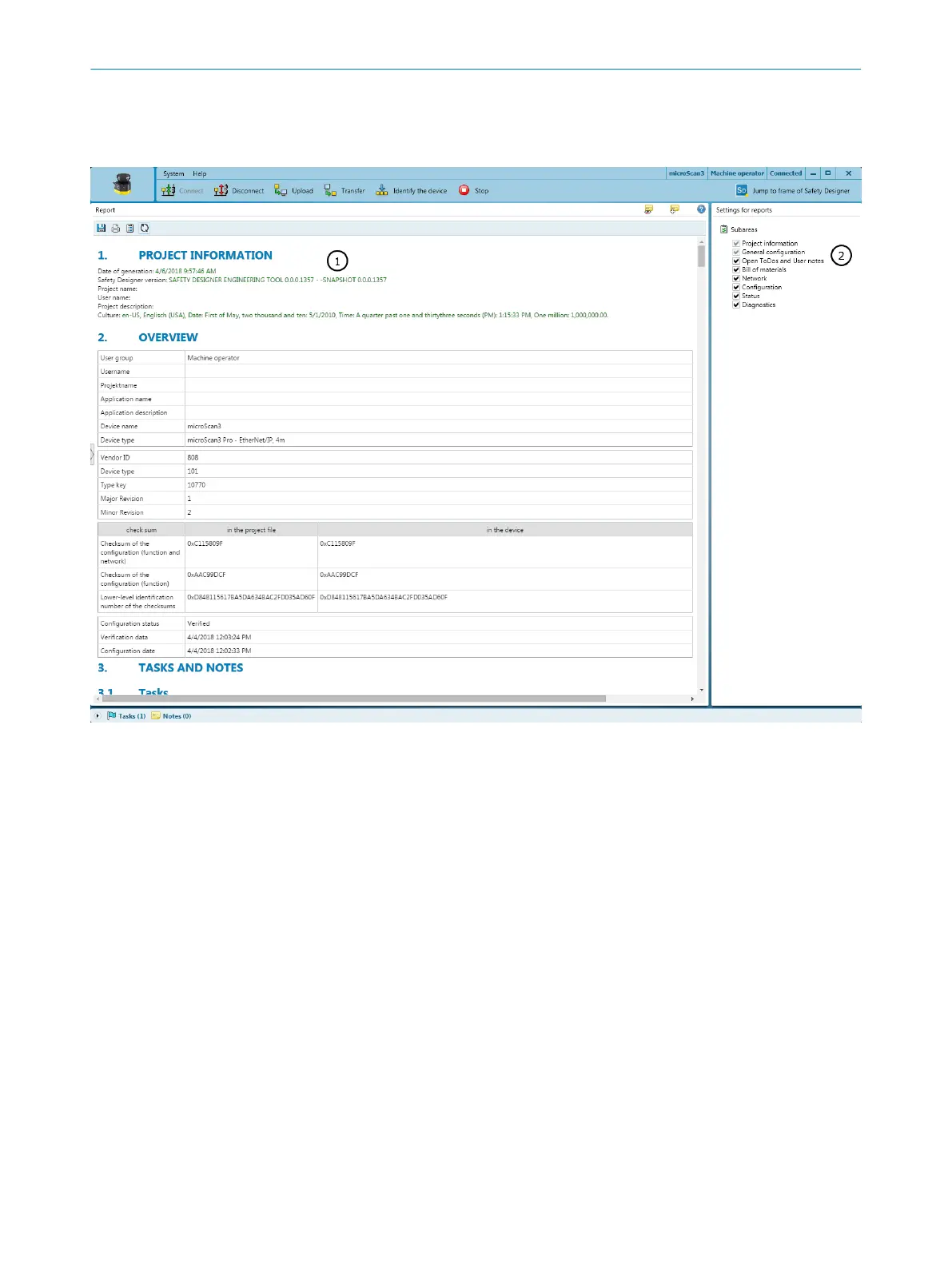

Figure 77: Report
1
Contents of the report
2
Composition of the report
A report shows the settings and data of a device. You have the option of saving and
ar
chiving these data as a PDF.
Report
When you open the Report dialog box, the Safety Designer creates a report. If you click
on Update after making changes to the configuration, you will receive an updated report.
Compiling a report
Y
ou compose the contents of a report individually:
1. Select the contents of the report under Settings for reports.
✓
Safety Designer creates a report with the selected contents.
Complementary information
National and international standards promote or recommend specific data and the
person responsible for it. The required data are included in the report.
1. Print the report.
2. Write down the responsible person on the report.
3. Archive the report.
CONFIGURATION 7
8025220/1L9Q/2023-08-14 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT®
127
Subject to change without notice

SICK EtherCAT microScan3 Specifications

General

Scanning angle	275°
Interfaces	EtherCAT
Protection class	IP65
Supply voltage	24 V DC
Resolution for protective field	30 mm
Operating voltage	24 V DC
Scanning range	5.5 m
Number of fields	128
Number of monitoring cases	128
Response time	30 ms
Operating temperature	0 °C to 50 °C
Field of application	Industrial safety
Light source	Infrared laser, 905 nm
Connection type	M12
Weight	1.2 kg
