S=1600mm/s×T+8×(d–14mm)
✓
If t
he new value is S>500mm, use the newly calculated value as the minimum
distance.
✓
If the new value S is ≤ 500mm, then use 500mm as the minimum distance.
4.3.8 Access protection
Overview
In a s
tationary application, for example on a machine where the point of access to the
hazardous area can be physically defined, the safety laser scanner is mounted with a
vertical scan plane. For access protection, the safety laser scanner detects an intrusion
by a whole body. The protective field is orthogonal to the person’s direction of approach.
S

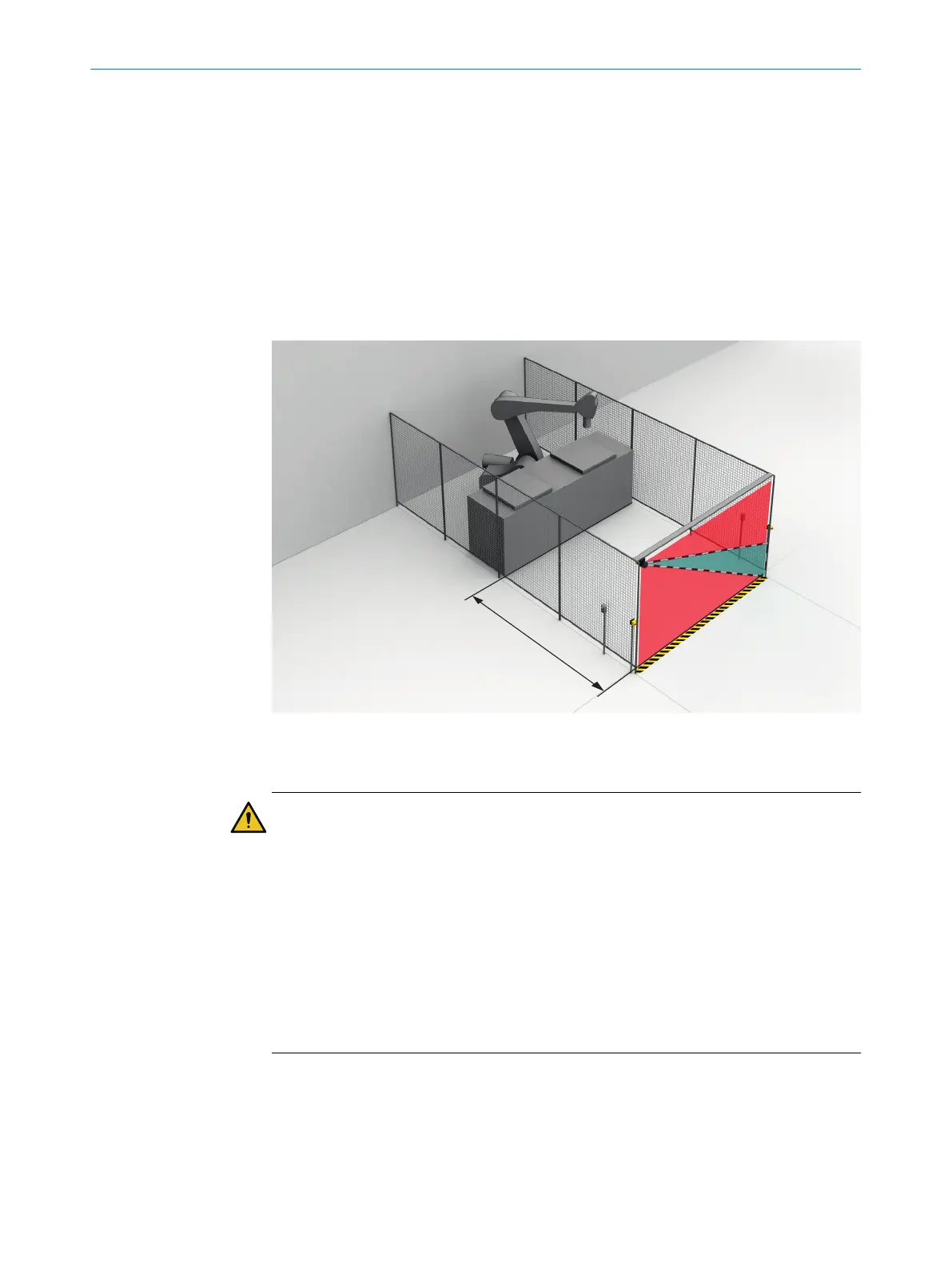

Figure 33: Stationary application in vertical operation for access protection
Important information
DANGER
H
azard due to lack of effectiveness of the protective device
Persons and parts of the body to be protected may not be recognized in case of
non-observance.
►
Use a resolution of 200 mm or finer. Otherwise, protection will not be ensured
during access protection.
►
Use double sampling during access protection. Under certain circumstances, a
person could pass through the protective field without being detected when using
higher multiple sampling.
►
Use the contour of the environment as a reference to protect the protective device
from inadvertent adjustment or tampering (see "Reference contour monitoring",
page 30).
4 PROJECT PLANNING
44
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT® 8025220/1L9Q/2023-08-14 | SICK
Subject to change without notice

SICK EtherCAT microScan3 Specifications

General

Scanning angle	275°
Interfaces	EtherCAT
Protection class	IP65
Supply voltage	24 V DC
Resolution for protective field	30 mm
Operating voltage	24 V DC
Scanning range	5.5 m
Number of fields	128
Number of monitoring cases	128
Response time	30 ms
Operating temperature	0 °C to 50 °C
Field of application	Industrial safety
Light source	Infrared laser, 905 nm
Connection type	M12
Weight	1.2 kg
