SICK EtherCAT microScan3 User Manual

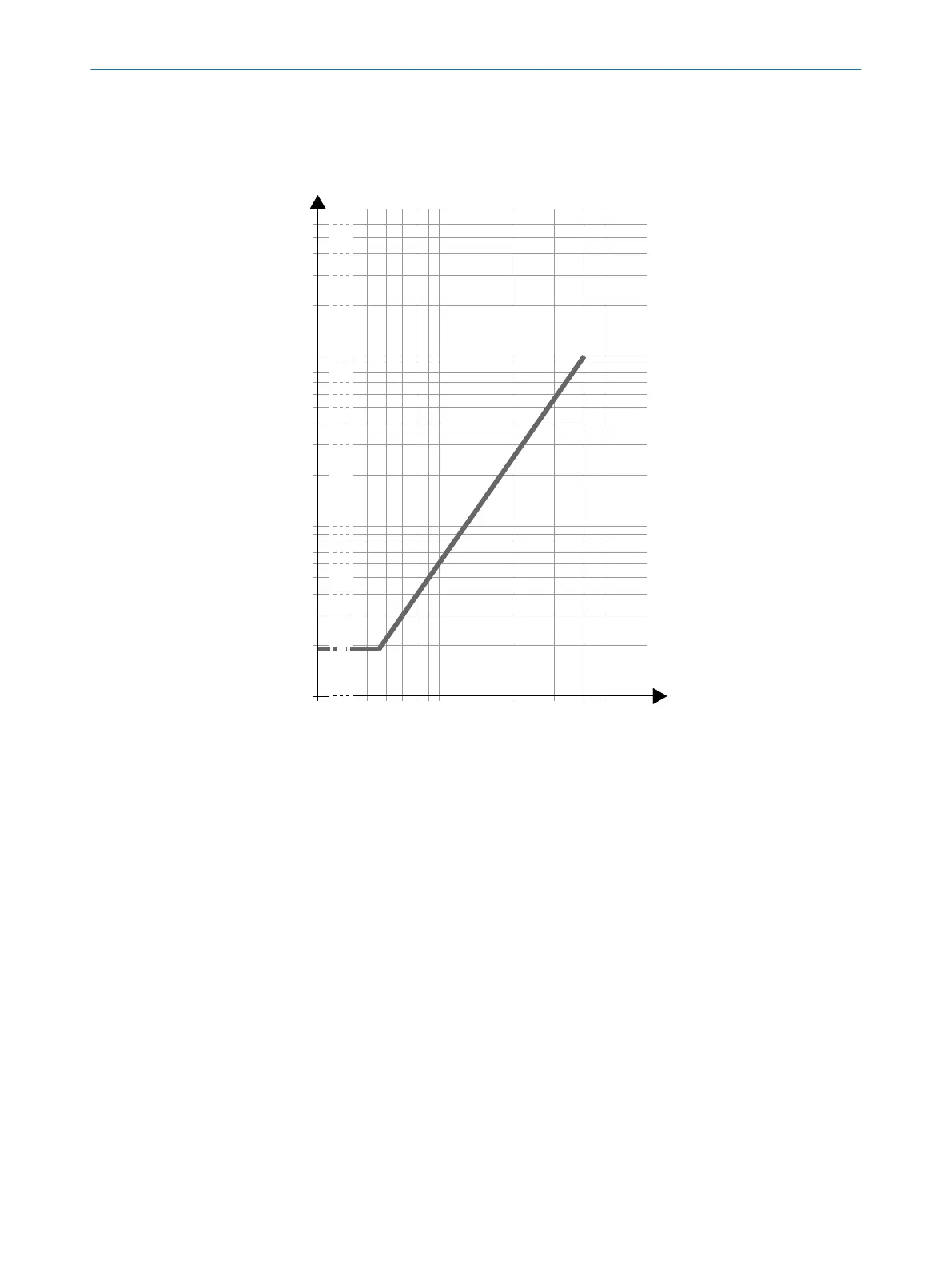

d Required minimum size of the object in mm
D Scanning range in m
2
Scan cycle time = 40ms
3
Scan cycle time = 50ms
5 10 20 50 D [m]D [m]
R [%]
500
200
100
50
20
10
5
2
1
6
5
3
2
4
1
Figure 94: Scanning range and required remission for warning fields (devices with a max.
pr
otective field range of 4.0m and devices with max. protective field range of 5.5m)
R Required minimum remission in %
D Range in m
1
Black shoe leather
2
Matt black paint
3
Gray cardboard
4
Writing paper
5
White plaster
6
Reflectors>2,000%, reflective tapes>300%
22)
22)
T
he measured values are less accurate for reflectors or reflective surfaces because the distance measurement is designed for lower
remission values.
13 T
ECHNICAL DATA
170
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT® 8025220/1L9Q/2023-08-14 | SICK
Subject to change without notice

SICK EtherCAT microScan3 Specifications

General

Scanning angle	275°
Interfaces	EtherCAT
Protection class	IP65
Supply voltage	24 V DC
Resolution for protective field	30 mm
Operating voltage	24 V DC
Scanning range	5.5 m
Number of fields	128
Number of monitoring cases	128
Response time	30 ms
Operating temperature	0 °C to 50 °C
Field of application	Industrial safety
Light source	Infrared laser, 905 nm
Connection type	M12
Weight	1.2 kg
