SICK EtherCAT microScan3 User Manual

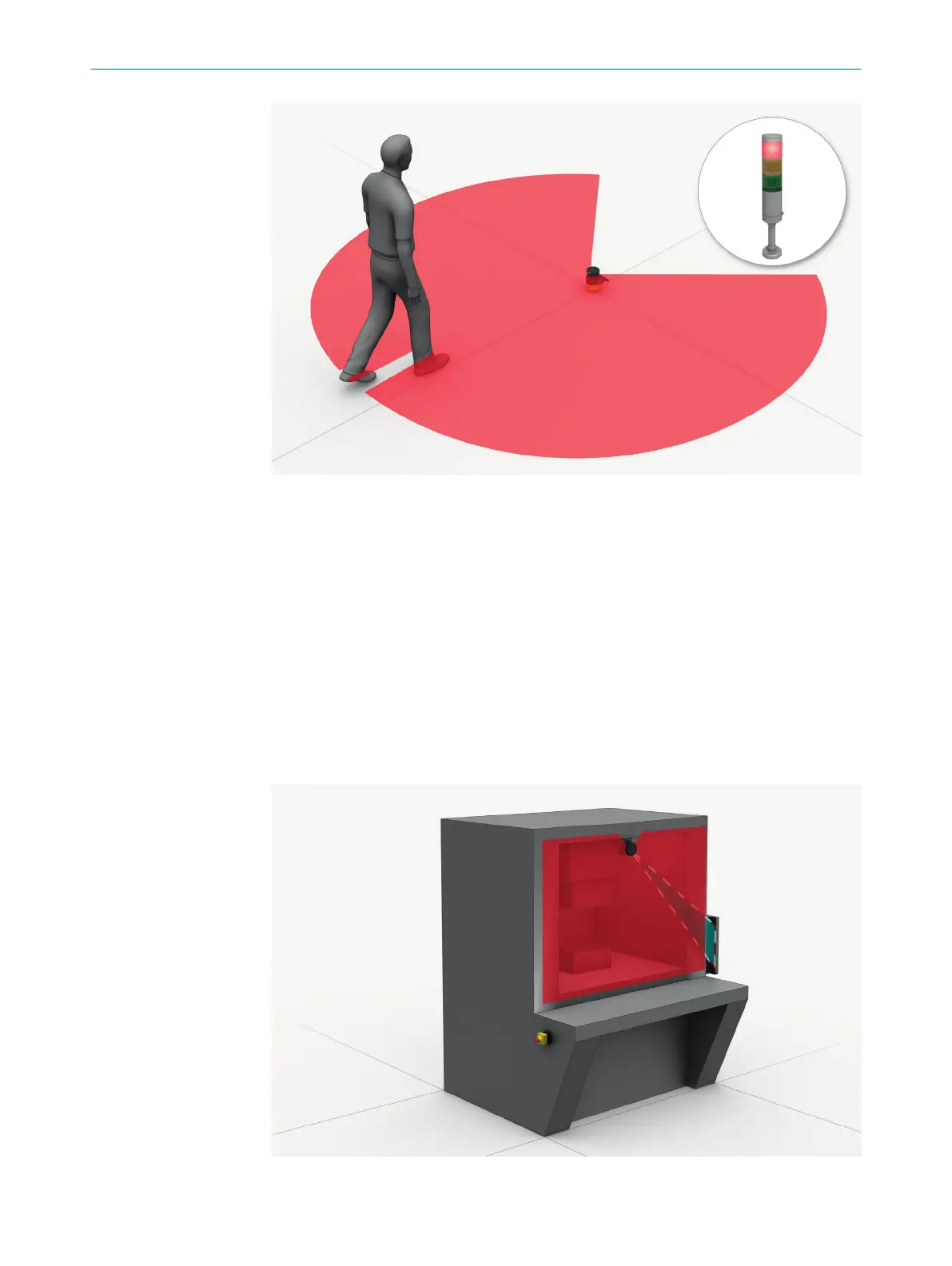

Figure 6: Protective field, shown in red in this document
Reference contour field
T
he contour as reference field monitors a contour of the environment. The safety laser
scanner switches all safety outputs to the OFF state if a contour does not match the set
parameters, because, for example, the mounting of the safety laser scanner has been
changed.
National and international standards require or recommend that a reference contour is
monitored, if the safety laser scanner is used in vertical operation for hazardous point
protection or for access protection.
The reference contour field detects unintentional and intentional changes to the posi‐
tion or alignment of the safety laser scanner. Unintentional changes may be caused by
vibrations for example. An example of an intentional change is deliberate tampering to
disable the functionality of the safety laser scanner.
Figure 7: Reference contour field, shown in blue-green in this document
3 P
RODUCT DESCRIPTION
18
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT® 8025220/1L9Q/2023-08-14 | SICK
Subject to change without notice

SICK EtherCAT microScan3 Specifications

General

Scanning angle	275°
Interfaces	EtherCAT
Protection class	IP65
Supply voltage	24 V DC
Resolution for protective field	30 mm
Operating voltage	24 V DC
Scanning range	5.5 m
Number of fields	128
Number of monitoring cases	128
Response time	30 ms
Operating temperature	0 °C to 50 °C
Field of application	Industrial safety
Light source	Infrared laser, 905 nm
Connection type	M12
Weight	1.2 kg
