3.4.7 Simultaneous monitoring
The safety laser scanner can monitor several field sets in one monitoring case (e.g.
ha
zardous area to the left and hazardous area to the right). The field sets can affect
different safety outputs in variants with several safety outputs.
For example, they can protect 2 machines with only one safety laser scanner.
In order to configure simultaneous monitoring, assign several field sets to a monitoring
case in Safety Designer, see "Assigning field sets", page 120.

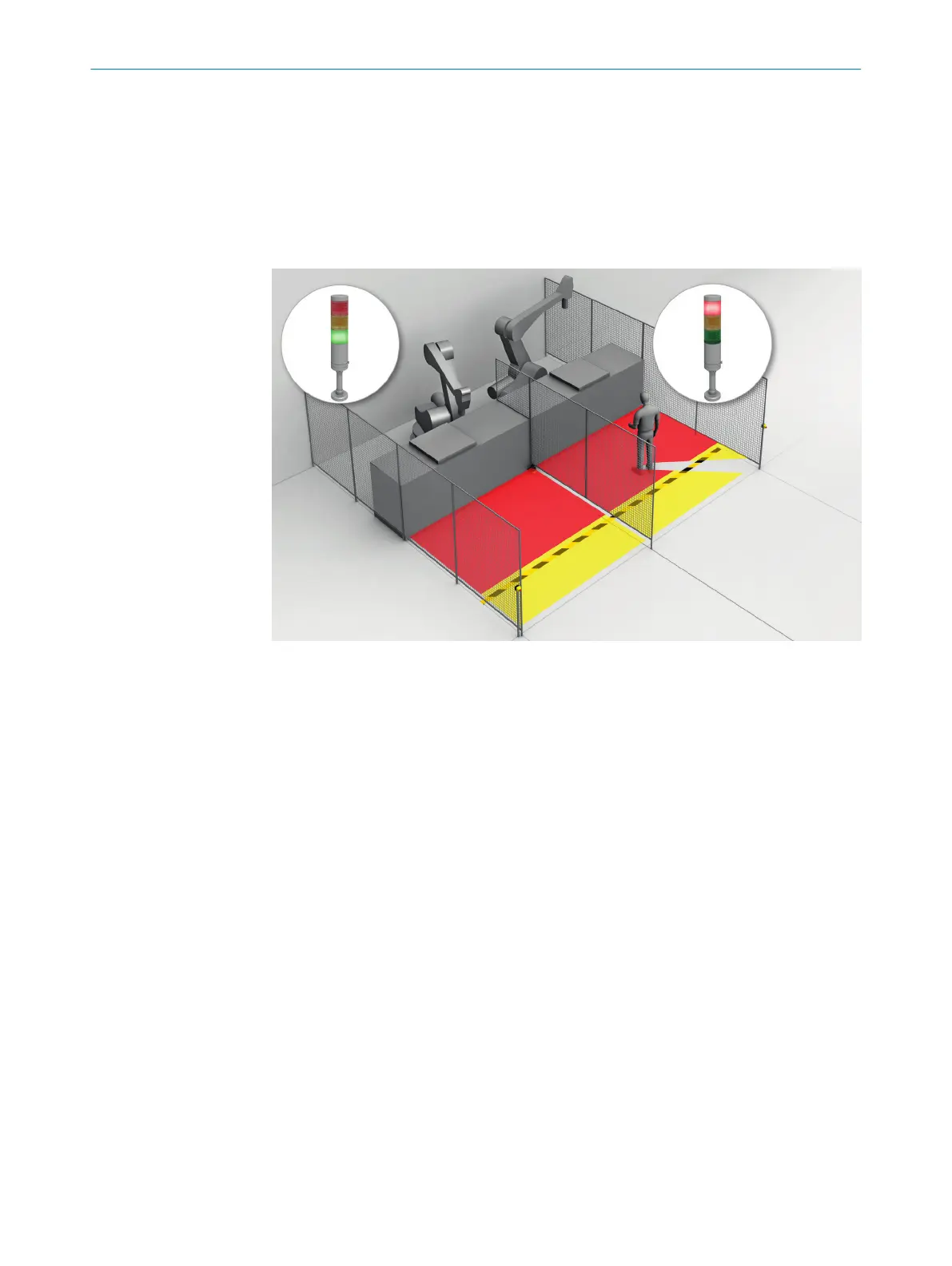

Figure 13: Simultaneous monitoring
3.5 Example applications
Hazardous area protection
In hazardous area protection, people are detected if they stay in a defined area.
This type of protective device is suitable for machines, where it is possible to see a
hazardous area completely from the reset pushbutton. When the hazardous area is
entered, a stop signal is triggered and starting is prevented.
3 P
RODUCT DESCRIPTION
22
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT® 8025220/1L9Q/2023-08-14 | SICK
Subject to change without notice

SICK EtherCAT microScan3 Specifications

General

Scanning angle	275°
Interfaces	EtherCAT
Protection class	IP65
Supply voltage	24 V DC
Resolution for protective field	30 mm
Operating voltage	24 V DC
Scanning range	5.5 m
Number of fields	128
Number of monitoring cases	128
Response time	30 ms
Operating temperature	0 °C to 50 °C
Field of application	Industrial safety
Light source	Infrared laser, 905 nm
Connection type	M12
Weight	1.2 kg
