SICK EtherCAT microScan3 User Manual

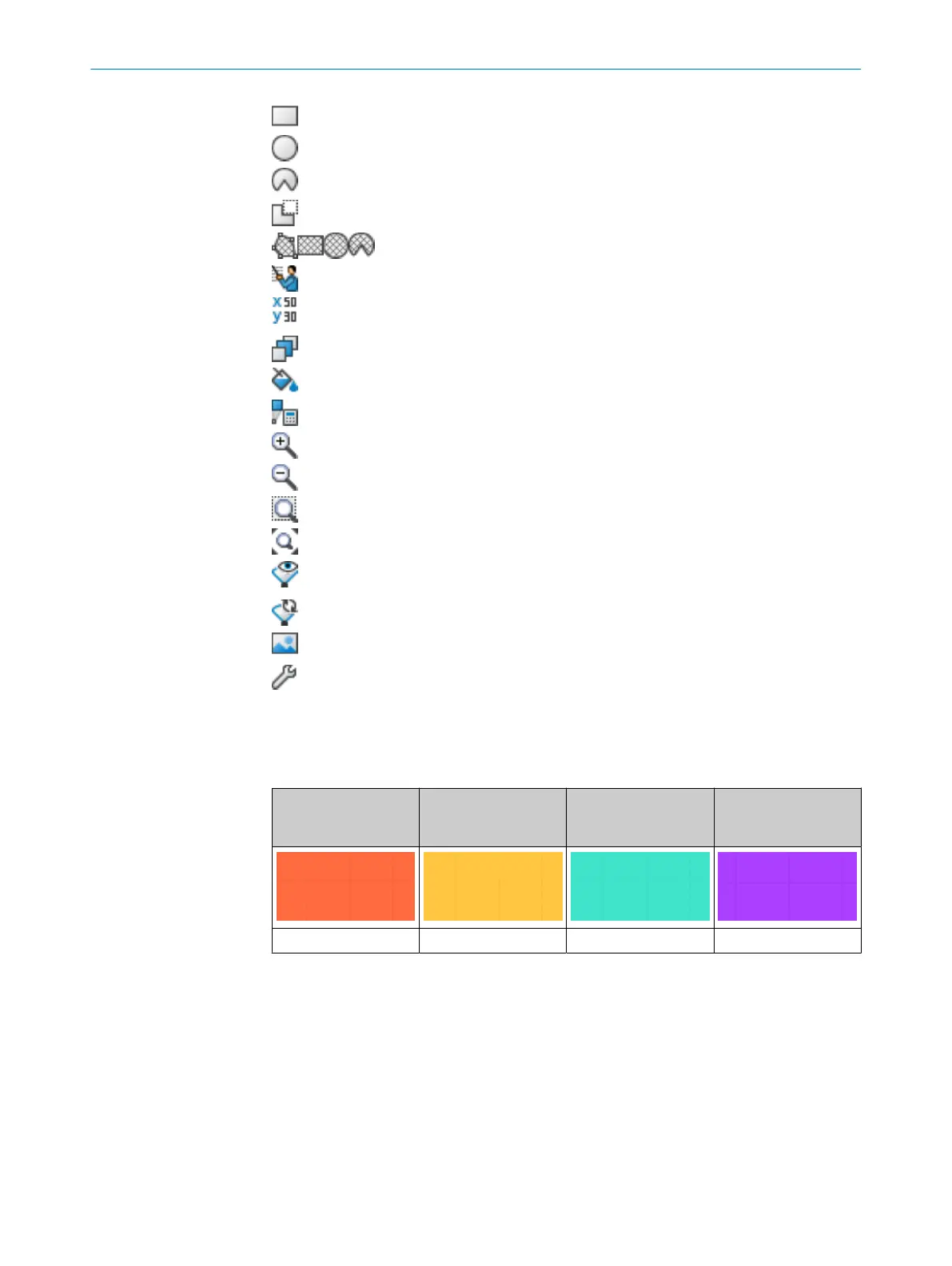

Draw rectangle
Draw circle
Draw circle segment
Mask areas (see "Dr
awing in points that cannot be monitored",
page 113). Use the drawing functions for fields to draw the masked
areas. The buttons are crosshatched.
Enable propose field
Edit a field using coordinates (see "E
diting fields using coordinates",
page 111)
Push the object into the foreground or background
Select field design
Calculate field
Zoom in
Zoom out
Zoom to area
Zoom to work space
Show snapshot of the spatial contour. Clicking again clears the spatial
cont
our shown.
Show live spatial contour
Paste background image (see "Bac
kground image", page 109)
Open field editor settings
Field display
S
afety Designer displays the field types in different colors.
Table 10: Colors of the field types
Protective field Warning field Reference contour
f
ield and contour
detection field
Collision protection
field
1)
Red Yellow Turquoise Violet
1)
Available only for devices with the Pro performance package and a maximum protective field range of
9m.
7 CONFIGURATION
106
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT® 8025220/1L9Q/2023-08-14 | SICK
Subject to change without notice

SICK EtherCAT microScan3 Specifications

General

Scanning angle	275°
Interfaces	EtherCAT
Protection class	IP65
Supply voltage	24 V DC
Resolution for protective field	30 mm
Operating voltage	24 V DC
Scanning range	5.5 m
Number of fields	128
Number of monitoring cases	128
Response time	30 ms
Operating temperature	0 °C to 50 °C
Field of application	Industrial safety
Light source	Infrared laser, 905 nm
Connection type	M12
Weight	1.2 kg
