5.2.4 Measuring sockets
Description
The measuring sockets are used to output analog signals. Any interconnectable signal can
be output to any measuring socket on the Control Unit.
CAUTION
The measuring sockets should be used for commissioning and servicing purposes only.
The measurements may only be carried out by properly trained specialist personnel.
0HDVXULQJVRFNHWVPP
7PHDVXULQJVRFNHW
7PHDVXULQJVRFNHW
*1'UHIHUHQFH
0HDVXULQJVLJQDO
IRUGHIDXOWVHWWLQJ
RIVFDOLQJ
9
9
9
RIWKHPHDVXULQJVLJQDO
Figure 5-9 Arrangement of the measuring sockets on the Control Unit CU305
Parameterizing and using the measuring sockets
The measuring sockets are parameterized and operated via the STARTER commissioning
tool.

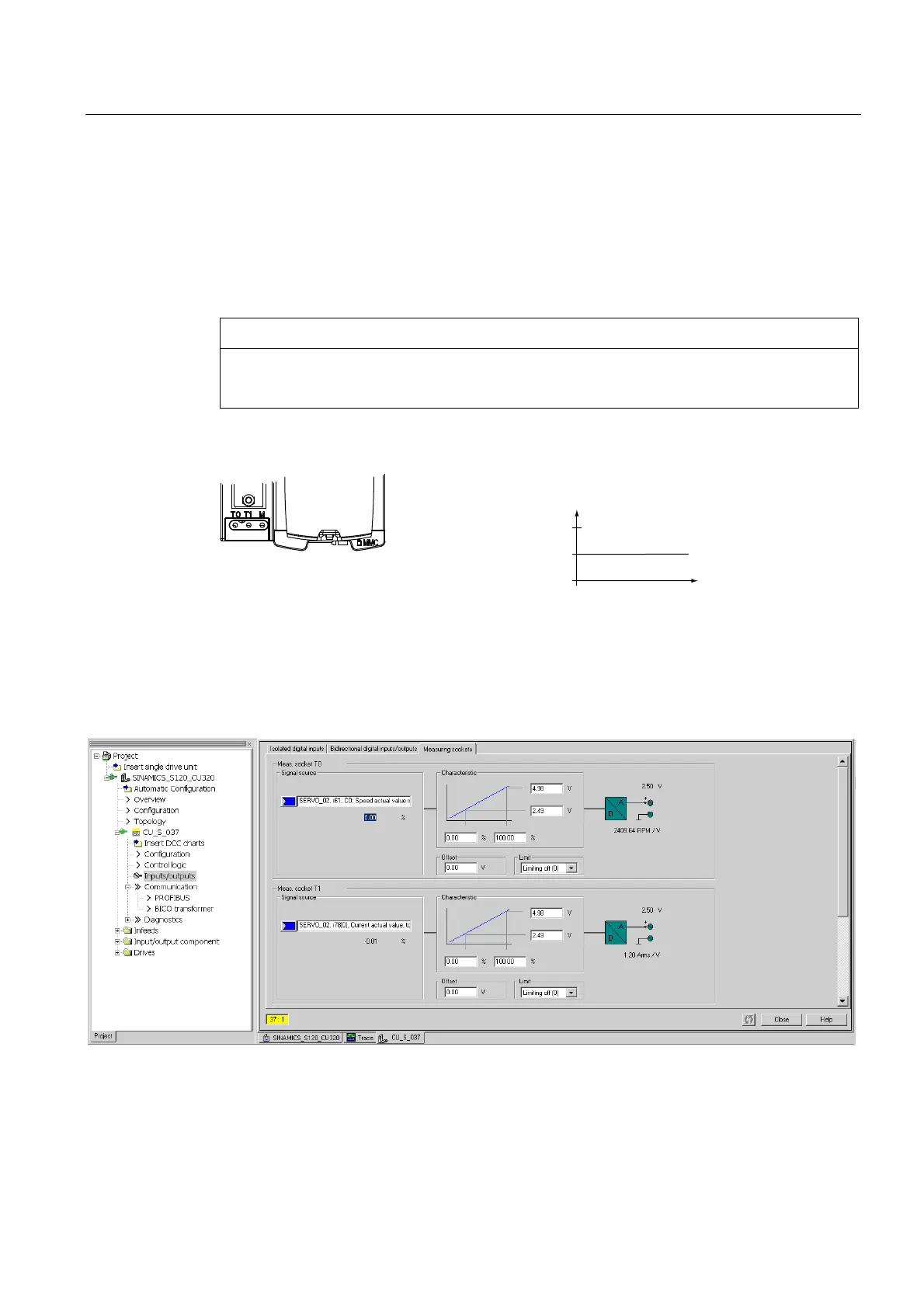

Figure 5-10 "Measuring sockets" initial screen
