Reinforcement plates
4.3 Technical data
SINAMICS S120 Combi
102 Manual, Edition 07/2012, 6SL3097-4AV00-0BP3
1
2
2
2
2
3
3
① Reinforcement plates
② Holes to remove/tighten the screws on the air baffle plate of the S120 Combi
③ M4x10 screws

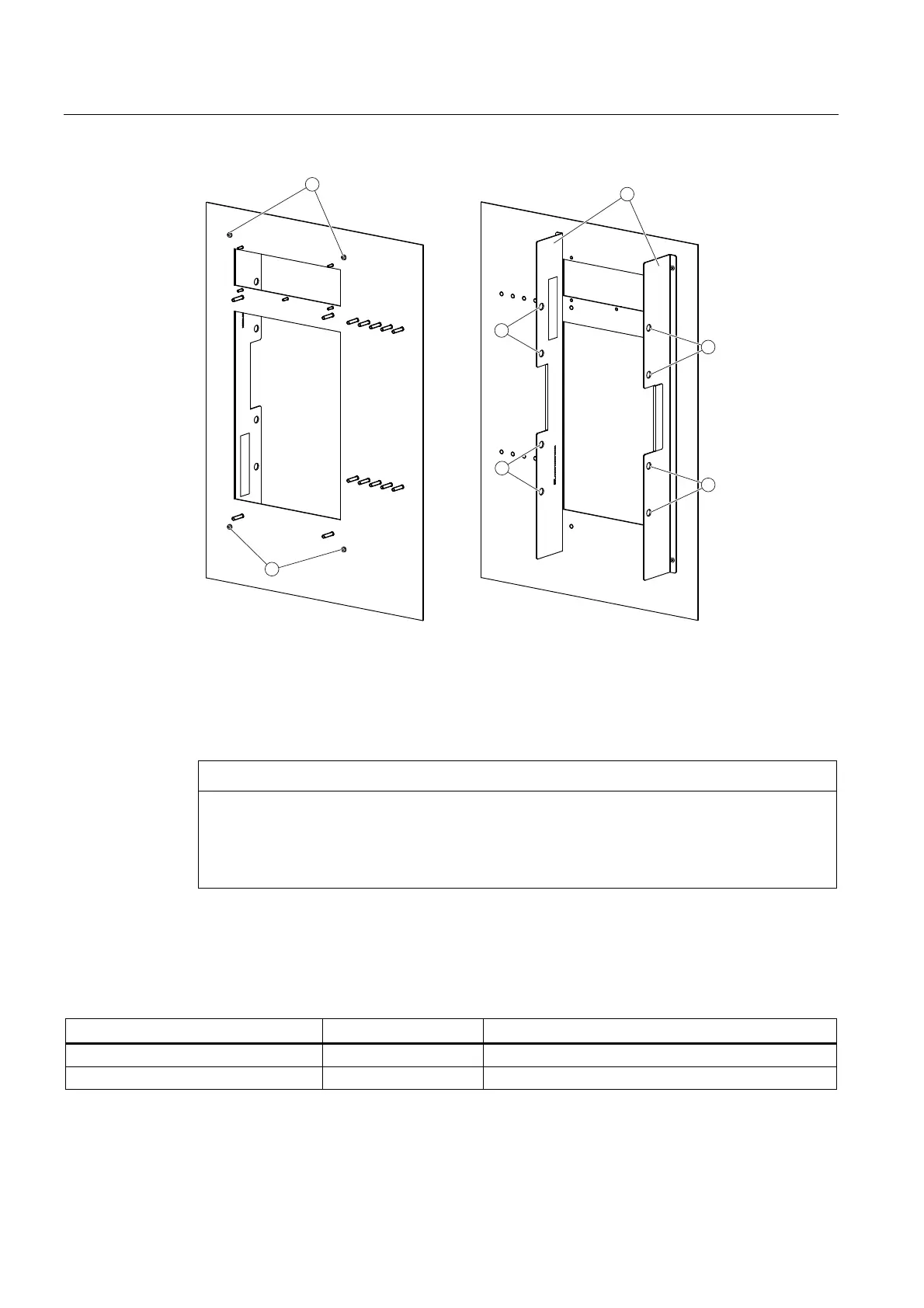

Figure 4-3 Installed reinforcement plates: View from the front and from the rear
CAUTION
The reinforcement plates must be installed so that the openings between the S120 Combi
Power Module and the external fan unit are closed.
If the reinforcing plates are incorrectly fixed, this can result in an excessively high heat sink
temperature and cause the S120 Combi Power Module to prematurely trip.
4.3 Technical data
6SL3161-1LP00-0AA0 Unit Value
Weight (2 units) kg 1.5
Dimensions (W x H x D) mm 150 x 57.5 x 750
