3.8 Electrical connection
SINAMICS S120 Combi
90 Manual, Edition 07/2012, 6SL3097-4AV00-0BP3
3.8.3 Signal cables at the EP terminals
The shields of the signal cables at the EP terminals X21 and X22 are connected using the
shield clamp
① from the Completion Kit (Weidmüller: KLBÜ 4-13.5). The connection
involves the following steps:
● Mount the shield clamp at the S120 Combi using an SW3 wrench with a tightening torque
of 1.8 Nm
● Strip the insulation from the signal cables and crimp on end sleeves to the individual
cores
● Connect the cores to the EP terminals (screw terminals)
● Connect the signal cable shields as shown below.

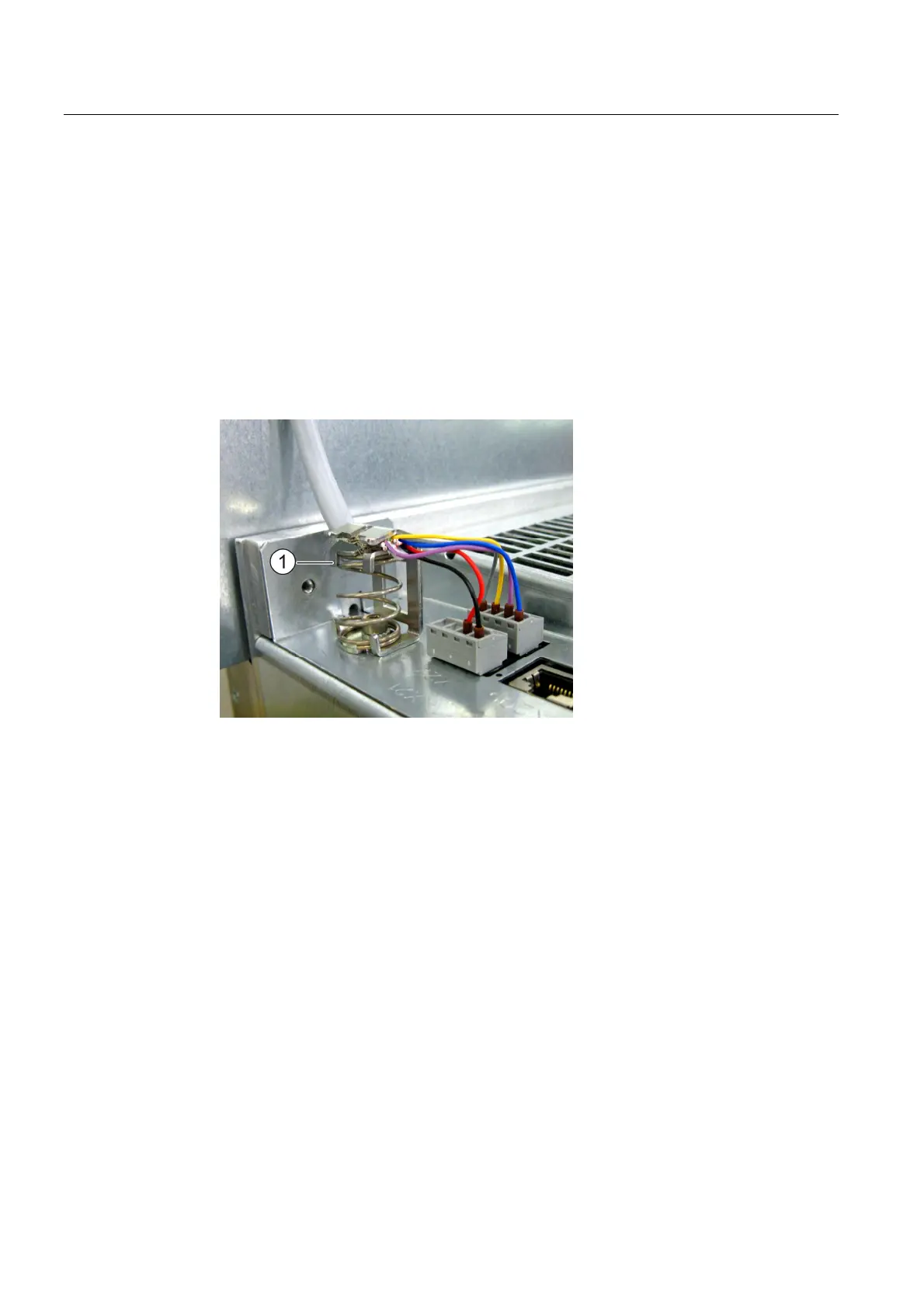

Figure 3-20 Signal cables connected with the correct shield support
