7.7 Installation
SINAMICS S120 Combi
132 Manual, Edition 07/2012, 6SL3097-4AV00-0BP3
7.7 Installation
Installing a Motor Module Booksize Compact
1 Mounting wall
2 M6 x 16 screw
Hex combination screw or hex screw with spring washer and plain washer

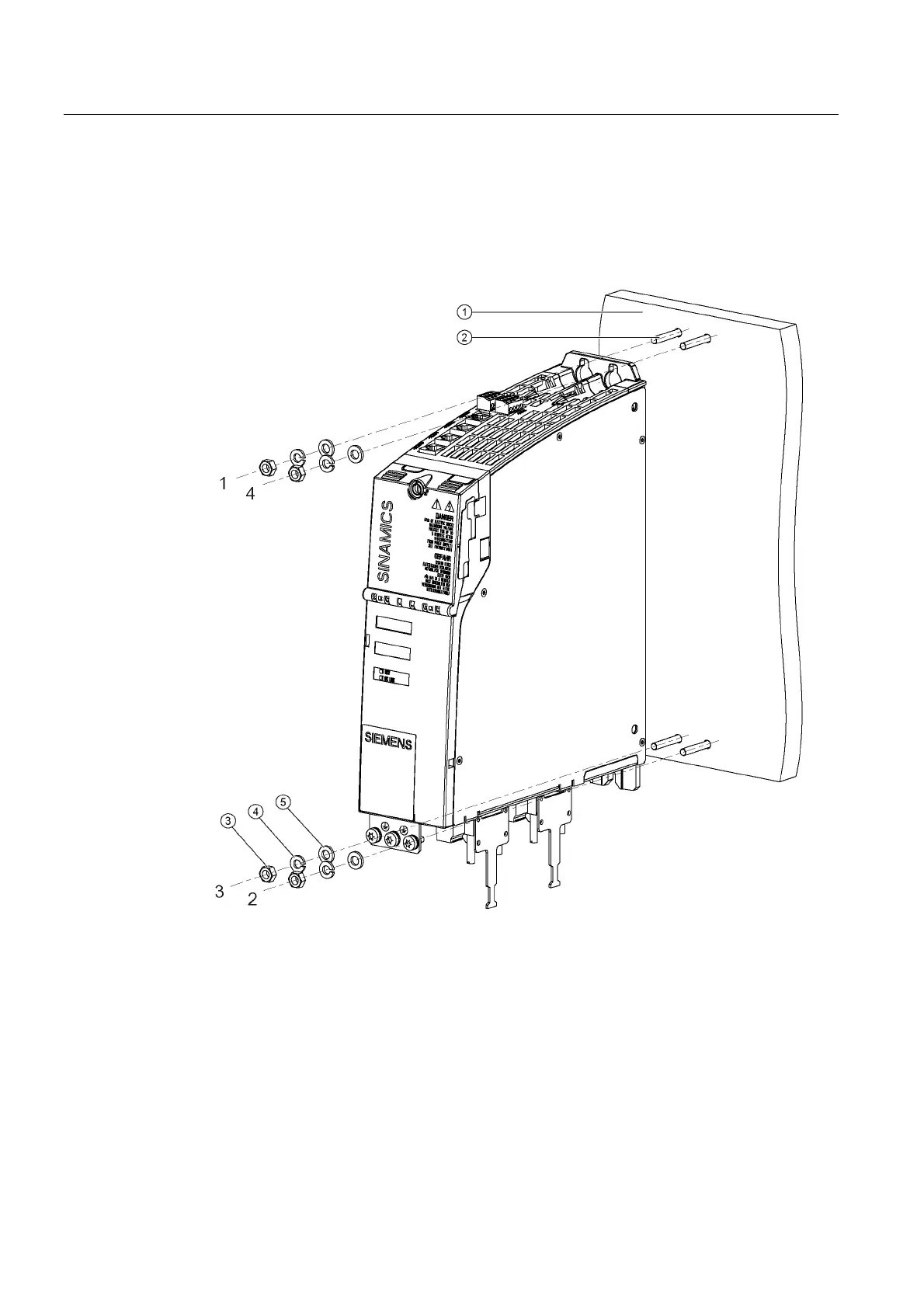

Figure 7-7 Installing a Motor Module Booksize Compact with internal air cooling
Tightening torques:
● Initially, tighten by hand (0.5 Nm)
● Then tighten with 6 Nm (in the specific sequence 1 to 4)
