10.2 DRIVE-CLiQ Hub Module DMC20
SINAMICS S120 Combi
Manual, Edition 07/2012, 6SL3097-4AV00-0BP3
197
Removal
1. The lug on the mounting slide first needs to be pushed down to unlock the slide from the
DIN rail.
2. The component can now be tilted forwards and pulled up and off the DIN rail.
1
2


① Mounting slide
② Mounting rail

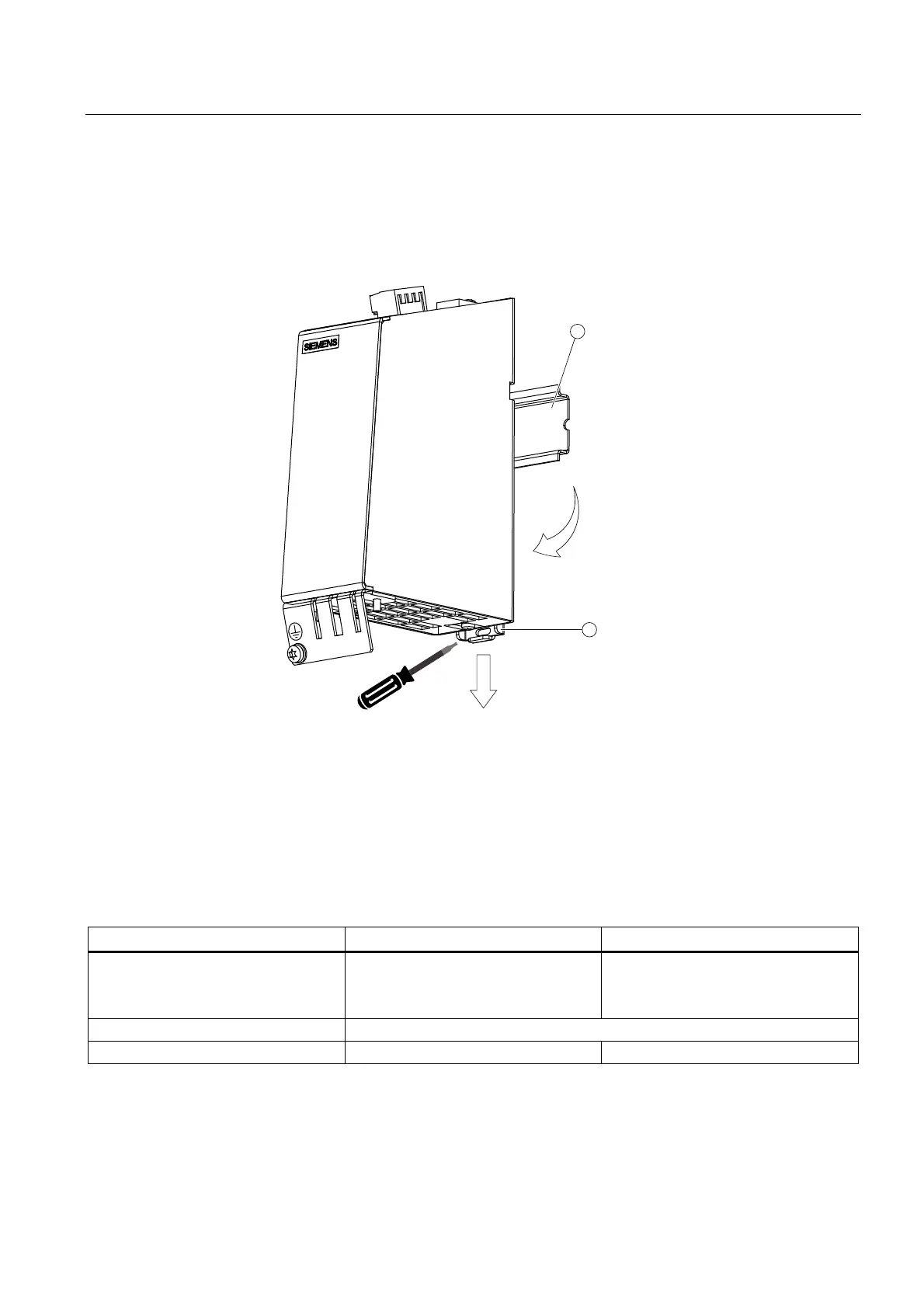

Figure 10-8 Removal of a component from a DIN rail
10.2.6 Technical data
Table 10- 19 Technical data of the DMC20
6SL3055-0AA00-6AAx Unit Value
Electronics power supply
Voltage
Current (without DRIVE-CLiQ node)
V
DC
A
DC
24 DC (20.4 – 28.8)
0.15
PE/ground connection At the housing with M4/1.8 Nm screw
Weight kg 0.8
