Additional system components
10.1 Terminal Module TM54F
SINAMICS S120 Combi
Manual, Edition 07/2012, 6SL3097-4AV00-0BP3
189
10.1.7 Installation
Installation
1. Slightly tilt the component backwards and attach it to the mounting rail using the hook.
2. Swivel the component on the mounting rail until the mounting slide at the rear audibly
latches
3. Shift the components on the mounting rail to the left or right until they reach their final
position

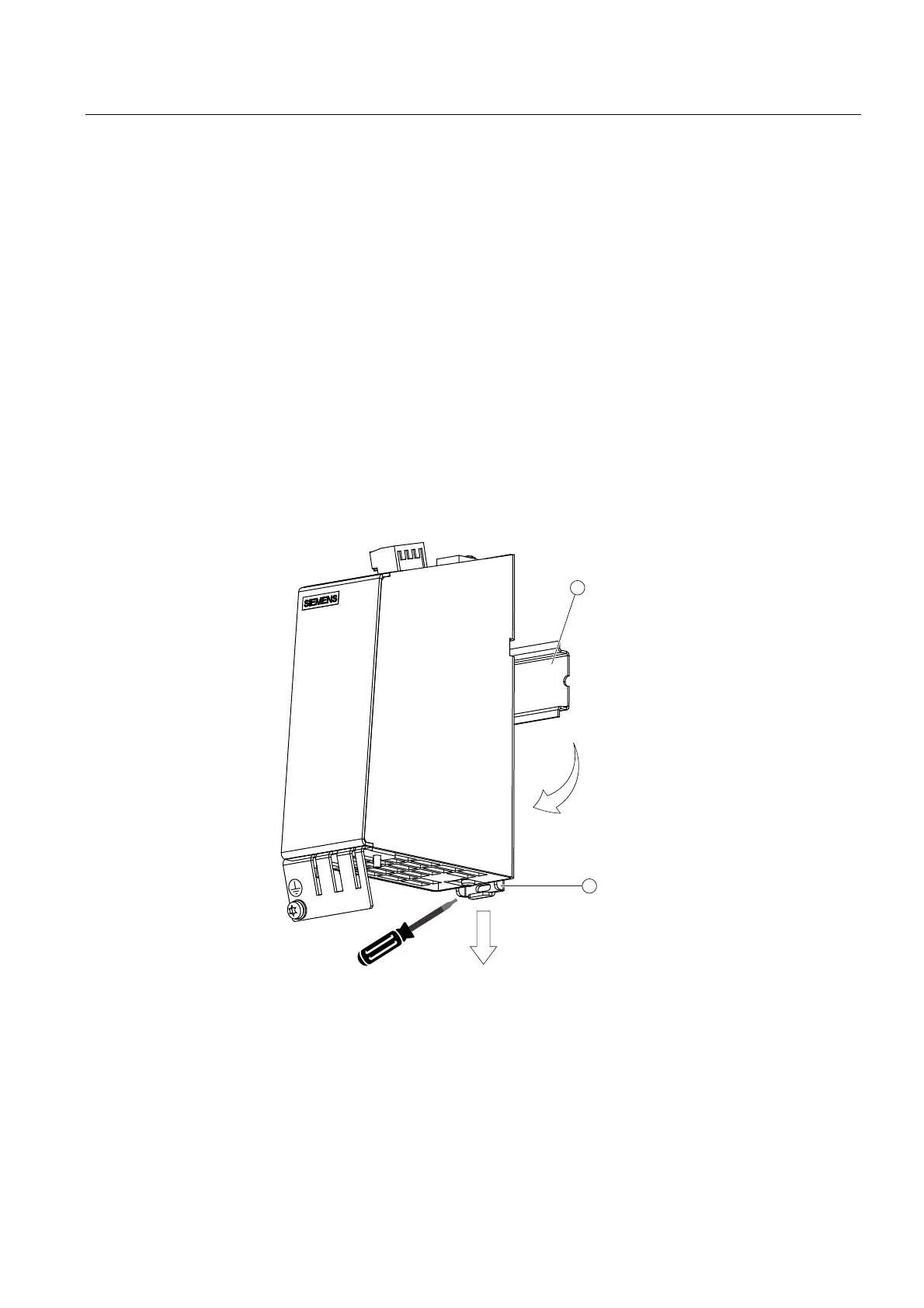

Removal
1. First shift the mounting slide downwards at the lug to release the interlocking with the
mounting rail
2. Swivel the component towards the front and then remove it upwards from the mounting
rail
1
2


① Mounting slide
② Mounting rail
Figure 10-4 Removal of a component from a DIN rail
