Siemens SINAMICS S120 Combi User Manual

Line-side power components
2.7 Line reactors
SINAMICS S120 Combi
Manual, Edition 07/2012, 6SL3097-4AV00-0BP3
41
2.7.3 Connection description
2.7.3.1 Overview
:
8
9
9
:
8
3(

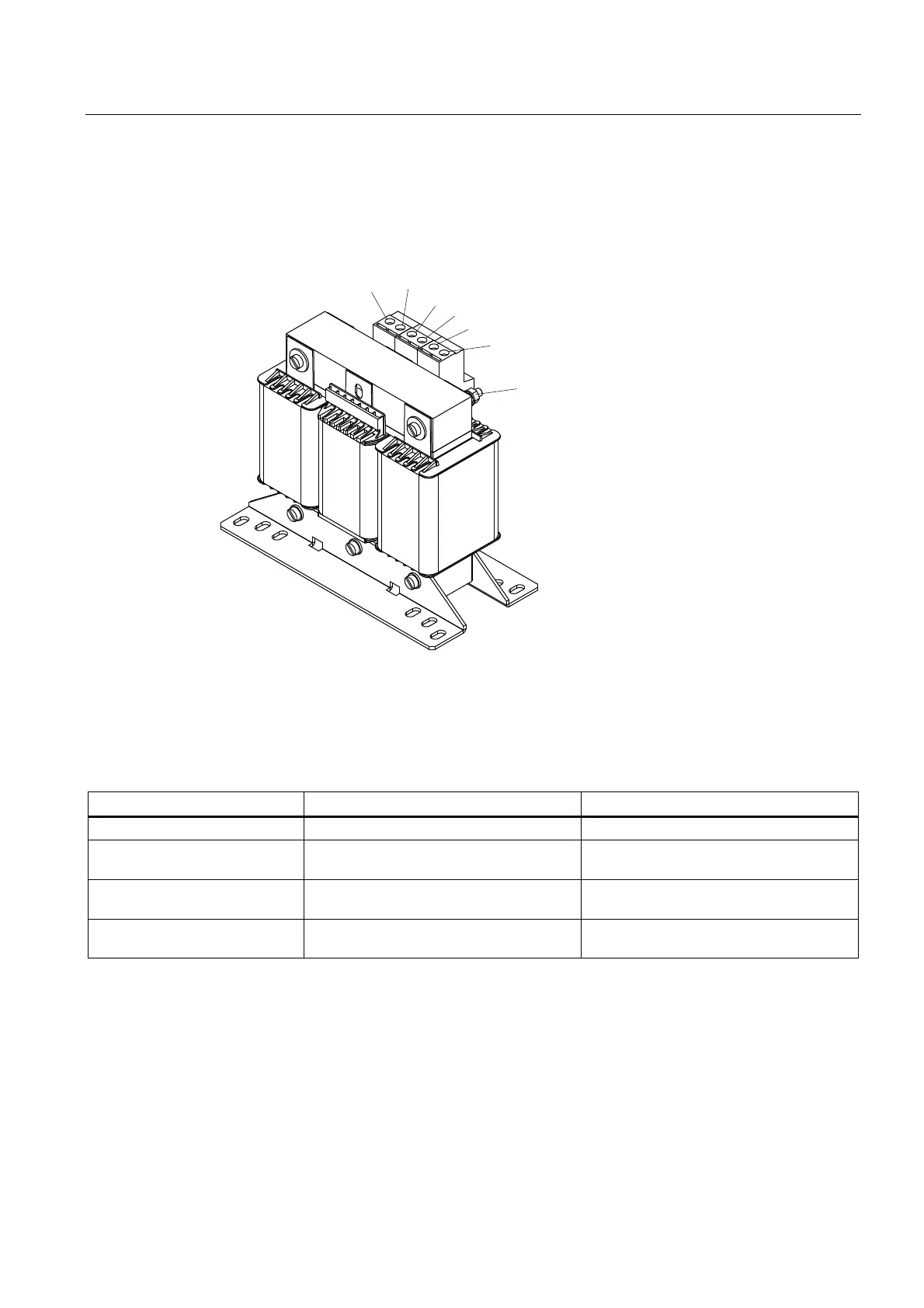

Figure 2-6 Line reactor for S120 Combi (example for 16 kW infeed)
2.7.3.2 Line/load connection
Table 2- 5 Connection of line reactors
Order number 6SL3100-0EE21-6AA0 6SL3100-0EE22-0AA0
Power [kW] 16 20
Line connection 1U1, 1V1, 1W1 Screw terminal
1)
16 mm
2
1.5 - 1.8 Nm
Screw terminal
1)
16 mm
2
1.5 - 1.8 Nm
Load connection 1U2, 1V2, 1W2 Screw terminal
1)
16 mm
2
1.5 - 1.8 Nm
Screw terminal
1)
16 mm
2
1.5 - 1.8 Nm
PE connection Grounding studs for M6 ring cable lugs
according to DIN 46234
Grounding studs for M6 ring cable lugs
according to DIN 46234
1) see Chapter "Control cabinet installation and EMC / connection system" - screw terminal 7
