S120 Combi Power Modules
3.7 Installation
SINAMICS S120 Combi
86 Manual, Edition 07/2012, 6SL3097-4AV00-0BP3
3.7.2 Installing an S120 Combi Power Module
An S120 Combi Power Module is installed after the reinforcement plates have been installed.
Installation steps
1. Mount the M6 self-clinching flush head studs
2. Locate the S120 Combi Power Module
3. Initially tighten the M6 nuts by hand (0.5 Nm).
4. Tighten the nuts in the specific sequence (1 to 4) with 10 Nm
0RXQWLQJSDQHO
0VHOIFOLQFKLQJIOXVKKHDG
VWXGV
,QVWDOODWLRQFXWRXWIRUDQ
H[WHUQDOIDQXQLW
:DVKHU
0QXW

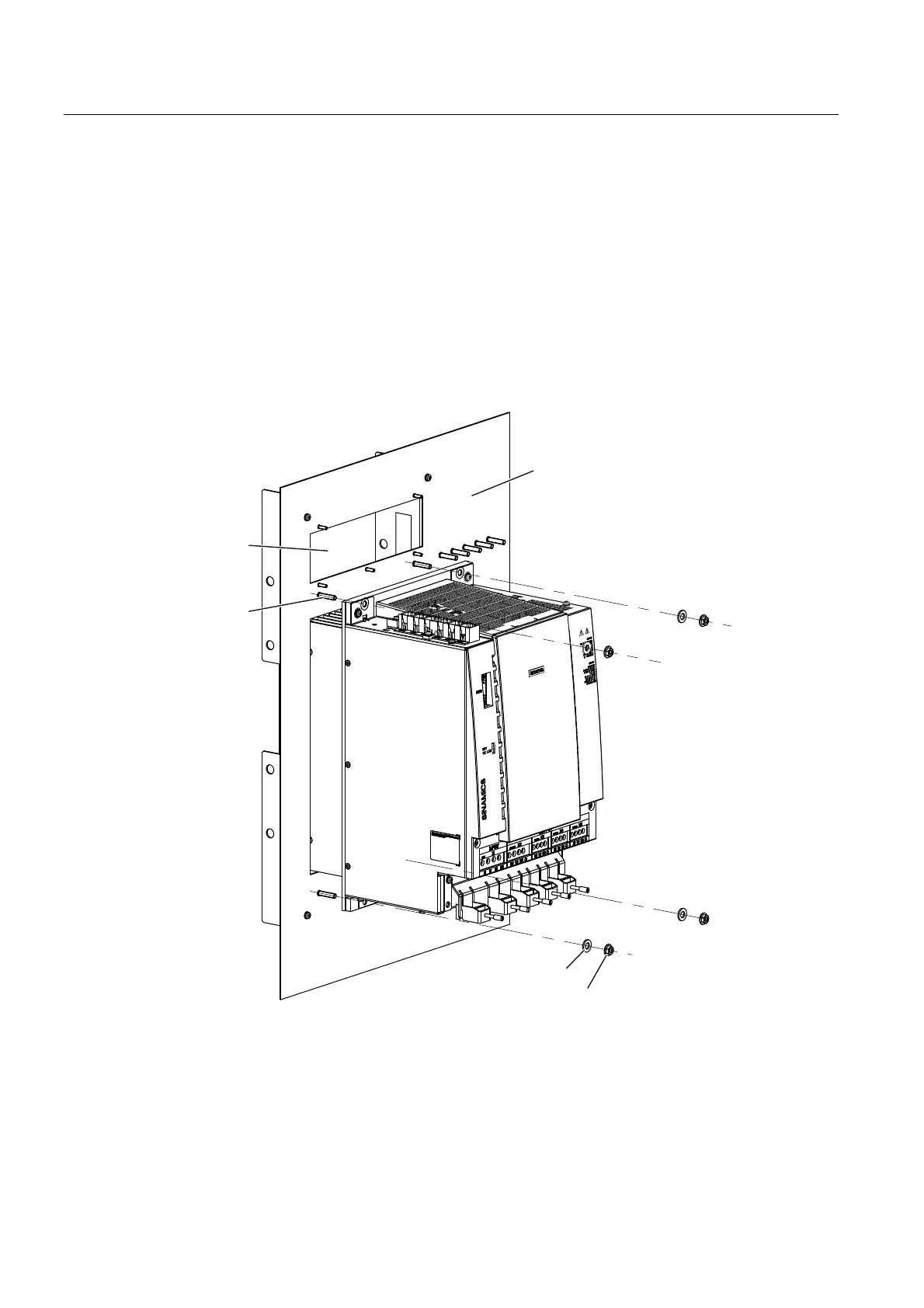

Figure 3-16 Installing an S120 Combi Power Module
