S120 Combi Power Modules
3.6 Dimension drawings
SINAMICS S120 Combi
Manual, Edition 07/2012, 6SL3097-4AV00-0BP3
83
Cause and rectification of faults
The following reference material contains information about the cause of faults and how they
are rectified:
SINAMICS S120 Function Manual Drive Functions (FH1)
SINUMERIK 828D Turning and Milling Commissioning Manual
3.6 Dimension drawings
[ºº

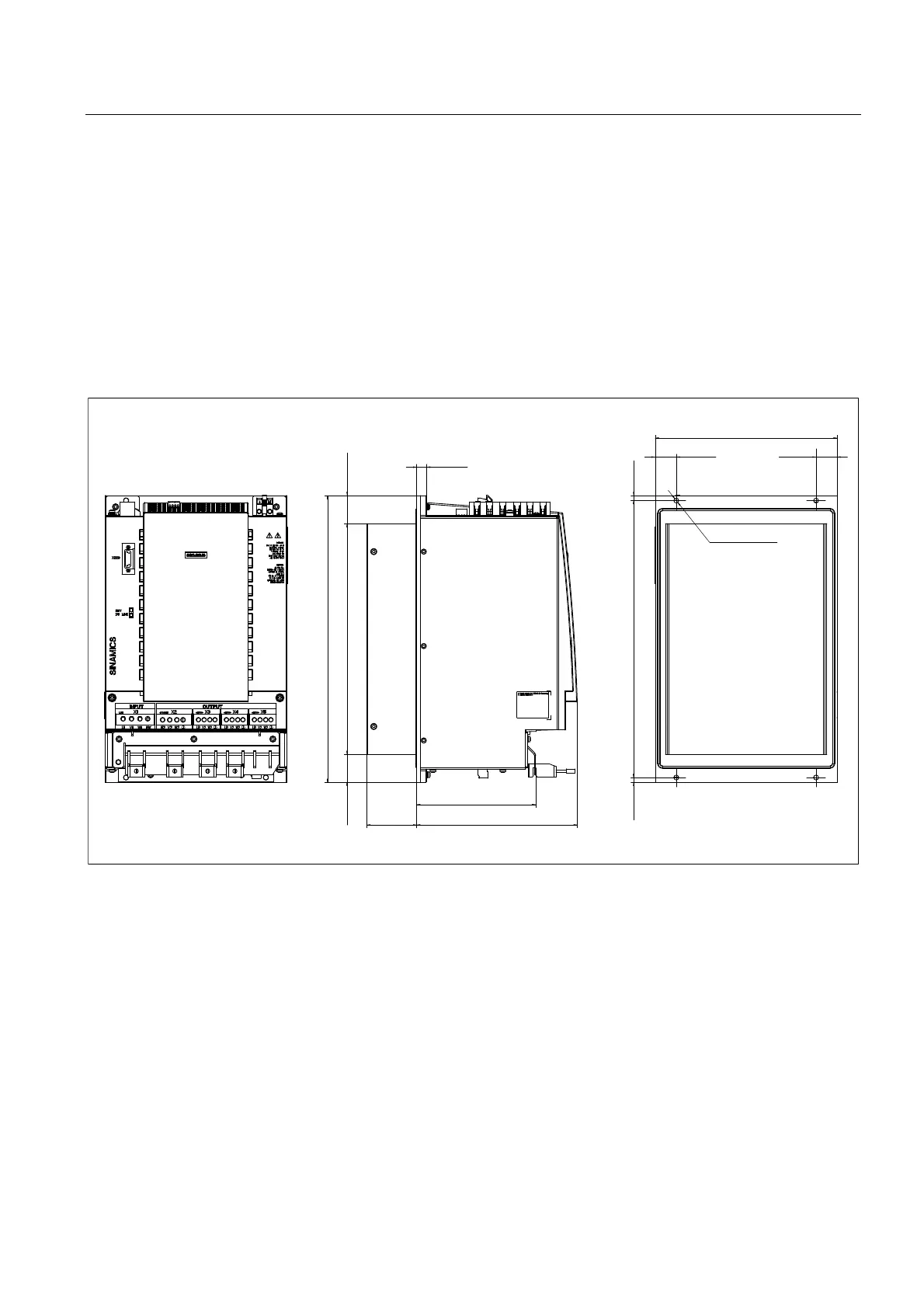

Figure 3-13 Dimension drawing of the S120 Combi 3 axes Power Module, all dimensions in mm and (inches)
