Encoder system connection
11.2 Sensor Module External SME20
SINAMICS S120 Combi
216 Manual, Edition 07/2012, 6SL3097-4AV00-0BP3
11.2.3.3 DRIVE-CLiQ interface

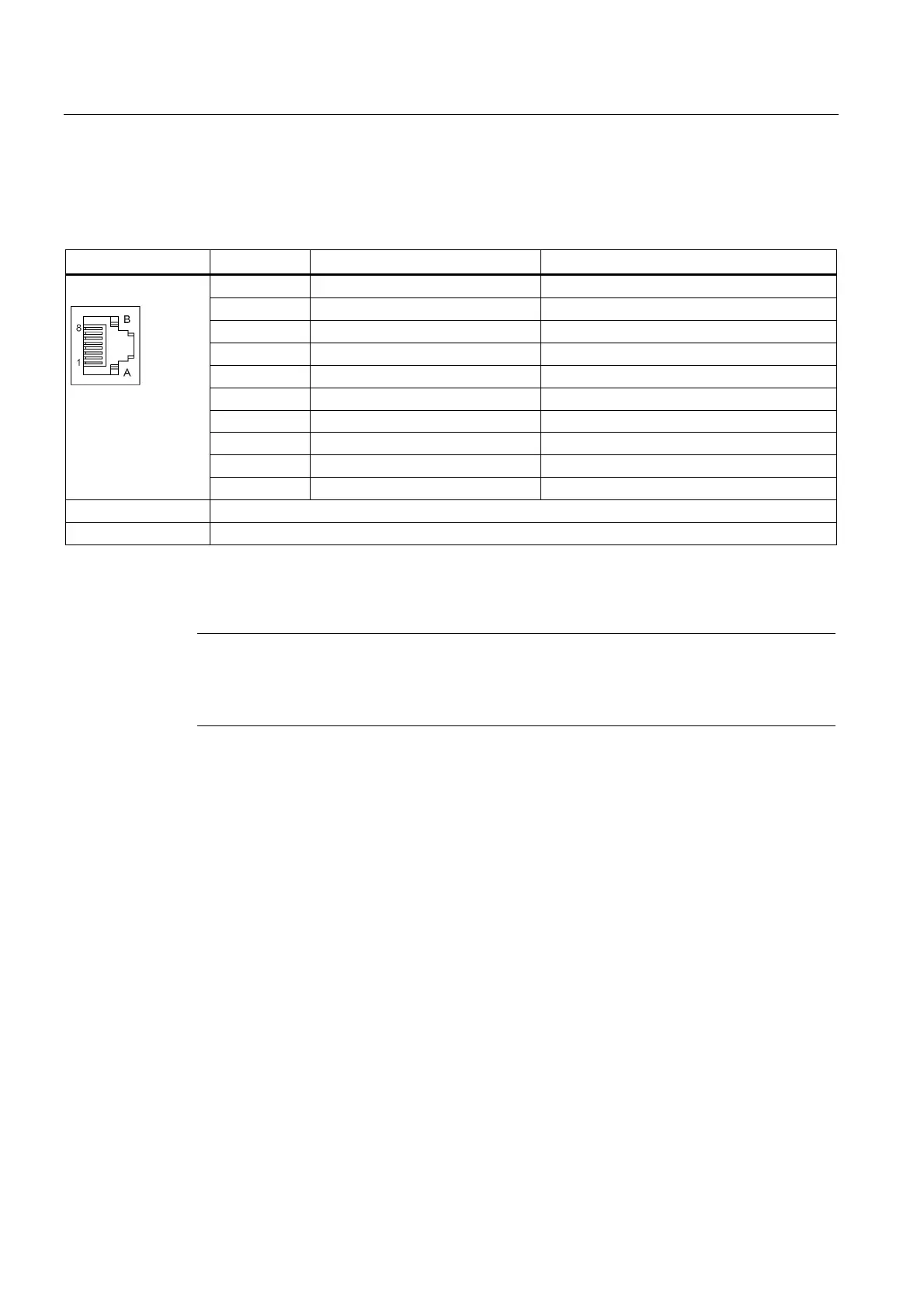

Table 11- 6 DRIVE-CLiQ interface
Pin Signal name Technical specifications
1 TXP Transmit data +
2 TXN Transmit data -
3 RXP Receive data +
4 Reserved, do not use
5 Reserved, do not use
6 RXN Receive data -
7 Reserved, do not use
8 Reserved, do not use
A + (24 V) Power supply
B M (0 V) Electronics ground
Connector type RJ45 socket
Current consumption max. 0.25 A
The blanking cover for the DRIVE-CLiQ port is included in the scope of delivery.
Blanking covers (50 pieces) Order number: 6SL3066-4CA00-0AA0
Note
Only MOTION-CONNECT DRIVE-CLiQ cables may be used for connections. The maximum
cable length is 100 m for MOTION-CONNECT 500, and 75 m for MOTION-CONNECT
800PLUS cables.
