Siemens SINAMICS S120 Combi User Manual

Line-side power components
2.8 Line connection versions
SINAMICS S120 Combi
46 Manual, Edition 07/2012, 6SL3097-4AV00-0BP3
Note
Line connection of motors
In combination with the drive system, the motors are generally approved for operation on
TN and TT line supplies with grounded neutral point and on IT line supplies.
In operation on IT line supplies, the occurrence of a first fault between an active part and
ground must be signaled by a monitoring device. In accordance with IEC 60364-4-41, it is
recommended that the first fault be eliminated as quickly as is practically possible in order
to minimize the temporary overload of the motor insulation.
For all other line supplies, except TN and TT line supplies with grounded neutral point
and IT line supplies, such as line supplies with a grounded phase conductor, an isolation
transformer with grounded neutral point (secondary side) must be connected between the
line supply and the drive system in order to protect the motor insulation from a continuous
and inadmissibly high stress level.
2.8.2 Operating line connection components on the line supply
The SINAMICS S120 Combi drive system is designed to be directly connected to TN, TT,
and IT line supplies with a rated voltage of 3-ph. 380 V to 3-ph. 480 V AC.
2WKHU
ORDGV
/LQHUHDFWRU
/LQHFRQWDFWRU
RSWLRQDO
)XVHV
/LQHILOWHU
RSWLRQDO
6&RPEL
8 9 :
/
3(
/
/

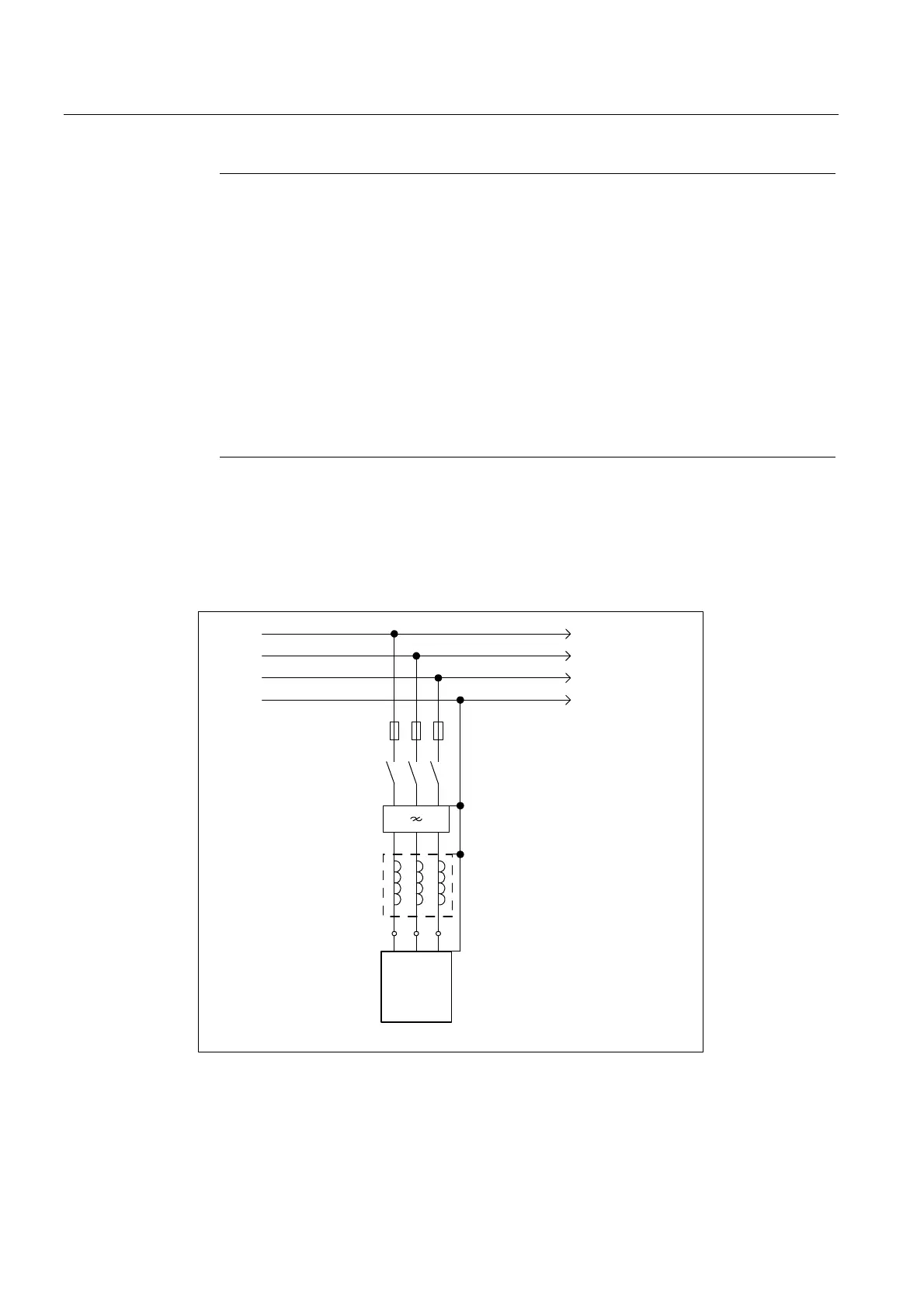

Figure 2-10 Direct operation on the line supply
