Siemens SINAMICS S120 Combi User Manual

S120 Combi Power Modules
3.3 Interface description
SINAMICS S120 Combi
Manual, Edition 07/2012, 6SL3097-4AV00-0BP3
69

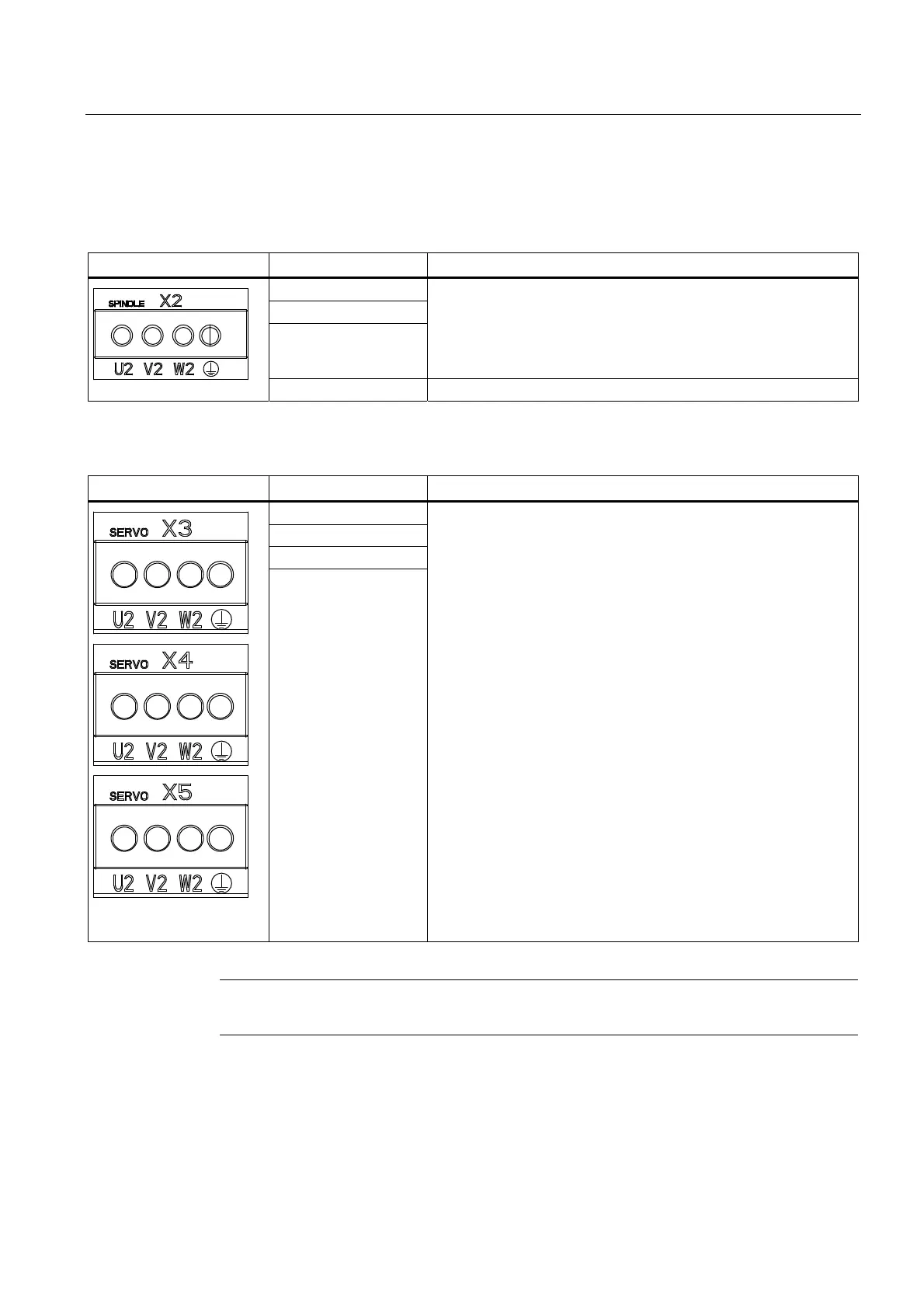

3.3.3 X2-X5 motor connection
Table 3- 5 X2 spindle (18 A, 24 A and 30 A Motor Modules)
Terminal Technical specifications
U2
V2
W2
Motor connection
Max. connectable cross-section: 10 mm
2
Type: Screw terminal 6 (see Chapter "Control cabinet installation
and EMC / connection system")
Tightening torque: 1.5 - 1.8 Nm
PE connection
Table 3- 6 X3 to X5 feedrate (5 A, 9 A and 12 A Motor Modules)
Terminal Technical specifications
U2
V2
W2
(only for 4 axes Power
Module)
PE connection
Motor connection
Max. connectable cross-section: 6 mm
2
Type: Screw terminal 5 (see Chapter "Control cabinet installation
and EMC / connection system")
Tightening torque: 1.5 - 1.8 Nm
Note
The total length of the power cables must not exceed 175 m.
