Siemens SINAMICS S120 Combi User Manual

Service and maintenance
14.3 Replacing the fan
SINAMICS S120 Combi
Manual, Edition 07/2012, 6SL3097-4AV00-0BP3
273
14.3.3 Replacing the fan on the Motor Modules Booksize Compact

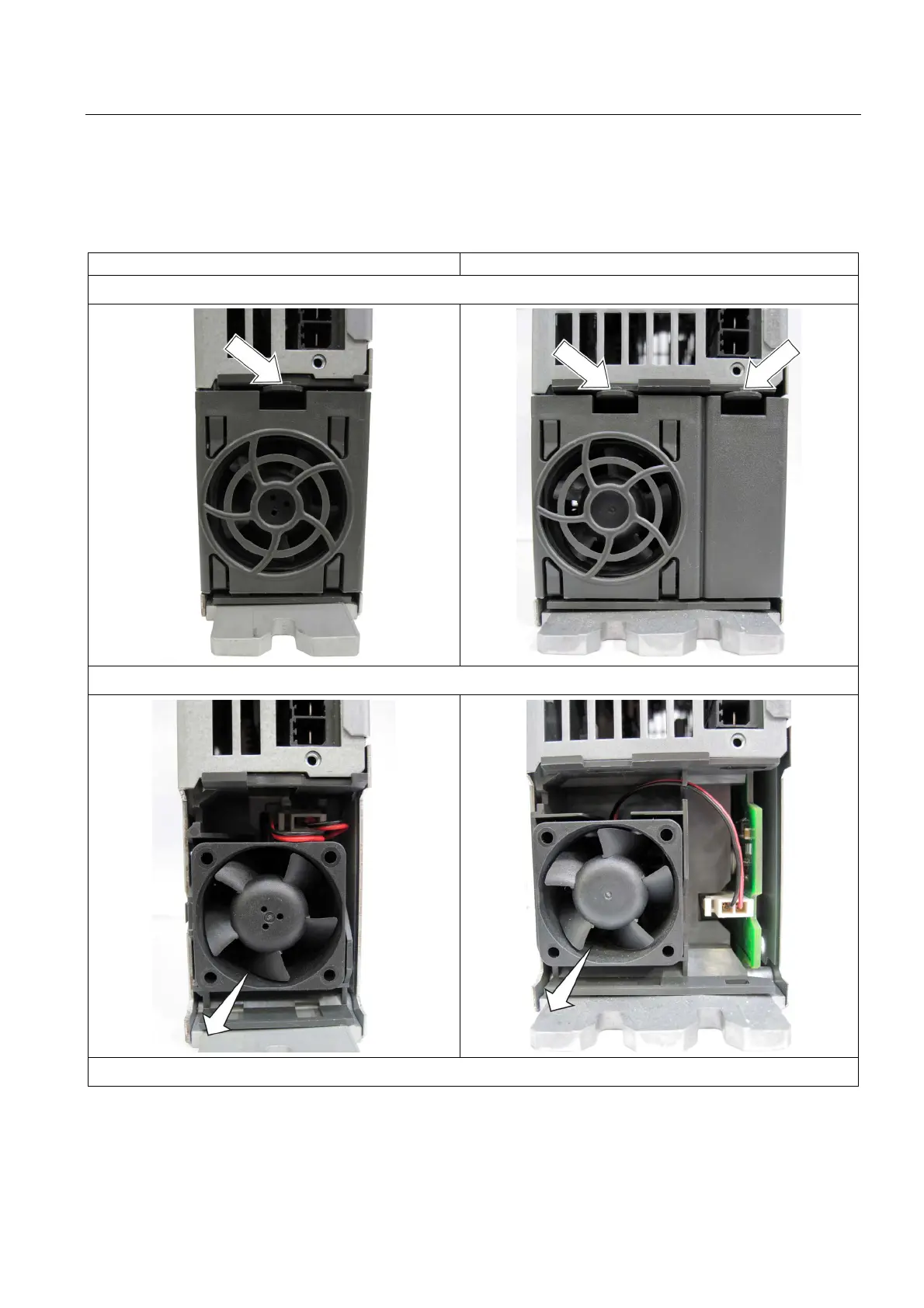

Table 14- 2 Removing the fan
Size 50 mm Size 75 mm
• Removing the Motor Module from the drive line-up
• Remove the fan cover at the lower side of the Motor Module by releasing the snap hook
• Carefully remove the fan
