12.2 DRIVE-CLiQ coupling
SINAMICS S120 Combi
Manual, Edition 07/2012, 6SL3097-4AV00-0BP3
233
12.2 DRIVE-CLiQ coupling
12.2.1 Description
The DRIVE-CLiQ coupling is used to connect two DRIVE-CLiQ cables in accordance with
degree of protection IP67 acc. to EN 60529.
In addition to the data lines, the power supply contacts of DRIVE-CLiQ are also routed via
the coupling.
You can find information on the permissible cable length in the chapter "DRIVE-CLiQ signal
cables".
12.2.2 Safety information
Note
Only cables from Siemens may be used for DRIVE-CLiQ connections.
12.2.3 Interface description
12.2.3.1 Overview

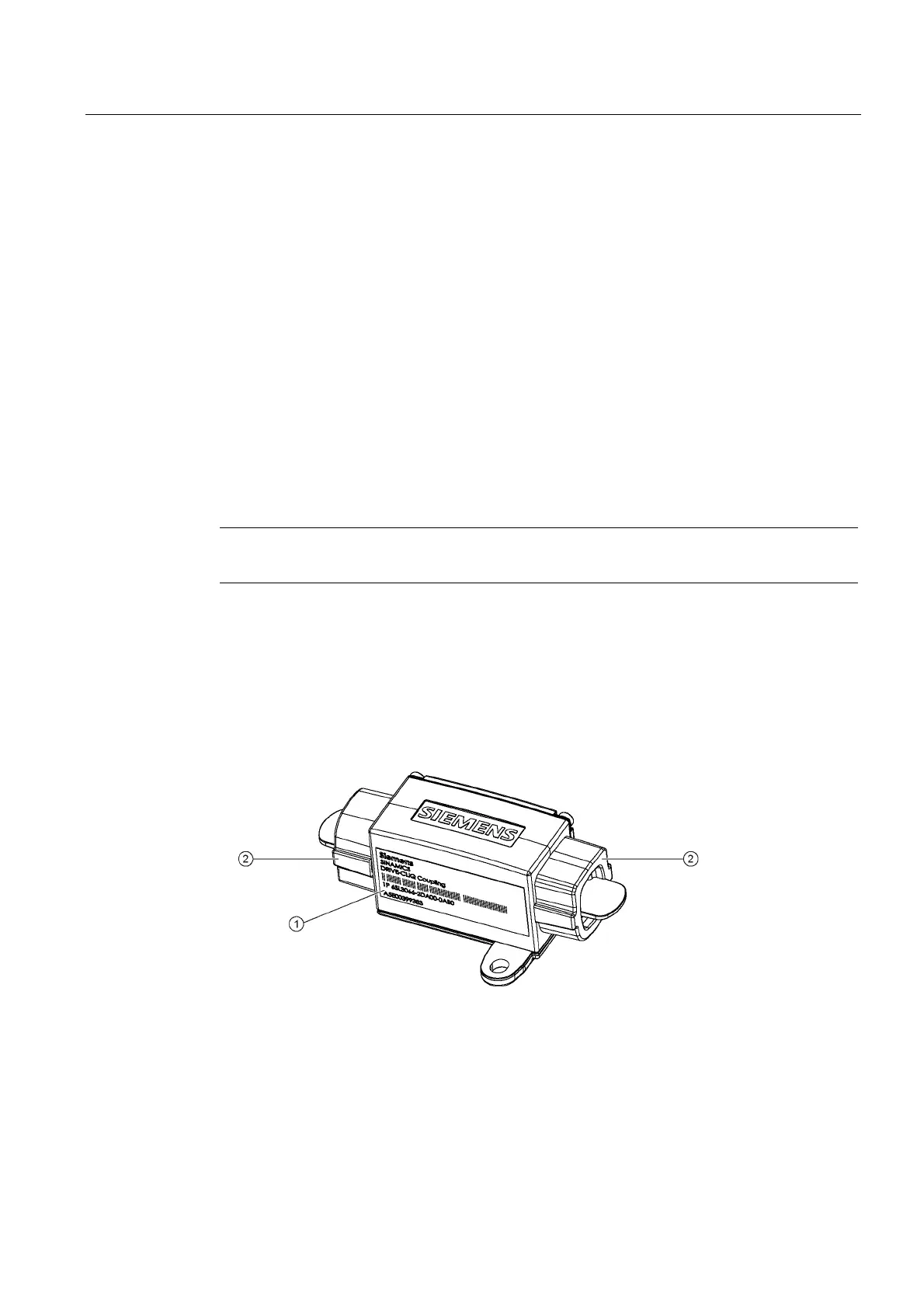

① Rating plate
② Protective cap, Yamaichi, order number: Y-ConAS-24-S
Figure 12-5 Interface overview, DRIVE-CLiQ coupling
