Siemens SINAMICS S120 Combi - Replacing the Fan on the Control Supply Module

Service and maintenance
14.3 Replacing the fan
SINAMICS S120 Combi
Manual, Edition 07/2012, 6SL3097-4AV00-0BP3
275
14.3.4 Replacing the fan on the Control Supply Module
Replacement fan (order number: 6SL3160-0AB00-0AA0)
WARNING
This component has more than one supply circuit!

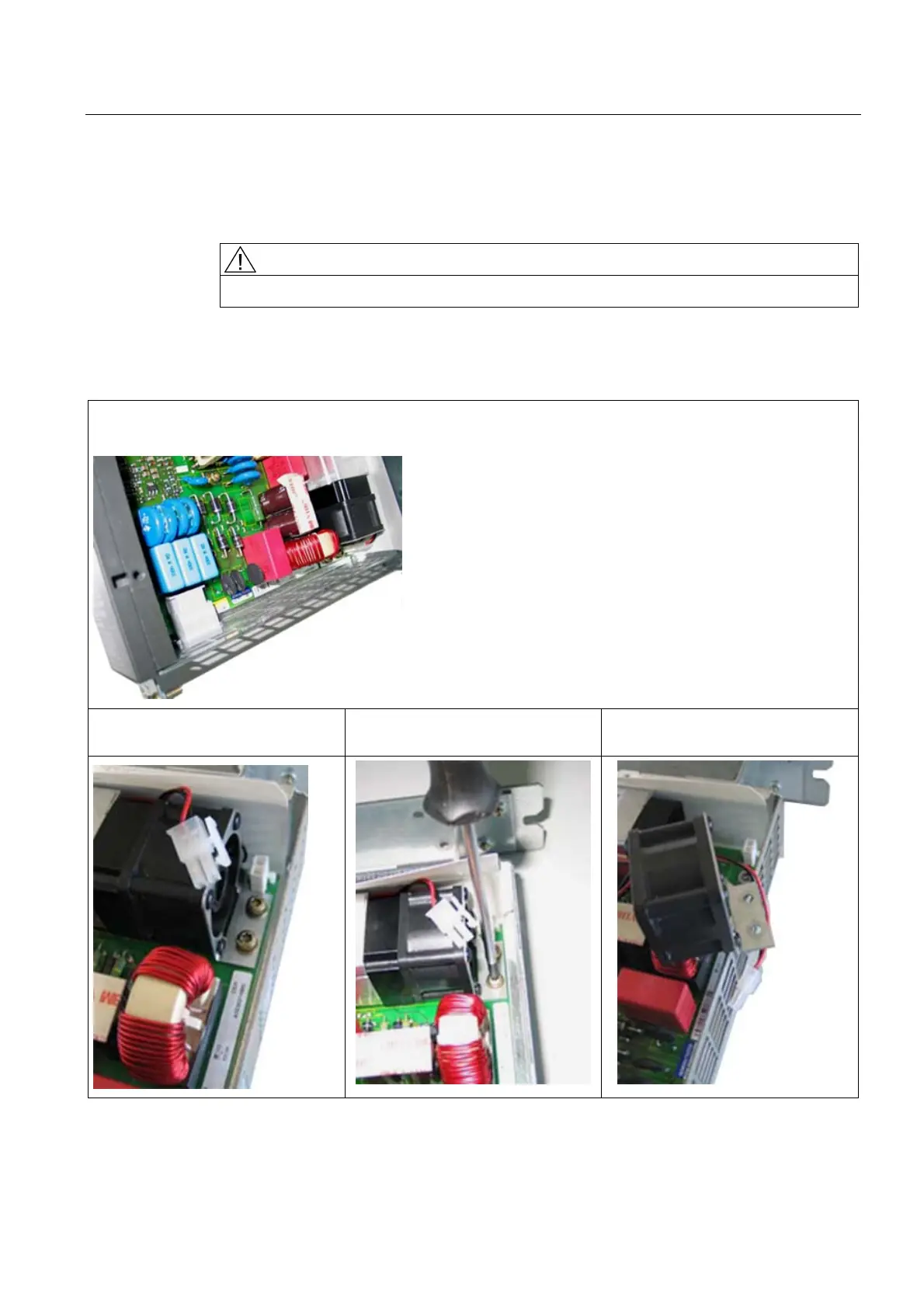

Table 14- 4 Removing the fan
• Remove the component from the drive line-up.
• Release the 6 screws (Torx T10) of the enclosure cover and open the component
• Unlatch and pull out the plug
connector
• Release the 2 screws on the fan
(Torx T20)
• Remove the fan
