10.2 DRIVE-CLiQ Hub Module DMC20
SINAMICS S120 Combi
196 Manual, Edition 07/2012, 6SL3097-4AV00-0BP3
10.2.4 Dimension drawing










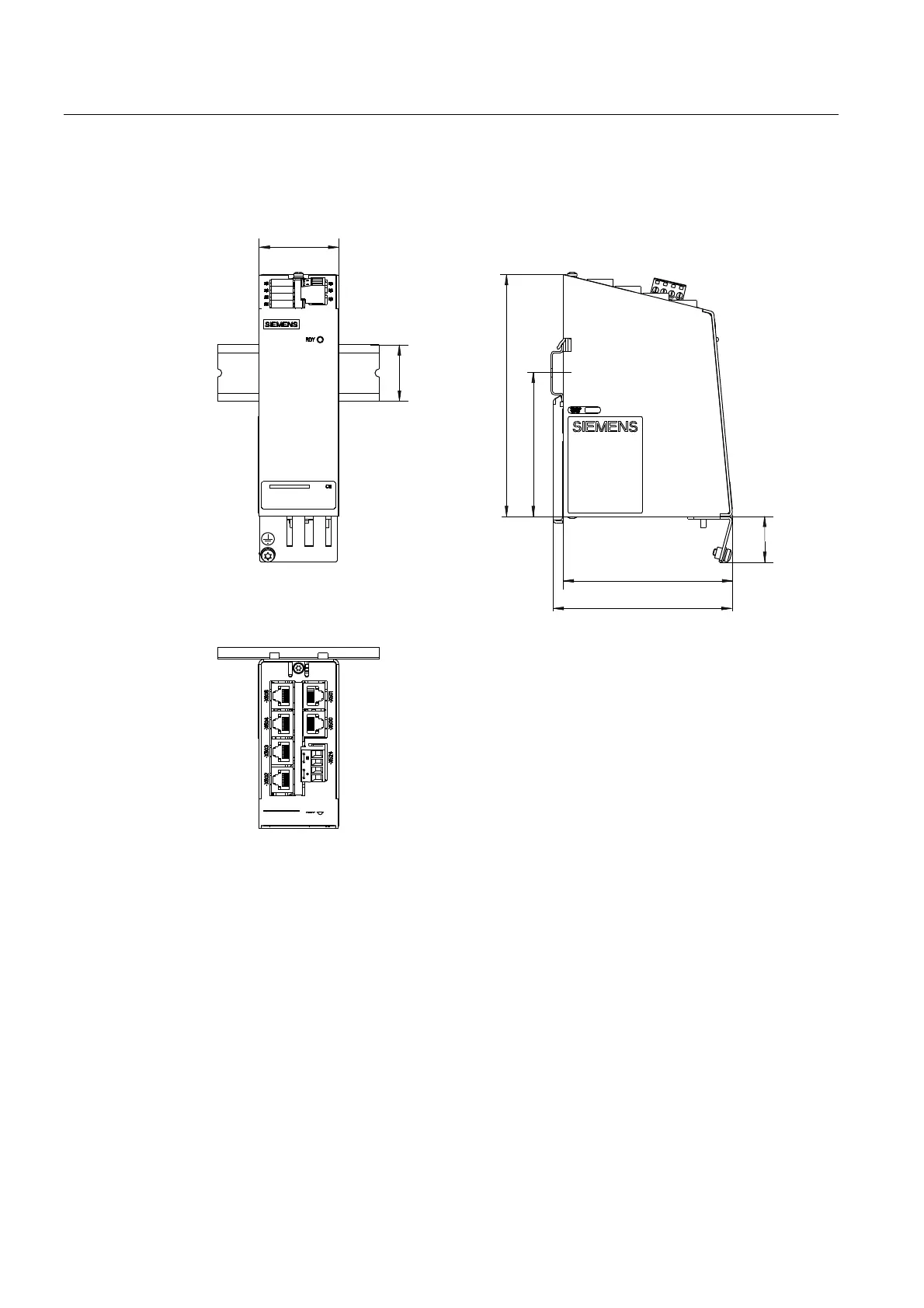

Figure 10-7 Dimension drawing of the DRIVE-CLiQ Hub Module DMC20, all data in mm and (inches)
10.2.5 Installation
Installation
1. Tilt the component backwards slightly and attach it to the DIN rail using the hook.
2. Push the component towards the DIN rail until you hear the mounting slide at the rear
latch into position.
3. You can now move the component to the left or right along the DIN rail, until it reaches its
final position.
