Encoder system connection
11.1 Sensor Module Cabinet-Mounted SMC20
SINAMICS S120 Combi
Manual, Edition 07/2012, 6SL3097-4AV00-0BP3
211
11.1.4 Dimension drawing

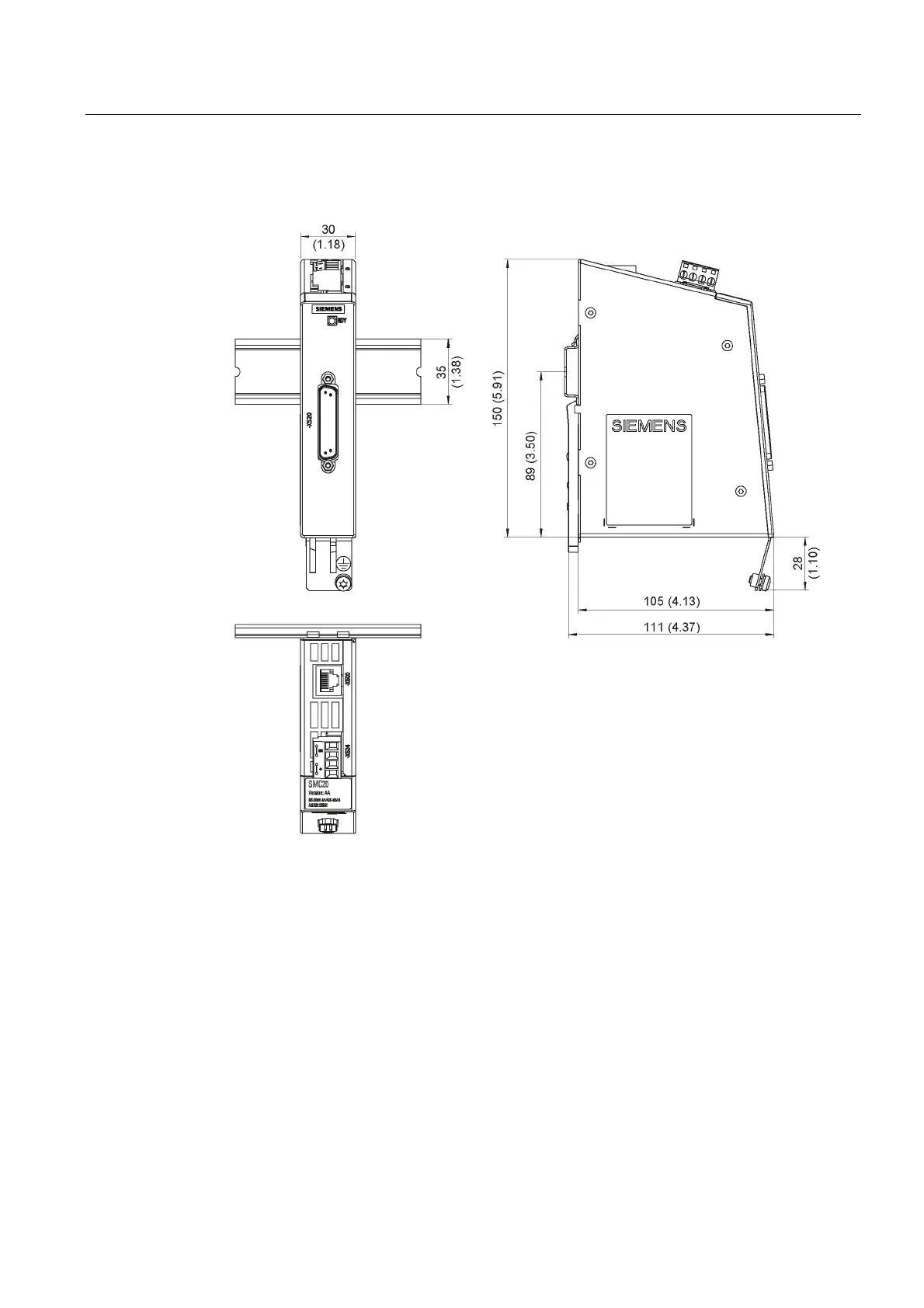

Figure 11-2 Dimension drawing of the Sensor Module Cabinet SMC20, all data in mm and (inches)
