Line-side power components
2.6 Line filters
SINAMICS S120 Combi
38 Manual, Edition 07/2012, 6SL3097-4AV00-0BP3
2.6.3.2 Line/load connection
Table 2- 3 Line filter connection
Order number 6SL3000-0BE21-6DAx
Rated infeed power 16 kW and 20 kW
Line connection L1, L2, L3 Screw terminal 10 mm
2 1)
1.5 - 1.8 Nm
Load connection L1', L2', L3'
(U, V, W)
Screw terminal 10 mm
2 1)
1.5 - 1.8 Nm
PE connection Grounding bolt for M5 ring cable lug according to DIN 46234
6 Nm
1) see Chapter "Control cabinet installation and EMC / connection system" - screw terminal 6
Note
The line filter 6SL3000-0BE21-6DAx can be used for all S120 Combi Power Modules.

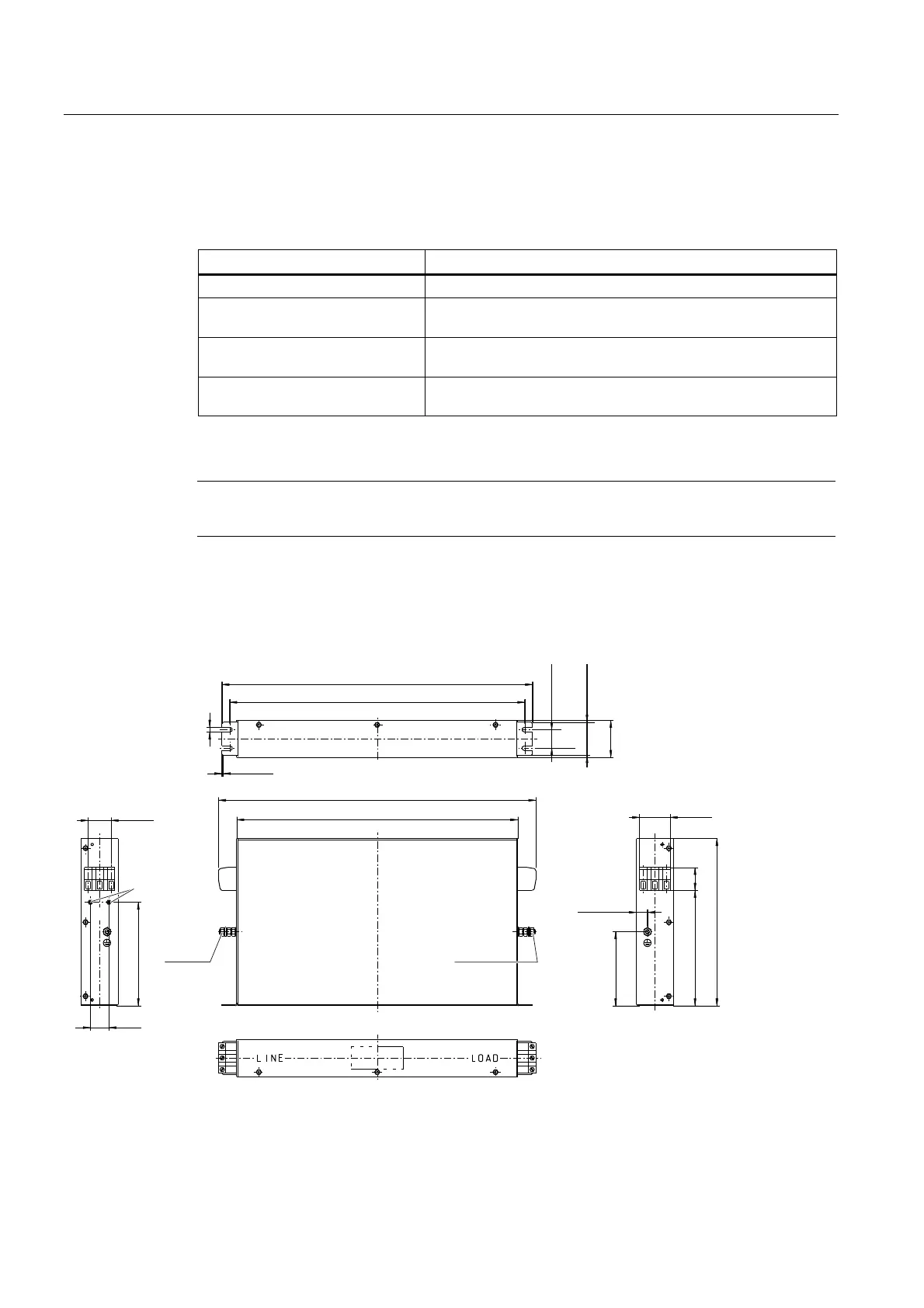

2.6.4 Dimension drawing
3(
0[
3(
0[
0[
[r
s
s
s
s
s
s
Figure 2-5 Dimension drawing of the line filter, all dimensions in mm and (inches)
