Additional system components
10.3 DRIVE-CLiQ Hub Module External DME20
SINAMICS S120 Combi
200 Manual, Edition 07/2012, 6SL3097-4AV00-0BP3

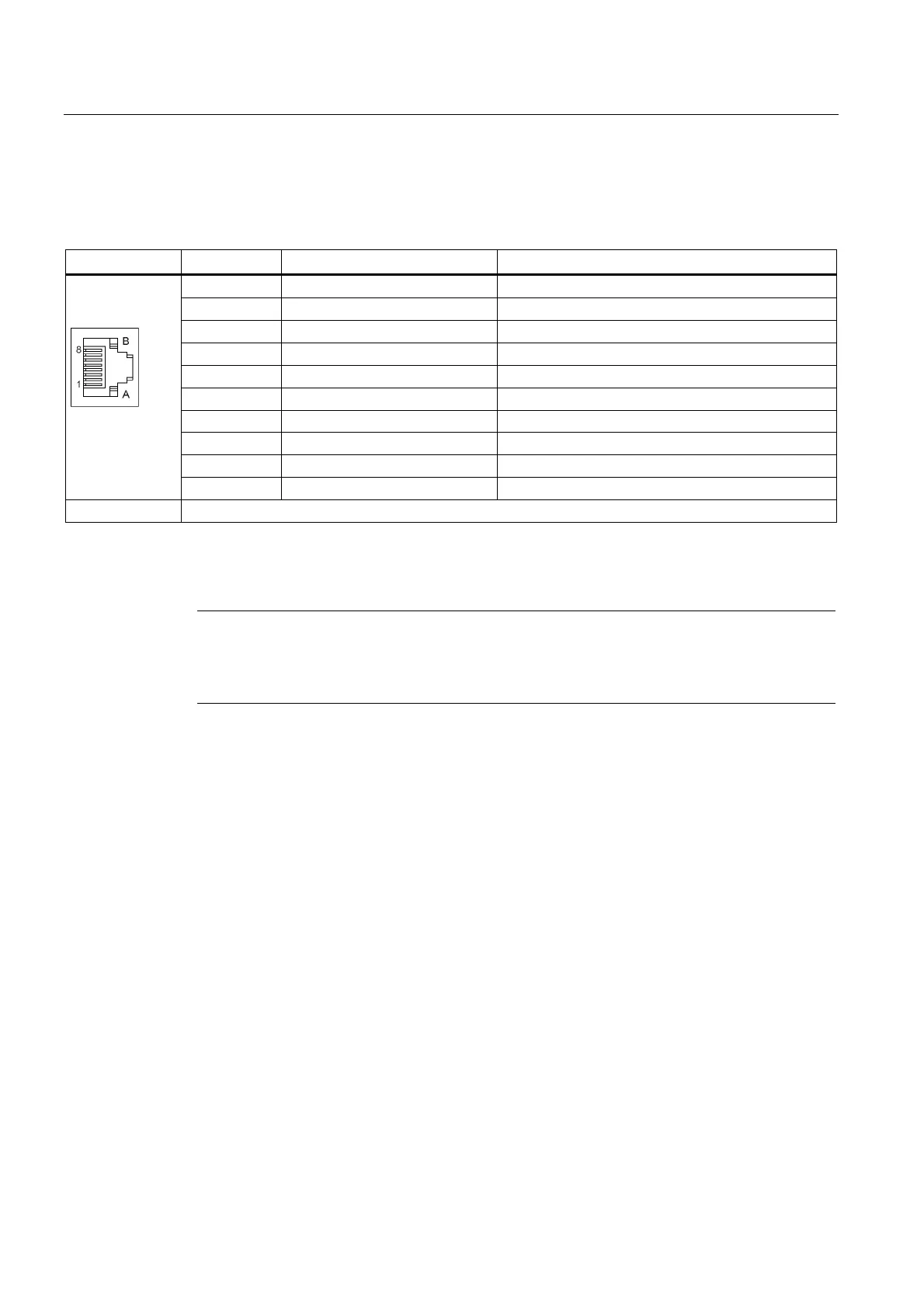

10.3.3.2 X500-X505 DRIVE-CLiQ interfaces
Table 10- 20 X500-X505 DRIVE-CLiQ interfaces
Pin Signal name Technical specifications
1 TXP Transmit data +
2 TXN Transmit data -
3 RXP Receive data +
4 Reserved, do not use
5 Reserved, do not use
6 RXN Receive data -
7 Reserved, do not use
8 Reserved, do not use
A + (24 V) Power supply
B M (0 V) Electronics ground
Connector type RJ45 socket
The blanking covers for the DRIVE-CLiQ interfaces are included in the scope of delivery.
Blanking covers (50 pieces) Order number: 6SL3066-4CA00-0AA0
Note
Only MOTION-CONNECT DRIVE-CLiQ cables may be used to establish connections.
The maximum length of MOTION-CONNECT 500 is 100 m and for MOTION-CONNECT
800PLUS cables, 75 m.
