Encoder system connection
11.1 Sensor Module Cabinet-Mounted SMC20
SINAMICS S120 Combi
Manual, Edition 07/2012, 6SL3097-4AV00-0BP3
207
11.1.3.2 X500 DRIVE-CLiQ interface

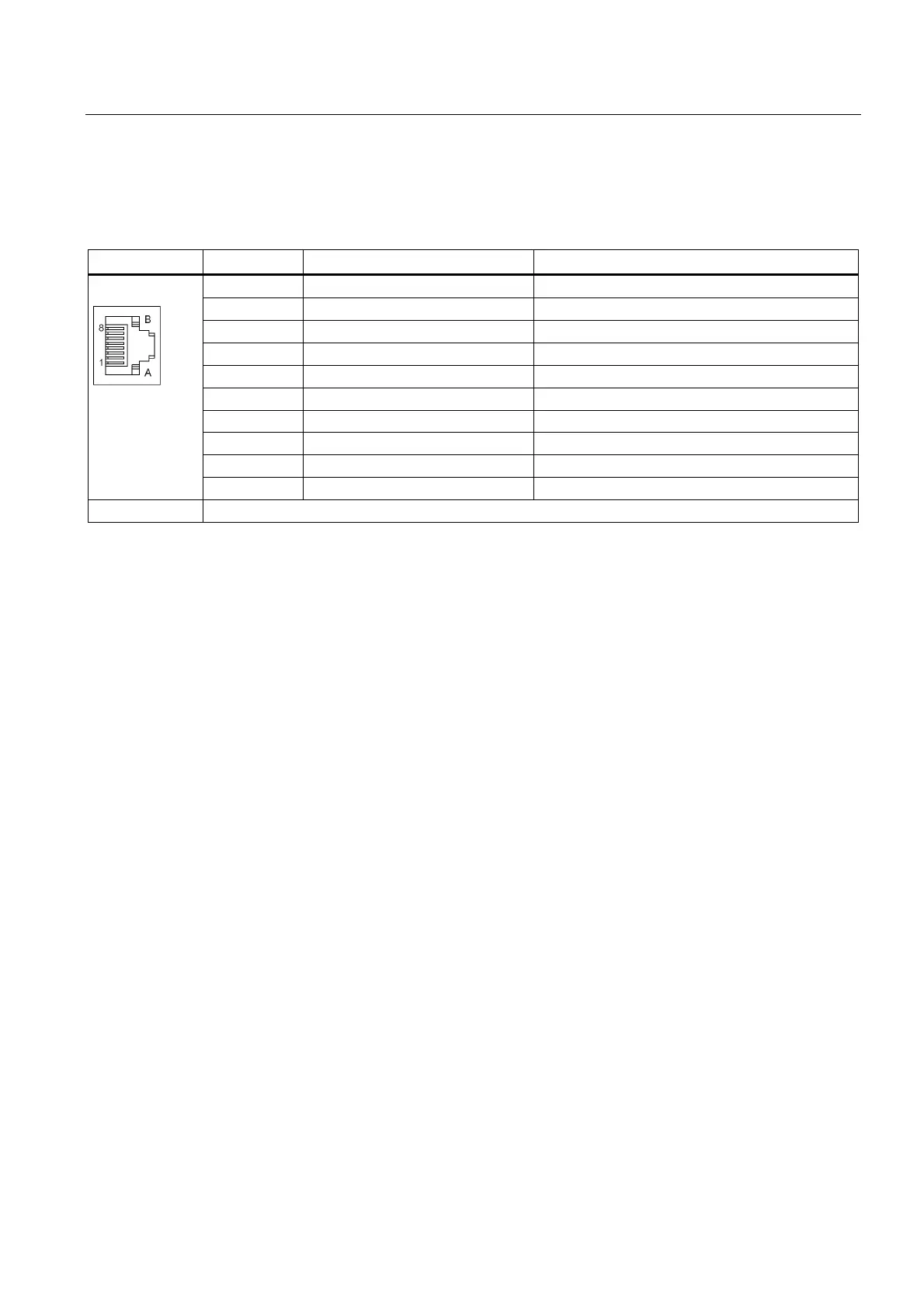

Table 11- 1 X500 DRIVE-CLiQ interface
Pin Signal name Technical specifications
1 TXP Transmit data +
2 TXN Transmit data -
3 RXP Receive data +
4 Reserved, do not use
5 Reserved, do not use
6 RXN Receive data -
7 Reserved, do not use
8 Reserved, do not use
A Reserved, do not use
B M (0 V) Electronics ground
Connector type RJ45 socket
The blanking cover for the DRIVE-CLiQ port is included in the scope of delivery.
Blanking covers (50 pieces) Order number: 6SL3066-4CA00-0AA0
