DC link components
8.1 Braking Module Booksize
SINAMICS S120 Combi
146 Manual, Edition 07/2012, 6SL3097-4AV00-0BP3
8.1.6 Dimension drawing

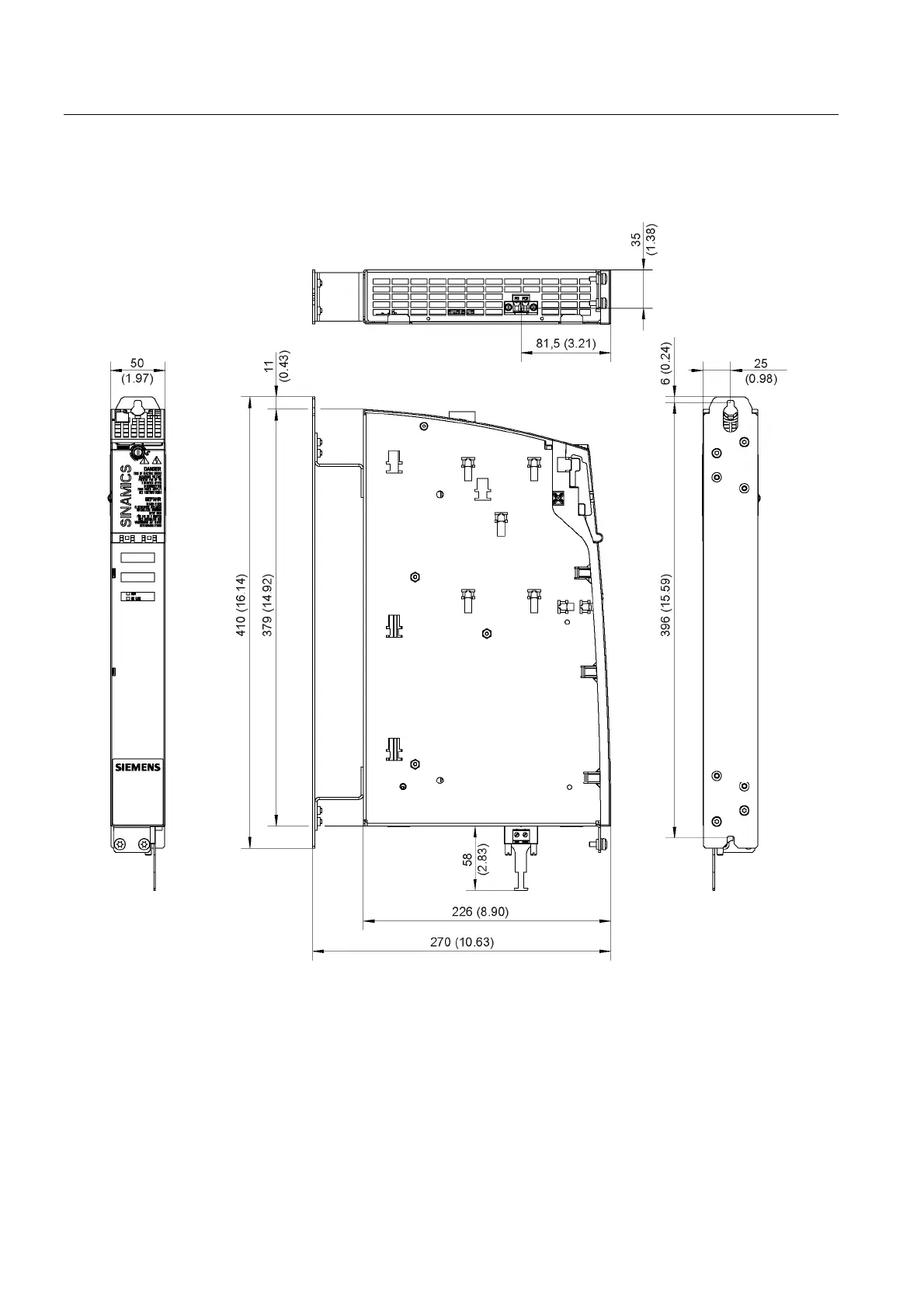

Figure 8-3 Dimension drawing of Braking Module, all dimensions in mm and (inches)
