Additional system components
10.1 Terminal Module TM54F
SINAMICS S120 Combi
Manual, Edition 07/2012, 6SL3097-4AV00-0BP3
179
10.1.3.8 X524 Electronics power supply

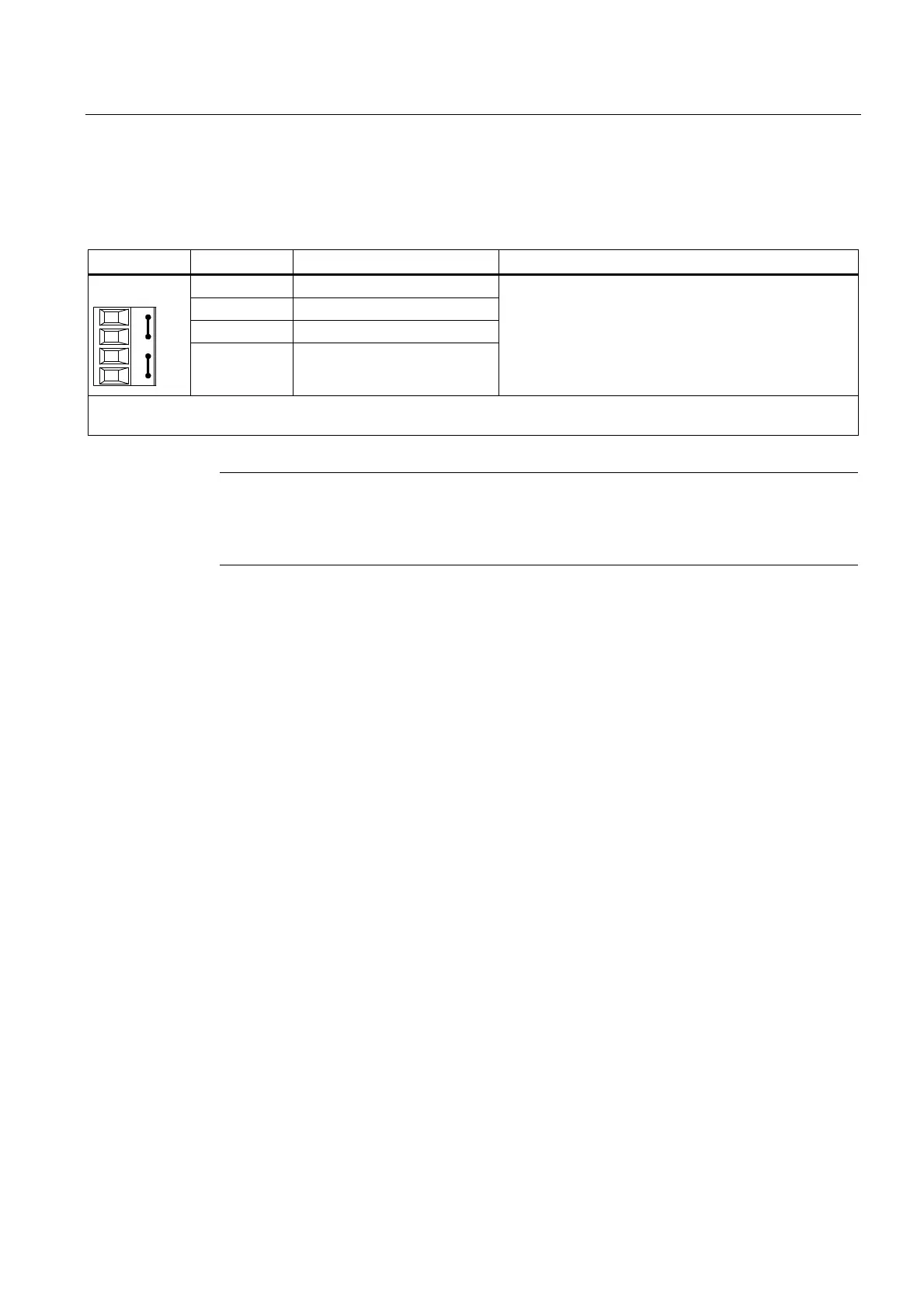

Table 10- 8 Terminals for the electronics power supply
Terminal Designation Technical specifications
+ Electronics power supply
+ Electronics power supply
M Electronics ground
+
M
M Electronics ground
Voltage: 24 V DC (20.4 V – 28.8 V)
Current consumption: Max. 0.7 A
Max. current via jumper in connector: 20 A
Max. connectable cross-section: 2.5 mm²
Type: Screw terminal 3 (see "Control cabinet installation and EMC/Connection system")
Note
The two "+" and "M" terminals are jumpered in the connector. This ensures that the supply
voltage is looped through.
The current consumption increases by the value for the DRIVE-CLiQ node.
