Commissioning SINAMICS drives
8.6 Commissioning using a drive wizard
CNC Part 1 (NCK, PLC, drive)
78 Commissioning Manual, 11/2006, 6FC5397-2AP10-2BA0

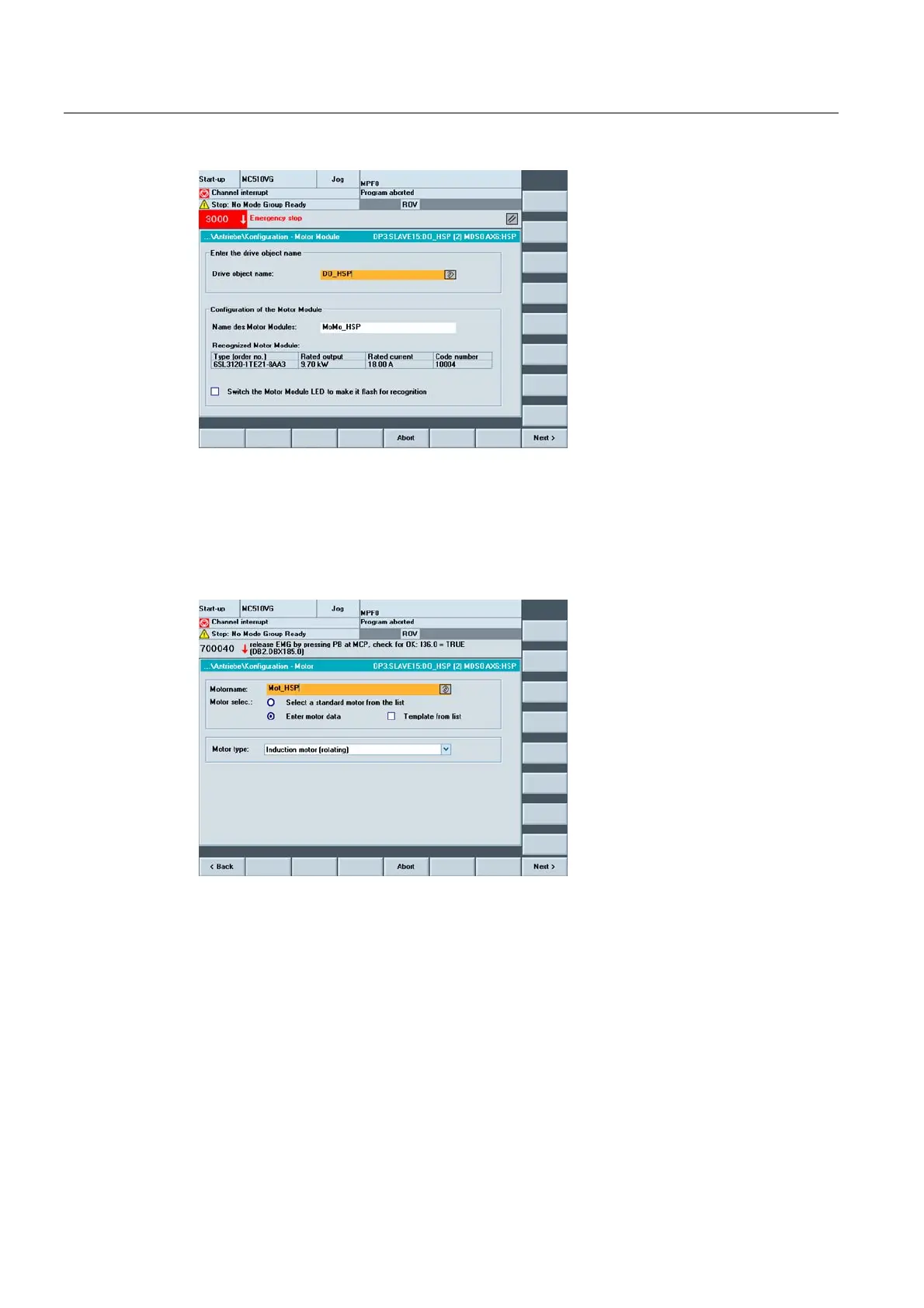

Figure 8-21 Menu "Drives > Configuration" "Motor module" (Change)
4. The drive wizard identifies the power section (Motor module). You can enter a name of
your own choice.
5. Follow the drive wizard with the horizontal softkey "Next >".
6. The following dialogs are displayed in succession for parameterization:
Figure 8-22 Menu "Drives > Configuration" "Motor with externally supplied motor) (Next 1)
7. Select "Enter motor data" and the motor type.
8. Press "Next >".
