Commissioning SINAMICS drives
8.6 Commissioning using a drive wizard
CNC Part 1 (NCK, PLC, drive)
Commissioning Manual, 11/2006, 6FC5397-2AP10-2BA0
79

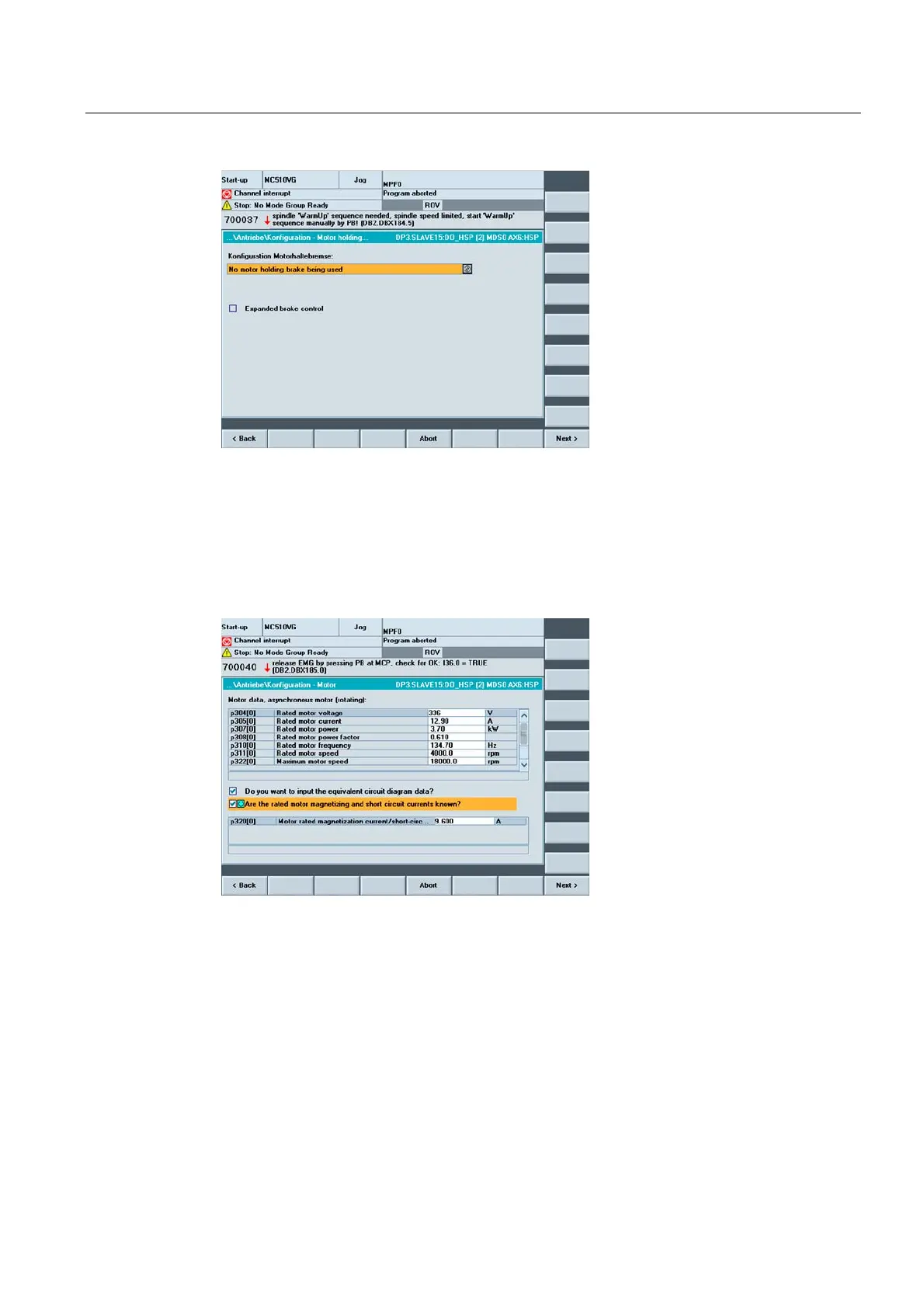

Figure 8-23 Menu "Drives > Configuration" "Motor holding brake" (Next 2)
9. You can select brake control in the dialog "Configuration motor holding brake".
If a connected brake is recognized during takeover of topology, the system will
automatically activate brake control and will by default display "Brake control after
sequence control" here.
10. Press "Next >".
Figure 8-24 Menu "Drives > Configuration" "Motor data 2" (Next 3)
11. Use the "Cursor Up/Cursor Down" keys to select the parameters that need to be changed
from the list of motor data.
12. Enter the motor data.
13. Press "Next >". If you have selected "Replacement circuit diagrams" and you select "Next
>", then you get to the following dialog:
