Commissioning SINAMICS drives
8.6 Commissioning using a drive wizard
CNC Part 1 (NCK, PLC, drive)
88 Commissioning Manual, 11/2006, 6FC5397-2AP10-2BA0

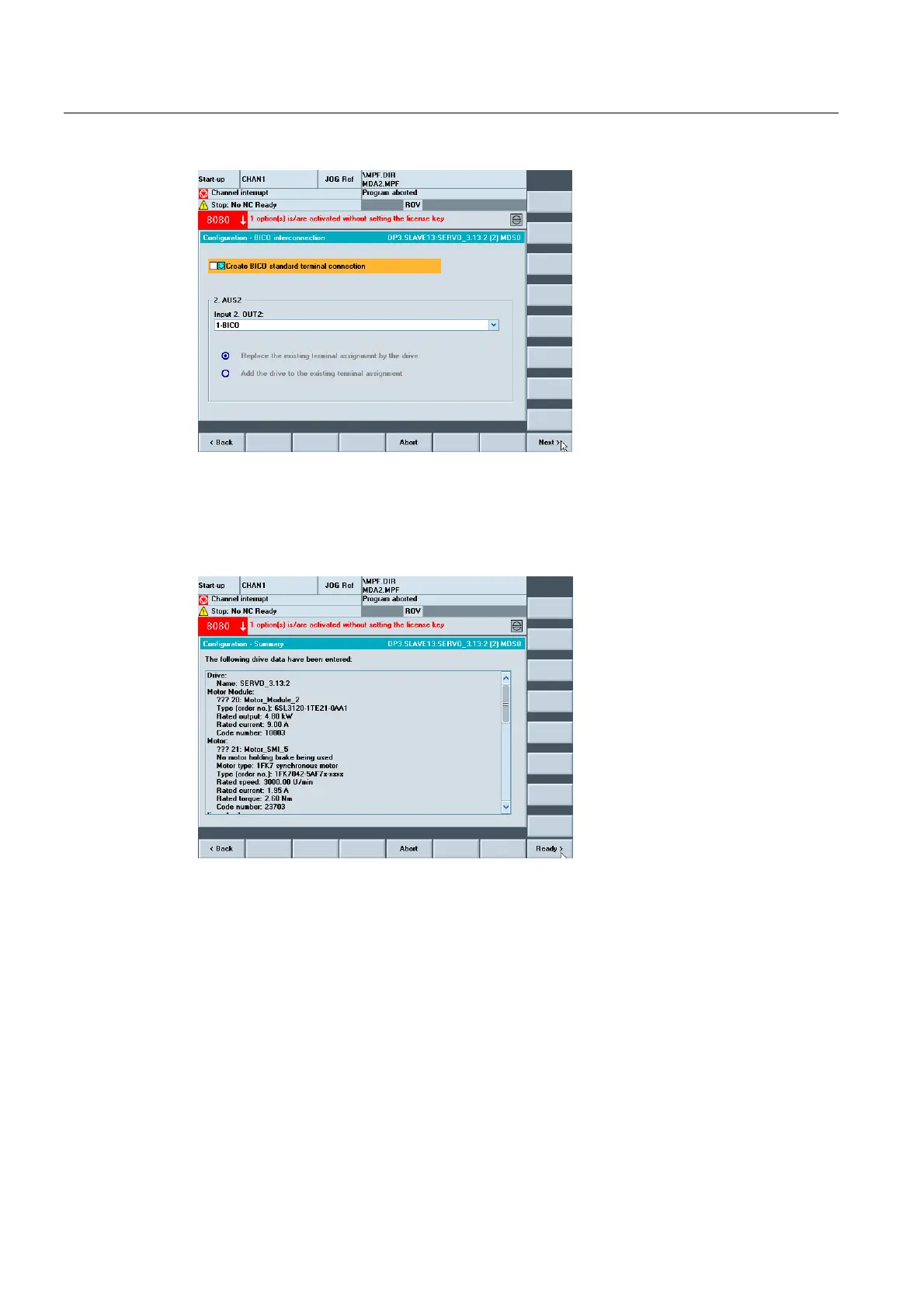

Figure 8-40 Menu "Drives > Configuration" "BICO connections (SMI)" (Next 6)
17. Select the assignment for the terminal for Input 2. AUS2 (see NCU 7x0 and NX1x
Terminal Assignment (Page
270) ).
18. Press "Next >".
Figure 8-41 Menu "Drives > Configuration" "Summary (SMI)" (Next 7)
19. The configuration of the drive module with SMI is completed. You can check the
configuration in the summary.
20. Press the "Finish >" softkey.
