Diagnostics operating area 01/2008
8.6 Interrogating the PLC status
8
© Siemens AG 2008 All rights reserved.
8-424 SINUMERIK 840Di sl/840D sl/840D Operating Manual HMI-Advanced (BAD) - 01/2008 Edition
Sequence of operations
Diagnostics
PLC
symbols

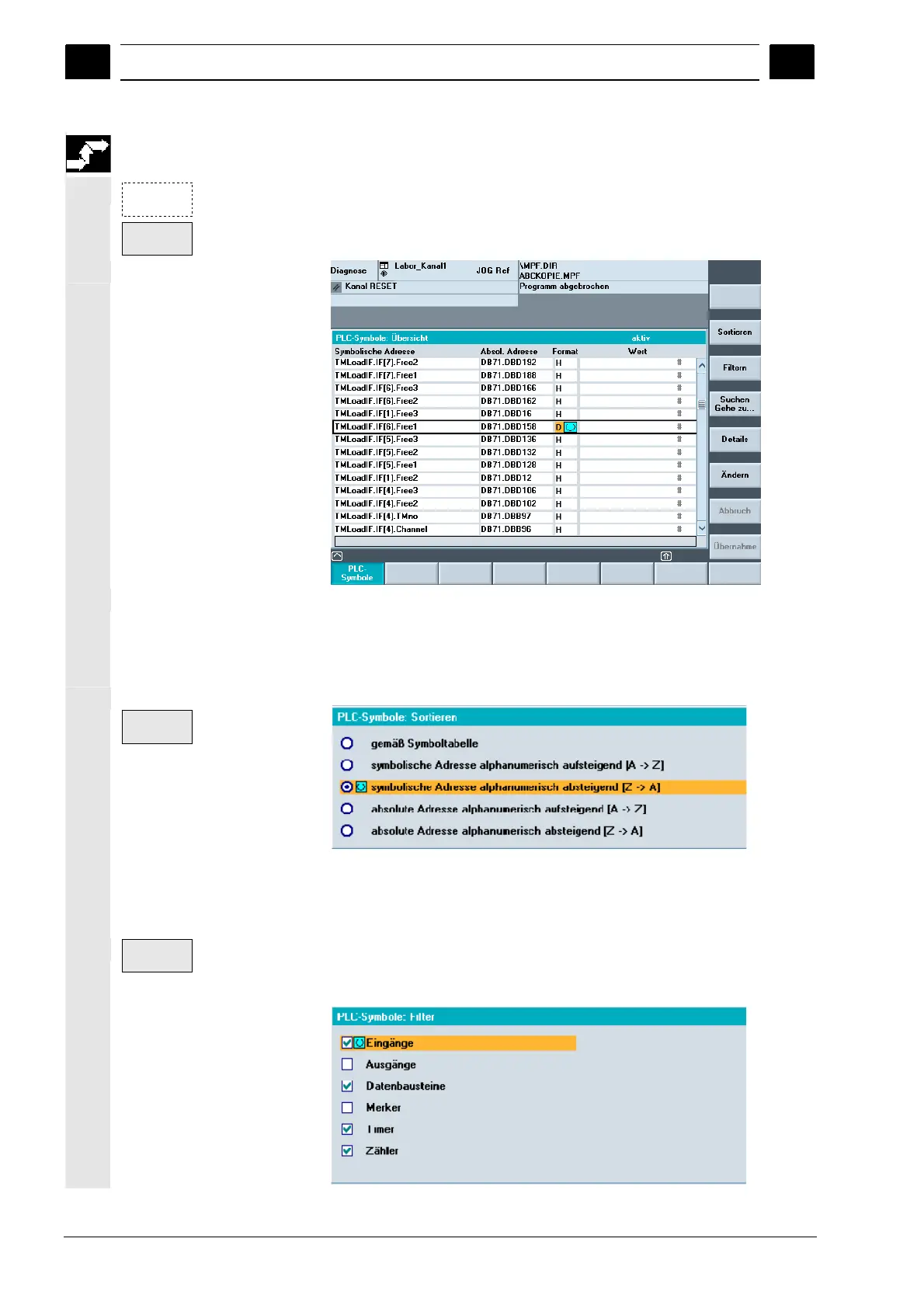

The "Diagnostics" operating area is selected. If the above listed
requirements are met, the PLC symbol softkey is displayed.
The following are represented in the table from left to right:
• Symbolic address
• Absolute address
• Format
• Value
Vertical softkeys
Sort
Select a sort option from:
Depending on your selection, sorting takes place on column one or
column twoin ascending or descending alphabetical order to make it
easy to find a symbol or address. "As in symbol table" means: In the
same sequence as the symbol table in the PLC project.
Filter
Select the categories of symbols/addresses that you want to display.
Press OK to activate the filter. Filters are retained after you exit
screens/operating areas and after reboot.
