Hydro:Evolved User Manual

4.3 Faults

The FAULTS menu displays a list of active and inactive faults.

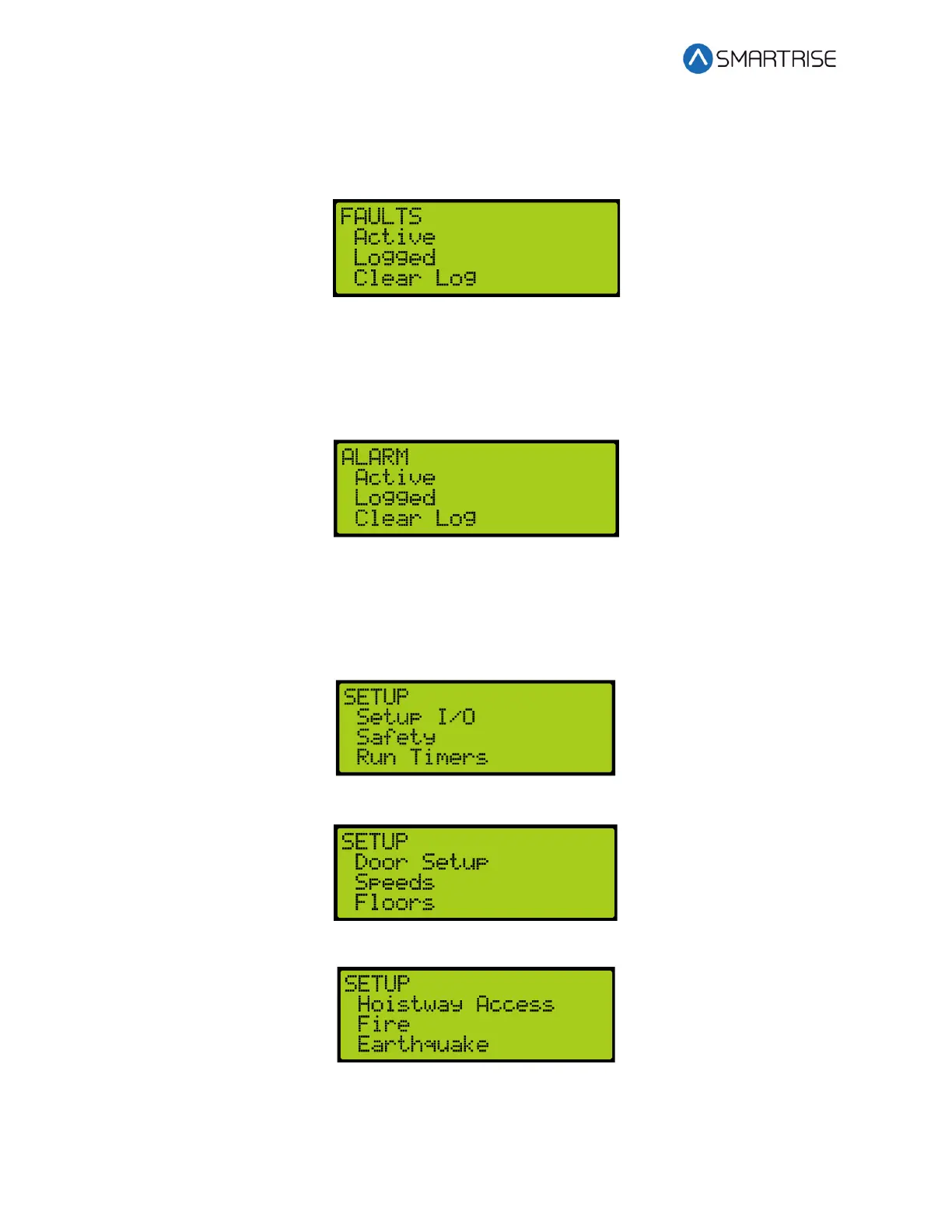

Figure 52: FAULTS Menu – Active, Logged, Clear Log

4.4 Alarms

The ALARMS menu displays a list of active and inactive alarms.

Figure 53: ALARMS Menu – Active, Logged, Clear Log

4.5 Setup

The SETUP menu consists of menus to allow for system configuration.

Figure 54: SETUP Menu – Setup I/O, Safety, Run Timers

Figure 55: SETUP Menu – Door Setup, Speeds, Floors

Figure 56: SETUP Menu – Hoistway Access, Fire, Earthquake
