Hydro:Evolved User Manual
October 2022 © 2022 Smartrise Engineering, Inc. All Rights Reserved Page 311

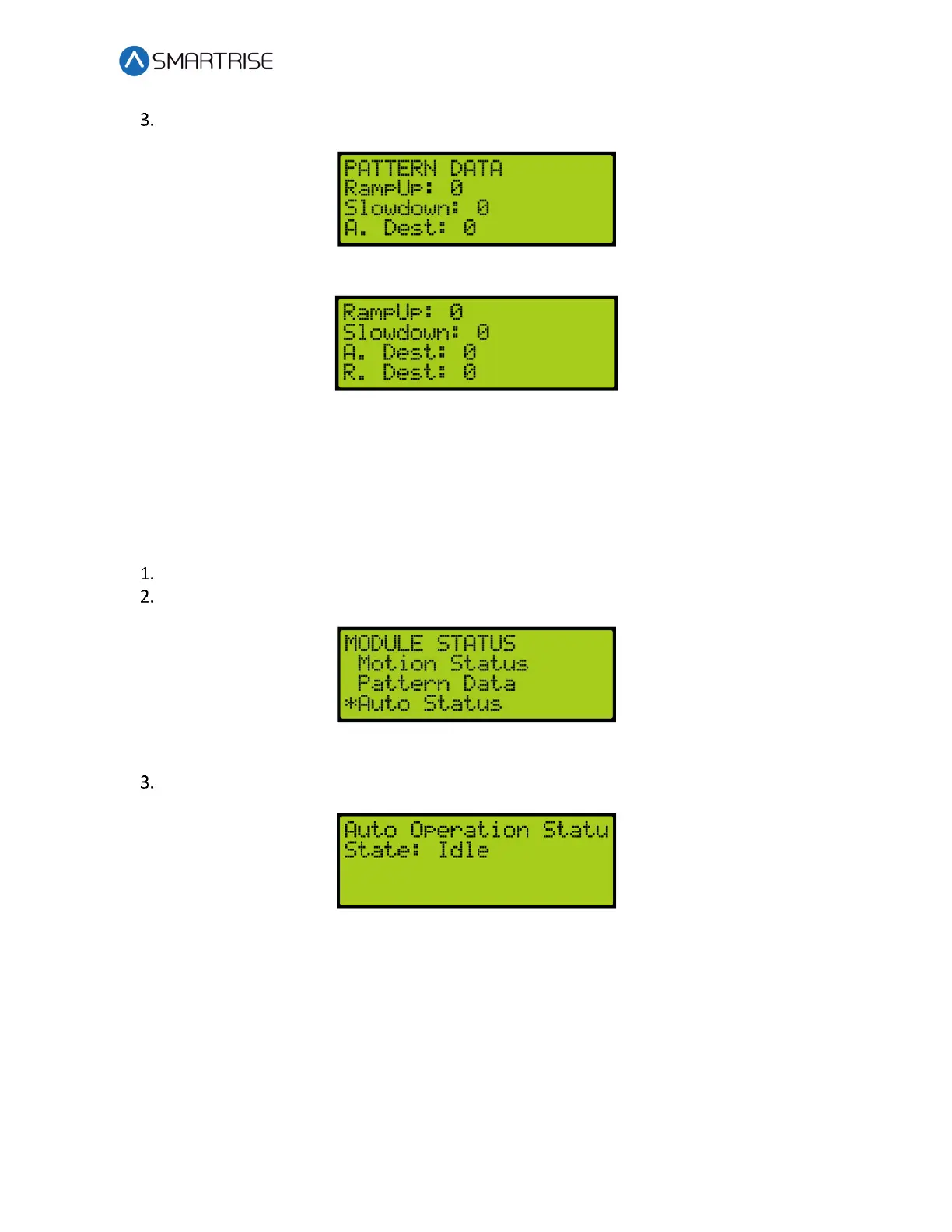

From the PATTERN DATA menu, view the Pattern Data.
Figure 611: PATTERN DATA Menu Part 1 of 2
Figure 612: PATTERN DATA Menu Part 2 of 2
38.9.3 Auto Status
The auto status displays the status of automatic operation.
The following procedure describes how to view the automatic status.
Navigate to MAIN MENU | DEBUG | Module Statuses. See Figure 65.
From the MODULE STATUS menu, scroll and select Auto Status.
Figure 613: MODULE STATUS Menu – Auto Status
From the Auto Operation Status menu, view the state of operation.
Figure 614: Auto Operation Status Menu
38.9.4 Recall Status
The recall status displays the current state of the car. If car is recalled to a specific landing, the
state changes to:
• Unknown – The car is not attempting to recall.
• Moving – The car is attempting to recall and is in motion or trying to move.
• Stopped – The car is attempting to recall but is currently stopped at a non-recall floor.
