Hydro:Evolved User Manual

2.1.10 120 VAC Inputs and Outputs (Field)

WARNING

ALL CONNECTIONS ON THIS TERMINAL BLOCK ARE HIGH VOLTAGE. DISCONNECT POWER TO

THE CONTROLLER BEFORE WIRING THESE TERMINALS.

The following are input terminals. See Hydro:Evolved Controller sheet 5 MR Board for wiring

information.

ATU Terminal – Access Top Up controller termination

ATD Terminal – Access Top Down controller termination

ABU Terminal - Access Bottom Up controller termination

ABD Terminal – Access Bottom Down controller termination

The following is an output terminal.

EB Terminal – Connects the neutral voltage to the Valve board. The EB terminal will not output

voltage until all safety checks have been completed. See Hydro:Evolved Controller sheet 5 MR

Board for wiring information.

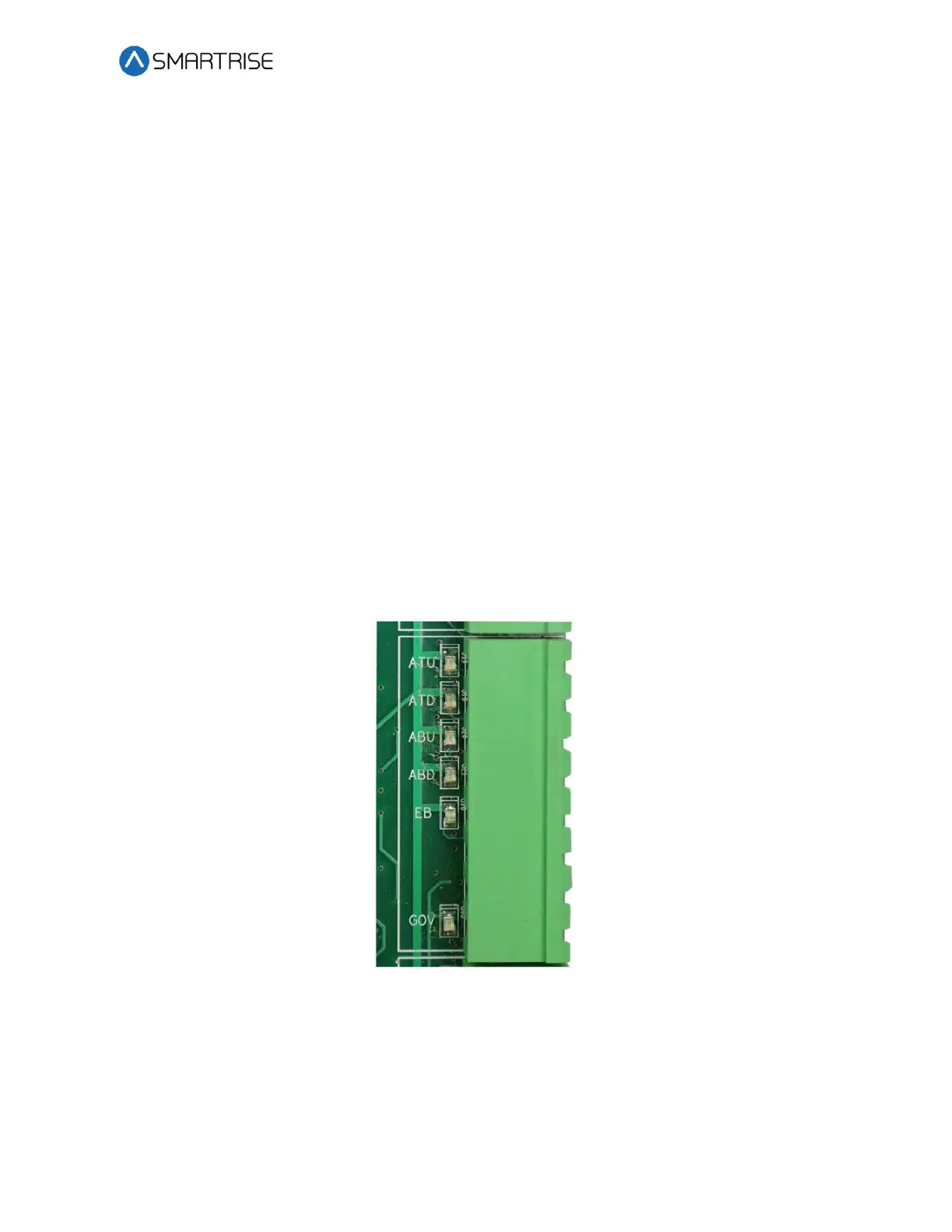

Figure 20: 120 VAC Input and Output Connector
