Hydro:Evolved User Manual

From the SAFETY menu, scroll and select TRSD ODL.

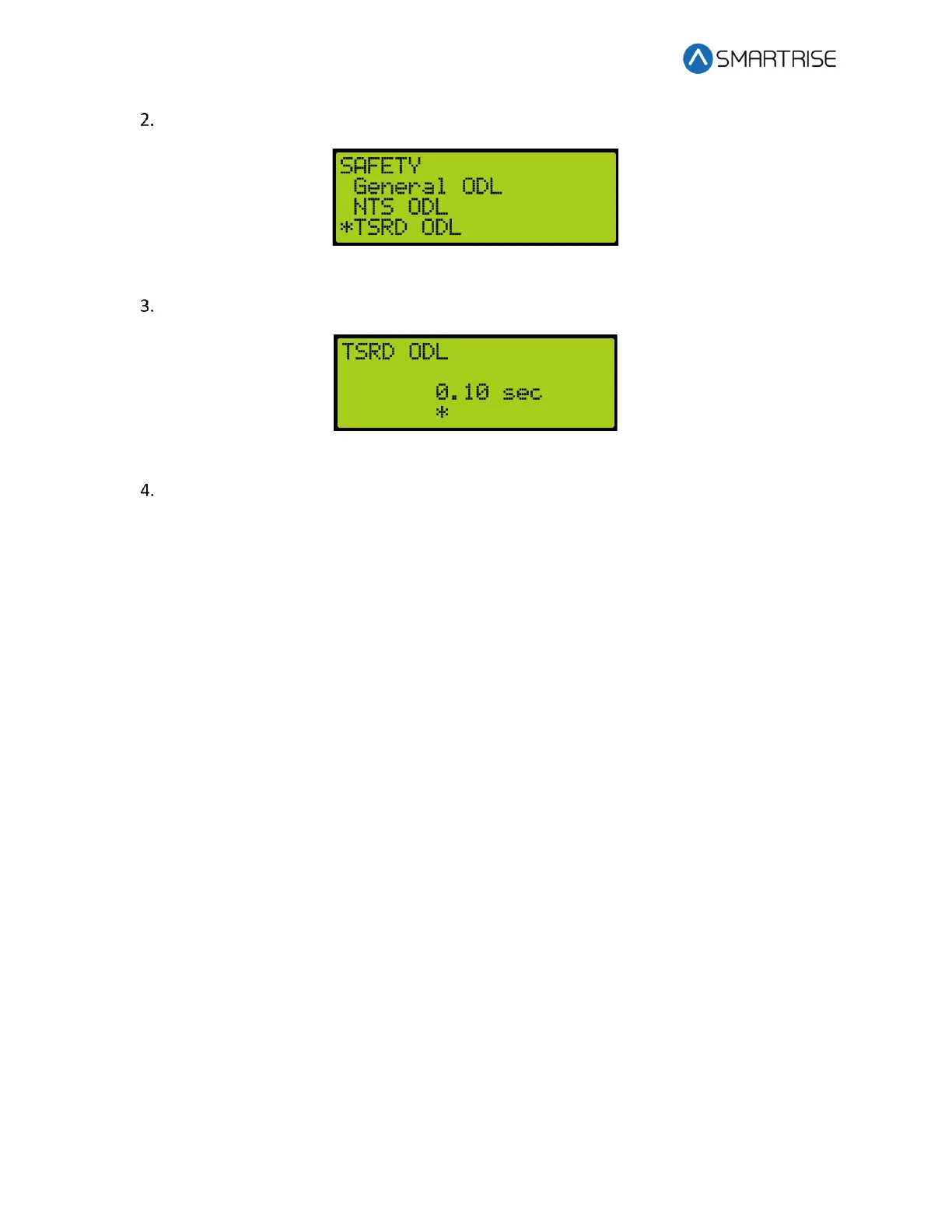

Figure 448: SAFETY Menu – NTS TSRD ODL

From the NTS ODL menu, enter the NTS debounce limit.

Figure 449: TSRD ODL Menu

Scroll right and press Save.
