From the GROUP SETUP menu, scroll and select Linked Hall Mask.

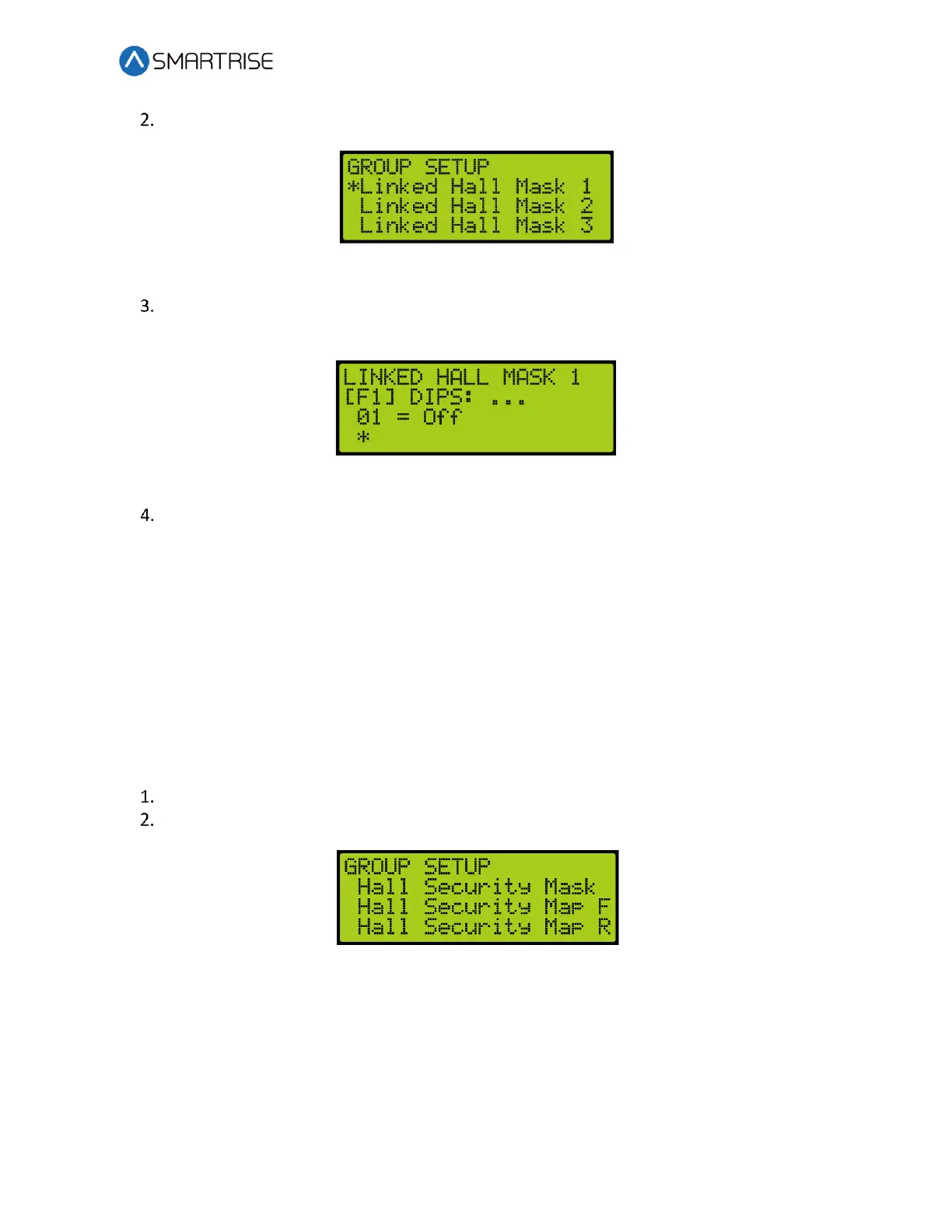

Figure 263: GROUP SETUP Menu – Linked Hall Mask
From the LINKED HALL MASK 1 menu, scroll and select the Hall boards within the group
that are linked.
Figure 264: LINKED HALL MASK 1 Menu
Scroll right and press Save.
16.5 Hall Security Map
The hall security map marks the landings that require hall security contacts. The configuration
of the master group car (the car with the lowest group car ID) is used. However, all cars should
share the same hall call security configuration parameters in case the master group car is taken
offline. The front hall security map parameters are 16-0940 to 16-0945 and the rear hall
security map parameters are 16-1035 to 16-1040. For the list of parameters, see the
Hydro:Evolved Parameter List.
The following procedure describes how to set hall security map.
Navigate to MAIN MENU | SETUP | GROUP SETUP. See Figure 58.
From the GROUP SETUP menu, scroll and select Hall Security Map (Front or Rear).
Figure 265: GROUP SETUP Menu – Hall Security Map (Front or Rear)
