Hydro:Evolved User Manual

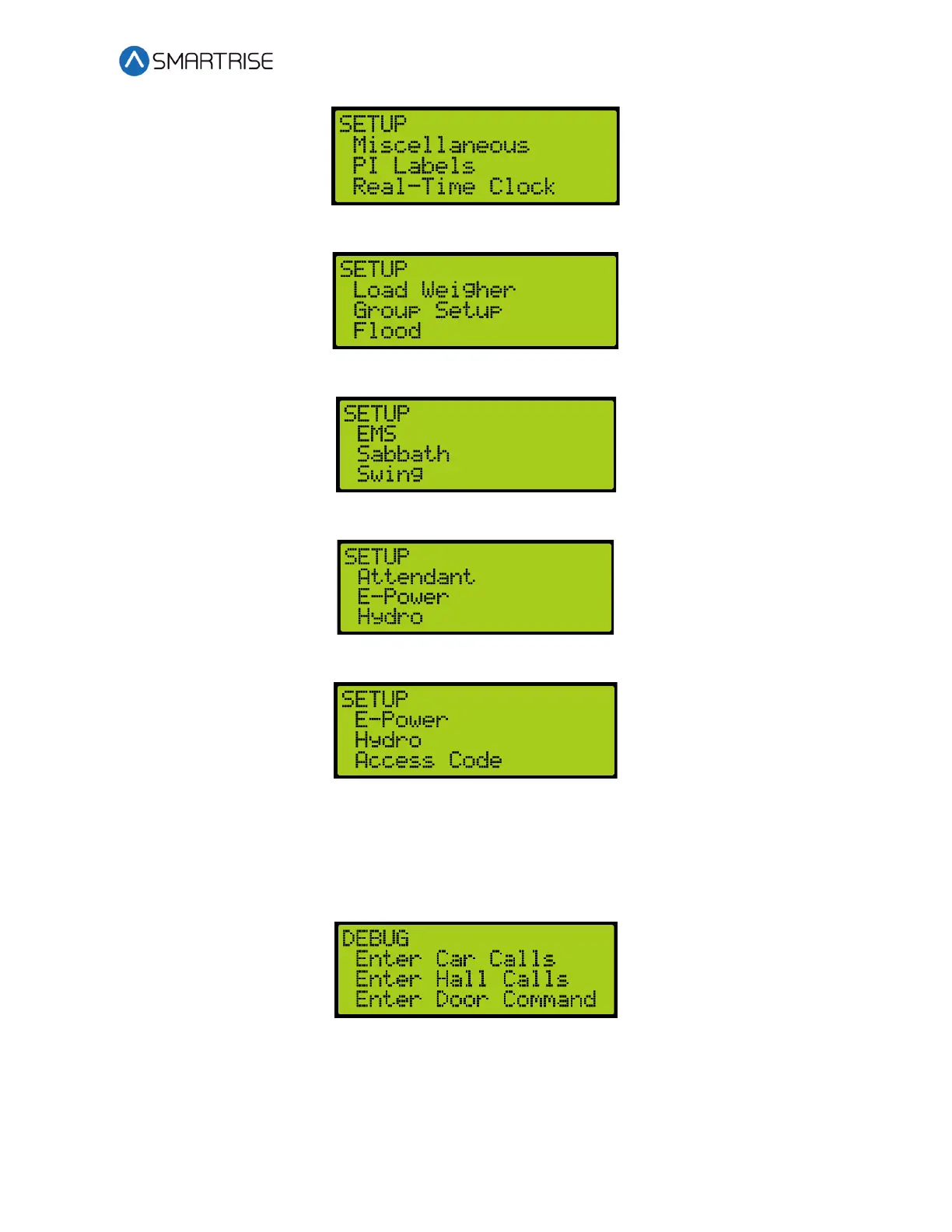

Figure 57: SETUP Menu – Miscellaneous, PI Labels, Real-Time Clock

Figure 58: SETUP Menu – Load Weigher, Group Setup, Flood

Figure 59: SETUP Menu – EMS, Sabbath, Swing

Figure 60: SETUP Menu – Attendant, E-Power, Hydro

Figure 61: SETUP Menu – Access Code

4.6 Debug

The DEBUG menu allows for testing the system.

Figure 62: DEBUG Menu – Enter Car Calls, Enter Hall Calls, Enter Door Command
