Hydro:Evolved User Manual
Page 170 © 2022 Smartrise Engineering, Inc. All Rights Reserved October 2022

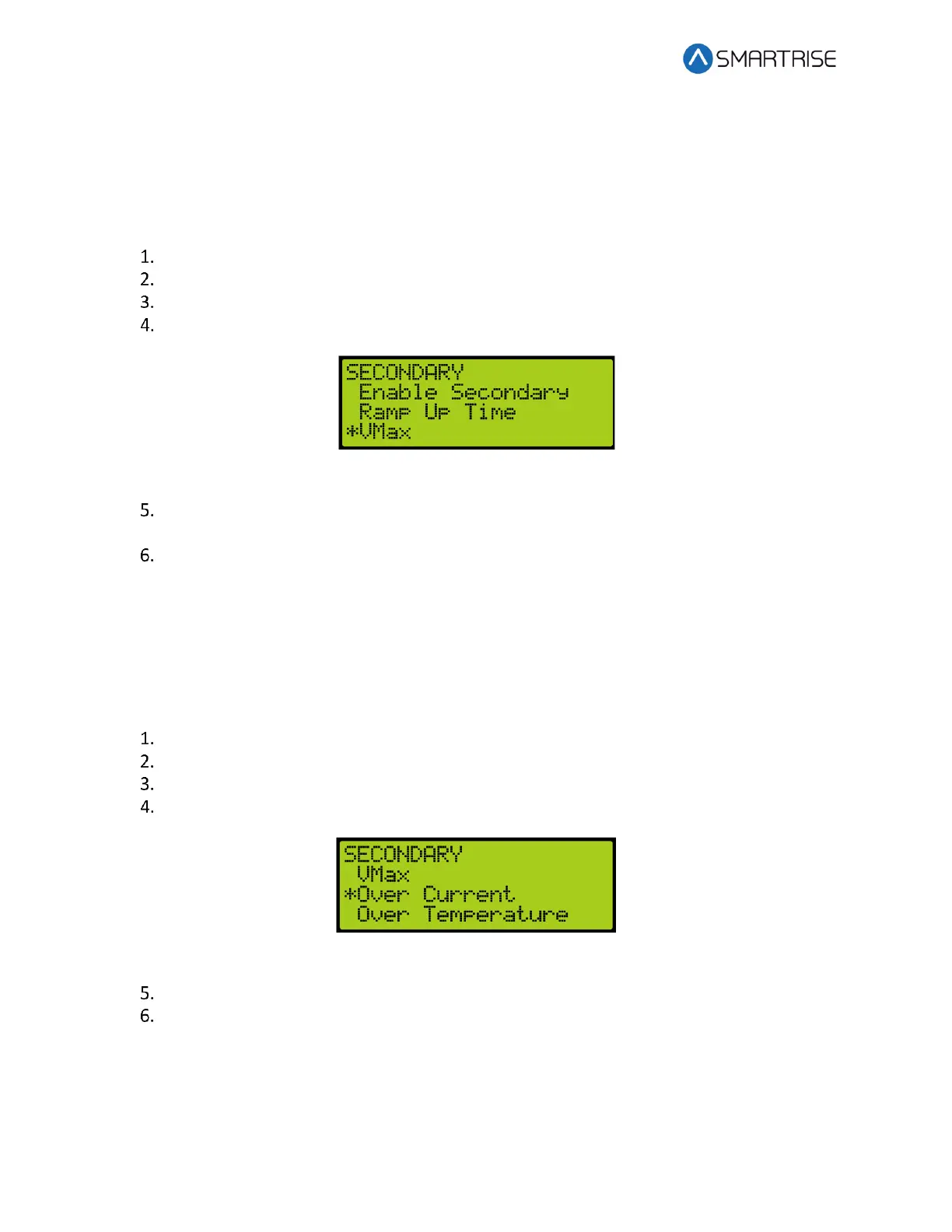

18.3.3.3 Vmax
Maximum voltage is the percentage of voltage that is allowed to limit the amount of current
and torque to the motor for the secondary soft starter.
The following procedure describes how to set the maximum voltage.
Navigate to MAIN MENU | SETUP | HYDRO. See Figure 60.
From the HYDRO SETUP menu, scroll and select Soft Starter. See Figure 282.
From the SOFT STARTER menu, scroll and select Secondary. See Figure 294.
From the SECONDARY menu, scroll and select Vmax.
Figure 298: SECONDARY Menu – VMax
From the VMAX AC VOLTAGE menu, set the percentage of the maximum voltage. See
Figure 289.
Scroll right and press Save.
18.3.3.4 Over Current
Current limitations for the secondary soft starter are set to prevent the motor from
overheating. See the manufacturers Soft Starter User Manual for more information.
The following procedure describes how to set the overcurrent limit.
Navigate to MAIN MENU | SETUP | HYDRO. See Figure 60.
From the HYDRO SETUP menu, scroll and select Soft Starter. See Figure 282.
From the SOFT STARTER menu, scroll and select Secondary. See Figure 294.
From the SECONDARY menu, scroll and select Over Current.
Figure 299: SECONDARY Menu – Over Current
From the OVERCURRENT menu, enter the maximum current allowed. See Figure 291.
Scroll right and press Save.
