Hydro:Evolved User Manual

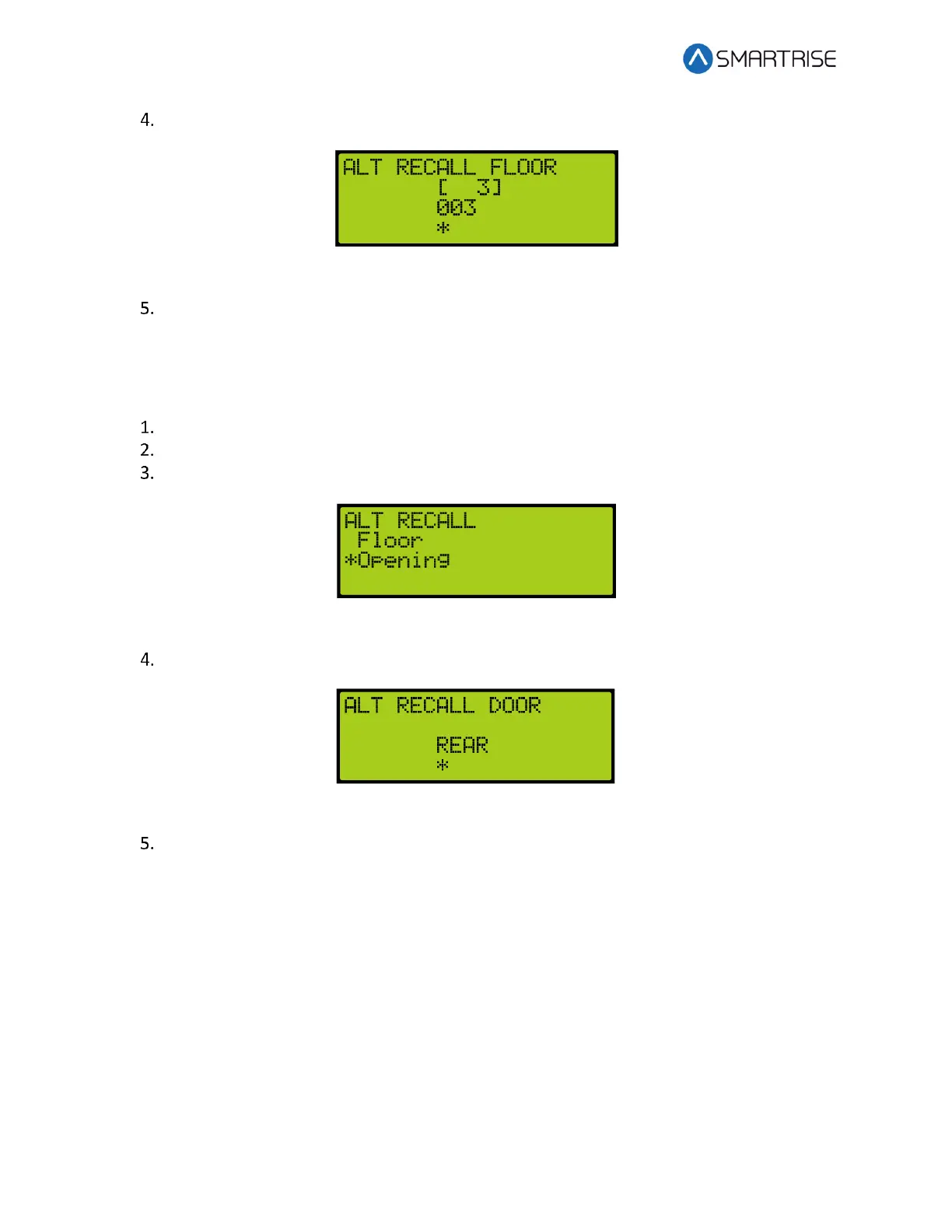

From the ALT RECALL FLOOR menu, enter the recall floor.

Figure 469: ALT RECALL FLOOR Menu

Scroll right and press Save.

31.3.2.2 Alternate Recall Door

The following procedure describes how to set the alternate recall door.

Navigate to MAIN MENU | SETUP | FIRE. See Figure 56.

From the FIRE SERVICE menu, scroll and select Alt Recall. See Figure 467.

From the ALT RECALL menu, scroll and select Opening.

Figure 470: ALT RECALL Menu – Opening

From the ALT RECALL DOOR menu, scroll and select if the front or rear door opens.

Figure 471: ALT RECALL DOOR Menu

Scroll right and press Save.

31.3.3 Main Smoke

The main smoke is where the car is recalled to a designated landing when smoke has been

detected in the main lobby.

Table of Contents5
Hydro:evolved Controller35
Overview35
Controller Components36
Figure 1: Hydro:evolved Controller36
Figure 2: Car Operating Panel Controller37
Figure 3: Car Top Controller37
Figure 4: Smartpositioning Landing System (Left)38
Figure 5: Smartpositioning Landing System (Right)38
Safety39
Default Voltage Settings Prior to Installation39
Figure 6: Ground Bus Terminal Blocks39
Controller Hardware40
MR Board SR303241
Figure 7: MR Board SR303241
Table 1: MR Board SR3032 Bank a DIP Switch Setting Configuration42
Table 2: MR Board SR3032 Bank B DIP Switch Setting Configuration42
Navigation Buttons43
Figure 8: Navigation Buttons43
Table 3: Navigation Button Descriptions43
VDC Power Source44
Reset Buttons44
Figure 9: Example of Selected Menu44
Figure 10: 24 VDC Connector44
Figure 11: Reset Switches44
Nts45
Network45
Figure 12: NTS Connector45
Figure 13: CN Connector46
Figure 14: CAN 1,2,3 Network Connector46
VAC Inputs and Outputs (Factory)47
Figure 15: 120 VAC Connector47
VDC Inputs and Outputs48
Figure 16: 24 VDC Input Connector48
Figure 17: 24 VDC Output Connector48
VDC Monitoring System49
Safety String Inputs 120 VAC49
Figure 18: 24 VDC Monitoring System Connector49
Figure 19: Safety String Input Connector50
VAC Inputs and Outputs (Field)51
Figure 20: 120 VAC Input and Output Connector51
Hall Lock Connections52
Inspection Controls52
Figure 21: Hall Lock Connector52
Safety Relays53
Figure 22: MR Board SR3032 Inspection Control53
CT/COP Board SR303054
Figure 23: MR Board SR3032 Safety Relays54
Figure 24: SRU Board SR303055
Table 4: CT/COP Board SR3030 Bank a DIP Switch Setting Configuration56
Table 5: CT/COP Board SR3030 Bank B DIP Switch Setting Configuration56
I/O Board/Riser Board SR303157
Figure 25: I/O Board/Riser Board SR303157
Table 6: I/O Board SR3031 DIP Switch Settings57
Group Redundancy58
Input Board SR304158
Figure 26: 24 Input Board SR304159
Table 7: 24 Input Board SR3041 DIP Switch Settings59
Table 8: 24 Input Board SR3041 DIP Switch Settings When SR3041 Is Master60
Table 9: 24 Input Board SR3041 DIP Switch Settings When SR3031 Is Master60
Hall Board SR106061
Figure 27: 10 DIP Hall Board SR1060-E61
Figure 28: 12 DIP Hall Board SR1060-G61
Valve Board SR304562
Table 10: Hall Board 10 DIP Switch Settings62
Table 11: Hall Board 12 DIP Switch Settings62
Figure 29: Valve Board SR304563
Menu Structure65
Status65
Figure 30: Status - Inputs, Outputs, and Expansion Status Menus65
Table 12: Status - Inputs, Outputs, and Expansion Status Menu Structures66
Figure 31: Status - Hall Call Status, CPLD Status, Virtual Inputs, and DIP Status Menus68
Table 13: Status - Hall Call Status, CPLD Status, Virtual Inputs, and DIP Status Menu Structures69
Faults and Alarms70
Figure 32: Faults and Alarms Menus70
Table 14: Faults and Alarms Menu Structures70
Setup71
Figure 33: Setup - Setup I/O, Safety, and Run Timers Menus71
Table 15: Setup - Setup I/O, Safety and Run Timers Menu Structures72
Figure 34: Setup - Door Setup Menu74
Table 16: Setup - Door Setup Menu Structure75
Figure 35: Setup - Speeds, Floors, and Hoistway Access Menus77
Table 17: Setup - Speeds, Floors, and Hoistway Access Menu Structures78
Figure 36: Setup - Fire and Earthquake Menus80
Table 18: Setup - Fire and Earthquake Menu Structures81
Figure 37: Setup - Miscellaneous Menus83
Table 19: Setup - Miscellaneous Menu Structure84
Figure 38: Setup - Group Setup, Flood, and EMS Menus86
Table 20: Setup - Group Setup, Flood, and EMS Menu Structures87
Figure 39: Setup - Sabbath, Swing, Attendant, and E-Power Menus90
Table 21: Setup - Sabbath, Swing, Attendant, and E-Power Menu Structures91
Figure 40: Setup - Hydro and Access Menus93
Table 22: Setup - Hydro and Access Menu Structures94
Debug and about97
Figure 41: Debug and about Menus97
Table 23: Debug and about Menu Structures98
High-Level Navigation Menu Structure100
Main Menu100
Status100
Figure 42: MAIN MENU - Status, Faults, Alarms100
Figure 43: MAIN MENU - Setup, Debug, about100
Figure 44: STATUS Menu - Inputs, Outputs, Valve 1 Status100
Figure 45: STATUS Menu - Valve 2 Status, Soft Starter Status, Soft Starter 2 Status100
Figure 46: STATUS Menu - Expansion Status, Riser Board Status, Hall Board Status101
Figure 47: STATUS Menu - Hall Lantern Status, Hall Security Status, Hall Call Status101
Figure 48: STATUS Menu - DAD Status, Clock, CPLD Status101
Figure 49: STATUS Menu - Load Weigher Status, E-Power Status, EMS Status101
Figure 50: STATUS Menu - Virtual Inputs and DIP Status101
Figure 51: STATUS Menu - Door (F) Status and Door (R) Status101
Faults102
Alarms102
Setup102
Figure 52: FAULTS Menu - Active, Logged, Clear Log102
Figure 53: ALARMS Menu - Active, Logged, Clear Log102
Figure 54: SETUP Menu - Setup I/O, Safety, Run Timers102
Figure 55: SETUP Menu - Door Setup, Speeds, Floors102
Figure 56: SETUP Menu - Hoistway Access, Fire, Earthquake102
Debug103
Figure 57: SETUP Menu - Miscellaneous, PI Labels, Real-Time Clock103
Figure 58: SETUP Menu - Load Weigher, Group Setup, Flood103
Figure 59: SETUP Menu - EMS, Sabbath, Swing103
Figure 60: SETUP Menu - Attendant, E-Power, Hydro103
Figure 61: SETUP Menu - Access Code103
Figure 62: DEBUG Menu - Enter Car Calls, Enter Hall Calls, Enter Door Command103
Figure 63: DEBUG Menu - Edit Parameters, View Network Packet, View Group Packets104
Figure 64: DEBUG Menu - View Debug Data, Acceptance Test, Emergencybitmap104
Figure 65: DEBUG Menu - Module Statuses, Car Data, Car Destinations104
Figure 66: DEBUG Menu - Run Counter, Debugruns, Xreg Destination104
Figure 67: DEBUG Menu - Xreg Data, SH Dynamic Car Parking, SH Predict Car Parking104
Figure 68: DEBUG Menu - SH Remote Commands and View Module Data104
Parameters105
Figure 69: PARAMETER EDIT Menu - Hexadecimal or Decimal Format105
Figure 70: EDIT as BINARY Menu Hexadecimal or Decimal Format105
Figure 71: EDIT as HEXADECIMAL Menu105
Figure 72: EDIT as DECIMAL Menu105
Construction Mode106
Main Power Setup106
Figure 73: Breakers in the off Position106
Figure 74: L1/L2 Breaker106
Construction Mode107
Soft Starter Setup107
Inspection Mode107
Standard Modes of Inspection107
Figure 75: MR INSPECTION Switch107
Inspection Run Options and Adjustments108
Figure 76: Car Run Box108
Figure 77: SPEEDS Menu - Inspection Speed108
Figure 78: INSPECTION SPEED Menu109
Adjusting Run Timers110
Figure 79: TIMERS Menu - Start Timers or Stop Timers111
Figure 80: START TIMERS Menu111
Figure 81: STOP TIMERS Menu111
Smartpositioning Landing System112
Coded Tape112
Figure 82: Coded Tape112
Figure 83: Gloves Required112
Figure 84: Tape Minimum Bend Radius113
Figure 85: Routing Tape113
Sensor Assembly Installation114
Figure 86: Unistrut Installation114
Figure 87: Sensor Array Assembly Positioning115
Upper Tape Mount Assembly116
Figure 88: Location of Tape Mount Assemblies116
Figure 89: Upper Tape Unistrut Installation117
Figure 90: Hardware117
Tape Clip Assembly118
Figure 91: Gap Verification118
Figure 92: Tape Clip Assembly118
Figure 93: Tape Clip Insertion119
Figure 94: Tape Clip Assembly Alignment119
Figure 95: Optical Axis120
Figure 96: Tape Clip Assembly Placement (Rear View)120
Figure 97: Tape Clip Assembly Alignment121
Lower Tape Mount Assembly122
Figure 98: Lower Tape Mount Assembly122
Figure 99: Hardware to Lower Tape Mount Assembly122
Sensor Array Assembly123
Figure 100: Sensor Array Assembly123
Figure 101: Sensor Array Assembly (Right Side)124
Figure 102: Sensor Array Assembly (Left Side)125
Figure 103: Dual Sensor Array Assembly125
Figure 104: Dual Sensor Array Assembly (Right Side)126
Emergency Tape Break (ETB) Switch Assembly127
Figure 105: Dual Sensor Array Assembly (Left Side)127
Figure 106: Emergency Tape Break Switch in Series with Buffer Switch127
Fine Tune128
Figure 107: Unistrut to Lower Tape Mount Assembly128
Figure 108: Emergency Tape Break Switch128
Figure 109: Sensor Array Assembly Adjustment129
Figure 110: RJ45 Connection129
Alignment130
Figure 111: Optical Sensor Leds130
Figure 112: Alignment Arrows130
Learning the Hoistway133
Figure 113: Check Status by Main Screen Method133
Figure 114: Normal to Hold UP/DN to Start133
Figure 115: Learn Complete133
Speeds134
Contract Speed134
Leveling Speed134
Figure 116: SPEEDS Menu - Contract Speed134
Figure 117: CONTRACT SPEED Menu134
Test Buffer Speed135
Figure 118: SPEEDS Menu - Test Buffer Speed135
Figure 119: BUFFER SPEED Menu135
Floors136
Number of Floors136
Floor Adjustment136
Car Is too Low or too High136
Figure 120: FLOORS Menu - Number of Floors136
Figure 121: NUMBER of FLOORS Menu136
Figure 122: FLOORS Menu - too High/ too Low137
Figure 123: ADJUST FLOORS Menu - too Low137
Figure 124: ADJUST FLOORS Menu - too High137
Security Setting138
Access Code138
Figure 125: FLOORS Menu - Security (Front or Rear)138
Figure 126: SECURITY FLOORS Menu138
Front and Rear Access139
Figure 127: ACCESS CODE Menu - Access Codes (Front or Rear)139
Figure 128: ACCESS CODE FRONT Menu - Floor Number139
Figure 129: ACCESS CODE REAR Menu - Floor Number139
Figure 130: no Access Code139
Car Call Button Timer140
Figure 131: FRONT ACCESS CODE Menu140
Figure 132: REAR ACCESS CODE Menu140
Figure 133: Invalid Floor140
Enable Releveling141
Figure 134: ACCESS CODE Menu - CCB Timer141
Figure 135: CCB TIMER Menu141
Figure 136: FLOORS Menu - Enable Releveling141
Figure 137: ENABLE RELEVELING Menu141
Relevel Zone Size142
Releveling Delay142
Figure 138: FLOORS Menu - Relevel Zone Size142
Figure 139: RELEVEL ZONE SIZE Menu142
Figure 140: FLOORS Menu - Releveling Delay142
Floor Openings143
Figure 141: RELEVELING DELAY Menu143
Figure 142: FLOOR Menu - Openings (Front or Rear)143
Figure 143: FLOOR OPENING Menu143
Store Floor Level144
Short Floor Opening144
Figure 144: FLOORS Menu - Store Floor Level144
Figure 145: STORE FLOORS Menu144
Figure 146: FLOORS Menu - Short Floor Opening144
Timed Car Call Security145
Figure 147: SHORT FLOOR OPENING Menu145
Figure 148: FLOOR Menu - Timed Car Call Security145
Figure 149: TIMED CC SECURITY Menu - Enable Floor (Front or Rear)145
Figure 150: TIMED CAR CALL SECURITY Menu - Start (M-F)146
Figure 151: WEEKDAY START TIME Menu146
Figure 152: TIMED CAR CALL SECURITY Menu - Stop (M-F)146
Figure 153: WEEKDAY STOP TIME Menu146
Figure 154: TIMED CAR CALL SECURITY Menu - Start (S-S)146
Figure 155: WEEKEND START TIME Menu147
Figure 156: TIMED CAR CALL SECURITY Menu - Stop (S-S)147
Figure 157: WEEKEND STOP TIME Menu147
Sabbath Operation148
Figure 158: SETUP I/O Menu - Setup Inputs148
Figure 159: SELECT BOARD Menu - Machine Room148
Figure 160: Input Menu149
Figure 161: SABBATH Menu - Key Enable Only149
Figure 162: KEY ENABLE ONLY Menu149
Figure 163: SABBATH Menu - Floors Opening (F)149
Figure 164: FLOOR OPENINGS (Front) Menu150
Figure 165: SABBATH Menu - Floors Opening (R)150
Figure 166: FLOORS OPENINGS (Rear) Menu150
Figure 167: SABBATH Menu - Destinations up150
Figure 168: up DESTINATIONS Menu151
Figure 169: SABBATH Menu - Destinations down151
Figure 170: down DESTINATION Menu151
Figure 171: SABBATH Menu - Timer Enable Only152
Figure 172: TIMER ENABLE ONLY Menu152
Figure 173: SABBATH Menu - Friday Start Time152
Figure 174: FRIDAY START TIME Menu152
Figure 175: SABBATH Menu - SATURDAY END Time152
Figure 176: SATURDAY END TIME Menu153
Figure 177: SABBATH Menu - Door Dwell Timer153
Figure 178: DOOR DWELL TIMER Menu153
Figure 179: SABBATH Menu - Key or Timer Enable153
Figure 180: Key or Timer Enable Menu153
Doors154
Control Doors154
Figure 181: DOORS Menu - Control Doors154
Table 24: Door Symbols for each State154
Door Dwell Timer155
Hall Dwell Timer155
Figure 182: CONTROL DOORS Menu155
Figure 183: DOORS Menu -Door Dwell Timer155
Figure 184: DOORS Menu - Hall Dwell Timer155
ADA Dwell Timer156
Hold Dwell Timer156
Figure 185: HALL DWELL TIMER Menu156
Figure 186: DOORS Menu - ADA Dwell Timer156
Figure 187: ADA DWELL TIMER Menu156
Lobby Dwell Timer157
Figure 188: DOORS Menu - Hold Dwell Timer157
Figure 189: HOLD DWELL TIMER Menu157
Figure 190: DOORS Menu - Lobby Dwell Timer157
Figure 191: LOBBY DWELL TIMER Menu157
Door Stuck Timer158
Door Nudge Timer158
Figure 192: DOORS Menu - Door Stuck Timer158
Figure 193: DOOR STUCK TIMER Menu158
Figure 194: DOORS Menu - Door Nudge Timer158
Rear Doors159
Preopening Distance159
Figure 195: Door Nudge Timer159
Figure 196: DOORS Menu - Rear Doors159
Figure 197: REAR DOORS Menu159
DC on Run160
Figure 198: DOORS Menu - Preopening Distance160
Figure 199: PREOPENING Distance Menu160
Figure 200: DOORS Menu - DC on Run160
Figure 201: DC on RUN Menu160
DC on Close161
DO on Open161
Figure 202: DOORS Menu - DC on Close161
Figure 203: DC on DOOR CLOSE Menu161
Figure 204: DOORS Menu - DO on Open161
Disable on CT Stop162
Disable on HA162
Figure 205: DO on DOOR OPEN Menu162
Figure 206: DOORS Menu - Disable on CT Stop162
Figure 207: DISABLE DOOR on CT STOP Menu162
AT400 Doors163
Figure 208: DOORS Menu - Disable on HA163
Figure 209: DISABLE DOOR on HA Menu163
Figure 210: DOORS Menu - AT400 Doors163
Figure 211: ENABLE AT400 DOOR Menu163
No Demand Doors Open164
Jumper Timer164
Figure 212: DOORS Menu - no Demand Doors Open164
Figure 213: no DEMAND DOORS OPEN Menu164
Figure 214: DOORS Menu - Jumper Timer164
Jumper on DOL165
Figure 215: JUMPER TIMEOUT Menu165
Figure 216: DOORS Menu - Jumper on DOL165
Figure 217: LOCK JUMPED on DOL Menu165
Hourly Fault Limit166
Nudge - Buzzer Only166
Figure 218: DOORS Menu - Hourly Fault Limit166
Figure 219: HOURLY FAULT LIMIT Menu166
Figure 220: DOORS Menu - Nudge - Buzzer Only166
Opening Time167
Check Time167
Figure 221: NUDGE - BUZZER ONLY Menu167
Figure 222: DOORS Menu - Opening Time167
Figure 223: OPENING TIME Menu167
Door Type168
Figure 224: DOORS Menu - Check Time168
Figure 225: CHECK TIME Menu168
Figure 226: DOORS Menu - Door Type (Front or Rear)168
Lock and CAM Timeout169
Retiring CAM169
Figure 227: DOOR TYPE Menu169
Figure 228: DOORS Menu - Lock and CAM Timeout169
Figure 229: TIMEOUT LOCK and CAM Menu169
Fixed CAM170
Figure 230: DOORS Menu - Retiring CAM170
Figure 231: RETIRING CAM Menu170
Figure 232: DOORS Menu - Fixed CAM170
Figure 233: FIXED CAM Menu170
Swing Lock GSW Timeout171
Swing Contacts Timeout171
Figure 234: DOORS Menu - Swing Lock GSW Timeout171
Figure 235: SWING LOCK GSW TIMER Menu171
Figure 236: DOORS Menu - Swing Contacts Timeout171
Disable DOB Rear172
Front Door State172
Figure 237: SWING CONTACTS TIMER Menu172
Figure 238: DOORS Menu - Disable DOB Rear172
Figure 239: DISABLE REAR DOB Menu172
Figure 240: VIEW DEBUG DATA Menu - Front Door173
Table 25: Door Command Issued to the Door Module173
Rear Door State174
Car Data174
Car Data Overview174
Figure 241: VIEW DEBUG DATA Menu - Rear Door174
Figure 242: Car Data Overview174
Table 26: Car Status Codes175
Hall Mask Status177
Figure 243: Hall Mask Status177
Table 27: Hall Mask Status Definitions177
Opening Map Status178
Front Opening Map Status178
Rear Opening Map Status178
Security Map Status178
Front Security Map Status178
Figure 244: Front Opening Map Status178
Figure 245: Rear Opening Map Status178
Rear Security Map Status179
Linked Hall Mask Status179
Figure 246: Front Security Map Status179
Figure 247: Rear Security Map Status179
Hall Security Map Status180
Front Hall Security Map Status180
Rear Hall Security Map Status180
Figure 248: Linked Hall Mask Status180
Figure 249: Front Hall Security Map Status180
Hall Security Mask Status181
Dispatching Timer Status181
Figure 250: Rear Hall Security Map Status181
Figure 251: Front and Rear Hall Security Mask Status181
VIP Flags182
Figure 252: Dispatching Timers Status182
VIP Masks183
Figure 253: VIP Flags Status183
Figure 254: VIP Mask Status Menu183
Car Call Enable Bitmap Status184
Front Car Call Enable Bitmap Status184
Rear Car Call Enable Bitmap Status184
Figure 255: Front Car Call Enable Bitmap Status184
Emergency Medical Call Mask and Landing185
Figure 256: Rear Car Call Enable Bitmap Status185
Figure 257: Emergency Medical Call Mask and Landing185
Hall Network188
CAN Bus188
Figure 258: Standard CAN Bus188
Hall Board Status189
Figure 259: Hall Board Status189
Figure 260: Uninitialized Hall Board Status189
Enable Hall Security190
Linked Hall Buttons190
Figure 261: GROUP SETUP Menu - Enable Hall Security190
Figure 262: ENABLE HALL SECURITY Menu190
Hall Security Map191
Figure 263: GROUP SETUP Menu - Linked Hall Mask191
Figure 264: LINKED HALL MASK 1 Menu191
Figure 265: GROUP SETUP Menu - Hall Security Map (Front or Rear)191
Hall Security Mask192
Figure 266: HALL SECURITY MAP FRONT Menu192
Figure 267: HALL SECURITY MAP REAR Menu192
Figure 268: GROUP SETUP Menu - Hall Security Mask192
Figure 269: HALL SECURITY MASK Menu192
Hall Security Status193
Hall Call Masks193
Figure 270: GROUP SETUP Menu - Hall Call Mask193
Figure 271: HALL CALL MASK Menu193
Hall Medical Mask194
Figure 272: GROUP SETUP Menu - Hall Medical Mask194
Table 28: Hall Board 10 DIP Hall Mask Mapping Switch Settings194
Table 29: Hall Board 12 DIP Hall Mask Mapping Switch Settings194
Hall Rear Door Mask195
Errors195
Figure 273: HALL MEDICAL MASK Menu195
Figure 274: GROUP SETUP Menu - Hall Rear Door Mask195
Figure 275: HALL REAR DOOR MASK Menu195
Compatibility196
Serial Hall Lanterns196
Can Bus196
Hall Lantern Masks196
Serial Hall Lantern Status196
Errors197
Hydro197
Valve Type Select197
Figure 276: Hall Lantern Status197
Figure 277: Uninitialized Hall Lantern Status197
Figure 278: HYDRO SETUP Menu - Valve Type Select197
Secondary Valve Board198
Soft Starter198
ENA Serial Soft Starter198
Figure 279: VALVE TYPE Menu198
Figure 280: HYDRO SETUP Menu - Secondary Valve Board198
Figure 281: SECONDARY VALVE BOARD Menu198
Primary199
Ramp up Time199
Figure 282: HYDRO SETUP Menu -Soft Starter199
Figure 283: SOFT STARTER Menu - Enable SR Soft Starter199
Figure 284: ENABLE SR SOFT STARTER Menu199
Vmax200
Figure 285: SOFT STARTER Menu - Primary200
Figure 286: PRIMARY Menu - Ramp up Time200
Figure 287: RAMP up TIME Menu200
Figure 288: PRIMARY Menu - Vmax200
Over Current201
Over Temperature201
Figure 289: VMAX AC VOLTAGE Menu201
Figure 290: PRIMARY Menu - over Current201
Figure 291: OVERCURRENT Menu201
Secondary202
Enable Secondary202
Figure 292: PRIMARY Menu - over Temperature202
Figure 293: OVERTEMPERATURE LIMIT Menu202
Figure 294: SOFT STARTER Menu - Secondary202
Ramp up Time203
Figure 295: SECONDARY Menu - Enable Secondary203
Figure 296: ENABLE SECONDARY SOFT STARTER Menu203
Figure 297: SECONDARY Menu - Ramp up Time203
Vmax204
Over Current204
Figure 298: SECONDARY Menu - Vmax204
Figure 299: SECONDARY Menu - over Current204
Over Temperature205
Run with One Soft Starter205
Figure 300: SECONDARY Menu - over Temperature205
Figure 301: SOFT STARTER Menu - Run with One Soft Starter205
Slowdown206
Figure 302: Run with One Soft Starter Menu206
Figure 303: Slowdown Distance207
Level Maximum Run Distance208
Figure 304: HYDRO SETUP Menu - Level Maximum Run Distance208
NTS Buffer Distance up and down209
Destination and Relevel Offsets209
Figure 305: LEVEL MAXIMUM RUN DISTANCE Menu209
Figure 306: HYDRO SETUP Menu - NTS Buffer Distance up or down209
Figure 307: NTS BUFFER DISTANCE up Menu209
Figure 308: NTS BUFFER DISTANCE down Menu209
Destination Offset210
Figure 309: HYDRO SETUP Menu - Destination Offset (up or Down)210
Figure 310: DESTINATION OFFSET up Menu210
Figure 311: DESTINATION OFFSET down Menu210
Relevel Offset211
Speed Thresholds211
Figure 312: HYDRO SETUP Menu - Relevel Offset (up or Down)211
Figure 313: RELEVEL OFFSET up Menu211
Figure 314: Relevel Offset down Menu211
Slowdown Distance212
Slowdown Distance after Adjustments212
Figure 315: HYDRO SETUP Menu - Speed Thresholds212
Figure 316: SPEED THRESHOLD Menu212
Hydro Speed Setup213
Figure 317: HYDRO SETUP Menu - Slowdown Distance up or down213
Figure 318: SLOWDOWN DISTANCE up Menu213
Figure 319: SLOWDOWN DISTANCE down Menu213
Car Overshooting214
Figure 320: HYDRO SETUP Menu - Hydro Speed Setup214
Figure 321: up Distance Menu214
Figure 322: down Distance Menu214
Figure 323: GENERATE THRESHOLDS and SLOWDOWNS? Menu214
Adjust Leveling Time215
Figure 324: down Distance Menu - Overshooting Adjustment215
Figure 325: up Distance Menu - Overshooting Adjustment215
Figure 326: Generate Thresholds215
Figure 327: down Distance Menu - Steady State of Leveling Longer Adjustment215
Adaptive Slowdown™ System (U.S. Patent Pending)216
Procedure216
Figure 328: up Distance Menu - Steady State of Leveling Longer Adjustment216
Figure 329: Generate Thresholds216
Figure 330: LEVELING TARGET Menu - Slowdown Target216
Troubleshoot Adaptive Slowdown™ System (U.S. Patent Pending)217
Figure 331: ENABLE SLOWDOWN Menu - Slowdown Learn217
Figure 332: Slowdown Target-Increase217
Figure 333: Slowdown Target-Decrease217
Monitoring Adaptive Slowdown™ System (U.S. Patent Pending)218
Slowdown Distance after Adjustments218
Figure 334: HYDRO SETUP-TSRD Distance218
Figure 335: TSRD Distance218
Figure 336: View Slowdown Distance up219
Figure 337:View Slowdown Distance down219
Overshooting220
Steady State of Leveling Is Longer220
Figure 338: SLOWDOWN DISTANCE up - Adjustment220
TSRD Distance221
Battery Test Time221
Figure 339: SLOWDOWN DISTANCE down - Adjustment221
Figure 340: HYDRO SETUP Menu - TSRD Distance221
Figure 341: TSRD Distance Menu221
Jack Resync Time222
Figure 342: HYDRO SETUP Menu - Battery Test Time222
Figure 343: Battery Test Time Menu222
Figure 344: HYDRO SETUP Menu - Jack Resync Time222
Disable NTS Alarm223
Figure 345: JACK RESYNC TIME Menu223
Figure 346: HYDRO SETUP Menu - Disable NTS Alarm223
Figure 347: DISABLE NTS ALARM Menu223
Data Acquisition Device Unit225
DAD Status225
Figure 348: DAD STATUS Menu225
Assigning Inputs and Outputs226
Adding an Input or Output226
Figure 349: Unused Input/Output226
Figure 350: Category and Input226
Removing an Input or Output227
Types of Inputs227
Table 30: Description of Auto Operation Inputs227
Table 31: Description of Car Call (Front and Rear) Inputs228
Table 32: Description of Car Call (Front and Rear) Inputs228
Table 33: Description of Controller Inputs229
Table 34: Description of Emergency Power Inputs230
Table 35: Description of Fire/Earthquake Inputs231
Table 36: Description of Front Doors Inputs231
Table 37: Description of Rear Doors Inputs232
Table 38: Description of Inspection Inputs233
Table 39: Description of Safety Inputs233
Types of Outputs234
Table 40: Description of Auto Operation Outputs234
Table 41: Description of Car Call (Front and Rear) Outputs235
Table 42: Description of Controller Outputs235
Table 43: Description of Emergency Power Outputs236
Table 44: Description of Fire/Earthquake Outputs236
Table 45: Description of Doors Outputs237
Table 46: Description of Rear Doors Outputs238
Invert Inputs239
Figure 351: SETUP I/O Menu - Invert Inputs239
Table 47: Description of Inspection Outputs239
Table 48: Description of Safety Outputs239
Invert Outputs240
Figure 352: Invert Inputs Menu240
Figure 353: SETUP I/O Menu - Invert Outputs240
Figure 354: Invert Outputs Menu240
Vip241
Active Shooter241
Marshal Mode241
Wander Guard242
Installing a New Board244
Retain Parameters for a Replaced MR Board244
Retain Parameters for a Replaced CT or COP Board244
Figure 355: SYNC in PROGRESS244
Figure 356: SYNC COMPLETE244
Hoistway Access245
Figure 357: HOISTWAY ACCESS - Allowed Distance Top245
Figure 358: ALLOWED DISTANCE TOP Menu245
Figure 359: HOISTWAY ACCESS - Top Floor246
Figure 360: TOP FLOOR Menu246
Figure 361: HOISTWAY ACCESS - Top Opening246
Figure 362: TOP OPENING Menu246
Figure 363: HOISTWAY ACCESS - Allowed Distance Bottom246
Figure 364: ALLOWED DISTANCE BOTTOM Menu247
Figure 365: HOISTWAY ACCESS - Bottom Floor247
Figure 366: BOTTOM FLOOR Menu247
Figure 367: HOISTWAY ACCESS - Bottom Opening247
Figure 368: BOTTOM OPENING Menu248
Figure 369: HOISTWAY ACCESS - HA Slide Distance248
Figure 370: HOISTWAY ACCESS Slide Distance248
Miscellaneous250
Bypass Term Limit250
Enable Construction Box250
Figure 371: MISCELLANEOUS Menu - Bypass Term Limits250
Figure 372: BYPASS TERM LIMITS Menu250
Maximum Run Time251
Figure 373: MISCELLANEOUS Menu - Enable Construction Box251
Figure 374: ENABLE CONSTRUCTION BOX Menu251
Figure 375: MISCELLANEOUS Menu - Max Run Time251
Figure 376: MAXIMUM RUN TIME Menu251
CT Insp. Req. IC252
Dis. Idletrvarrow252
Figure 377: MISCELLANEOUS Menu - CT Insp. Req. IC252
Figure 378: IC REQ for CT Menu252
Figure 379: MISCELLANEOUS Menu - Disable. Idletrvarrow252
Enable Latches Car Calls253
Car to Lobby Floor253
Figure 380: DISABLE IDLE TRV ARROW Menu253
Figure 381: MISCELLANEOUS Menu - Enable Latches Car Call253
Figure 382: ENABLE LATCHES CAR CALL Menu253
Parking254
GUI Parking254
Figure 383: MISCELLANEOUS Menu - Car to Lobby Floor254
Figure 384: CAR to LOBBY FLOOR Menu254
Figure 385: MISCELLANEOUS Menu - Parking254
Parking Timer255
Figure 386: PARKING Menu - GUI Parking255
Figure 387: ENABLE GUI PARKING Menu255
Figure 388: PARKING Menu - Parking Timer255
Figure 389: PARKING TIMER Menu255
Parking Floor256
Parking Door Open256
Figure 390: PARKING Menu - Parking Floor256
Figure 391: PARKING FLOOR Menu256
Figure 392: PARKING Menu - Parking Door Open256
Oos257
Disable OSS257
Figure 393: PARKING DOOR OPEN Menu257
Figure 394: MISCELLANEOUS Menu - OOS257
Figure 395: OOS Menu - Disable OOS257
Hourly Fault Limit258
Maximum Starts Per Minute258
Figure 396: DISABLE OOS Menu258
Figure 397: OOS Menu - Hourly Fault Limit258
Figure 398: HOURLY FAULT LIMIT Menu258
Disable PI OOS259
Figure 399: OOS Menu - Maximum Starts Per Minute259
Figure 400: MAXIMUM STARTS PER MINUTE Menu259
Figure 401: OOS Menu - Disable PI OOS259
Figure 402: DISABLE PI OOS Menu259
3 Digit PI260
Payment Passcode260
Figure 403: MISCELLANEOUS Menu - Enable 3 Digit PI260
Figure 404: ENABLE 3 DIGIT PI Menu260
Figure 405: MISCELLANEOUS Menu - Payment Passcode260
Direct Change Delay261
Default261
Figure 406: PAYMENT PASSCODE Menu261
Figure 407: MISCELLANEOUS Menu - Direct Change Delay261
Figure 408: DIRECT CHANGE DELAY Menu261
Default Floors262
Figure 409: MISCELLANEOUS Menu - Default262
Figure 410: DEFAULT Menu - Default Floors262
Figure 411: DEFAULT FLOORS? Menu262
Figure 412: DEFAULTING PARAMETERS Menu262
Default S-Curve263
Default Run Timers263
Figure 413: DEFAULTING PARAMETERS Menu - Parameters Defaulted263
Figure 414: DEFAULT Menu - Default S-Curve263
Figure 415: DEFAULT S-CURVE? Menu263
Default I/O264
Figure 416: DEFAULT Menu - Default Run Timers264
Figure 417: DEFAULT RUN TIMERS? Menu264
Figure 418: DEFAULT Menu - Default I/O264
Default Other265
Figure 419: DEFAULT I/O? Menu265
Figure 420: DEFAULT Menu - Default Other265
Figure 421: DEFAULT Other? Menu265
Default Factory266
Default FRAM266
Figure 422: DEFAULT FACTORY? Menu266
Figure 423: DEFAULT Menu - Default FRAM266
Figure 424: DEFAULT FRAM? Menu267
Swing Operation268
Configuring Swing Operation Input268
Calls Enable Swing268
Figure 425: Input Menu - Enable Swing268
Figure 426: SWING Menu - Calls Enable Swing268
Swing Opening269
Swing Call Mask269
Figure 427: CALLS ENABLE Menu269
Figure 428: DOORS Menu - Swing Openings (Front or Rear)269
Figure 429: SWING DOOR OPENINGS Menu269
Stay Active in Group270
Figure 430: GROUP SETUP Menu - Swing Call Mask270
Figure 431: HALL SWING MASK Menu270
Figure 432: SWING Menu - Stay in Group270
Figure 433: STAY in GROUP Menu270
Ldle Timer271
Timer271
Fan & Light Timer271
Figure 434: SWING Menu - Idle Timer271
Figure 435: IDLE TIMER Menu271
External Fan Timer272
Figure 436: MISCELLANEOUS Menu - Fan & Light Timer272
Figure 437: FAN & LIGHT TIMER Menu272
Figure 438: MISCELLANEOUS Menu - External Fan Timer272
Figure 439: MR FAN TIMER Menu272
Arrival Update Time273
Figure 440: MISCELLANEOUS Menu - Arrival Update Time273
Figure 441: ARRIVAL UPDATE TIME Menu273
Safety274
Lock Clip274
General ODL274
Figure 442: SAFETY Menu - Lock Clip274
Figure 443: LOCK CLIP Menu274
Figure 444: SAFETY Menu - General ODL274
Nts. Odl275
Tsrd Odl275
Figure 445: GENERAL ODL Menu275
Figure 446: SAFETY Menu - NTS ODL275
Figure 447: NTS ODL Menu275
Figure 448: SAFETY Menu - NTS TSRD ODL276
Figure 449: TSRD ODL Menu276
Emergency278
Emergency Power278
Earthquake Modes278
Privileged Modes278
Table 49: Inputs Used by the Controller for Emergency Power278
Fire Phase 1 and Phase 2 Operation279
EMS Phase 1 and Phase 2 Operation279
Cars in Manual Modes of Operation (Inspection States)279
Independent/Attendant Service Operation279
Other Modes279
Single Group Operation280
Number of Active Cars280
Multiple Group Operation280
Figure 450: E-POWER Menu - Number Active Cars280
Figure 451: Number Active Cars Menu280
Priority Car281
Figure 452: E-POWER Menu - Priority Car281
Figure 453: PRIORITY CAR Menu281
Recall282
Pretransfer Stall282
Recall Failure282
Figure 454: E-POWER Menu - Pretransfer Stall282
Figure 455: PRETRANSFER STALL Menu282
Intergroup Communication283
Earthquake283
Enable Earthquake283
Figure 456: EARTHQUAKE Menu - Enable Eq283
Set CW Position284
Figure 457: ENABLE EQ Menu284
Figure 458: EARTHQUAKE Menu - Set CW POS284
Figure 459: Save CW Position? Menu284
Earthquake Status285
Fire285
Figure 460: INPUTS by FUNCTION Menu - Fire/Earthquake285
Figure 461: FIRE/EARTHQUAKE Menu285
Main Recall286
Main Recall Floor286
Main Recall Door286
Figure 462: FIRE SERVICE Menu - Main Recall286
Figure 463: MAIN RECALL Menu - Floor286
Figure 464: MAIN RECALL FLOOR Menu286
Alternate Recall287
Alternate Recall Floor287
Figure 465: MAIN RECALL Menu - Opening287
Figure 466: MAIN RECALL DOOR Menu287
Figure 467: FIRE SERVICE Menu - Alt Recall287
Figure 468: ALT RECALL Menu - Floor287
Alternate Recall Door288
Main Smoke288
Figure 469: ALT RECALL FLOOR Menu288
Figure 470: ALT RECALL Menu - Opening288
Figure 471: ALT RECALL DOOR Menu288
Main or Alternate289
Flash Fire hat289
Figure 472: FIRE SERVICE Menu - Main Smoke289
Figure 473: MAIN SMOKE Menu - Main or Alt289
Figure 474: USE ALT FLOOR Menu289
Shunt Trip290
Figure 475: MAIN SMOKE Menu - Flash Fire hat290
Figure 476: FLASH FIRE hat Menu290
Figure 477: MAIN SMOKE Menu - Shunt Trip290
Figure 478: SHUNT on RECALL Menu290
Alternate Smoke291
Main or Alternate291
Figure 479: FIRE SERVICE Menu - Alt Smoke291
Figure 480: ALT SMOKE Menu - Main or Alt291
Figure 481: USE ALT FLOOR Menu291
Flash Fire hat292
Shunt Trip292
Hoistway Smoke292
Figure 482: ALT SMOKE Menu - Flash Fire hat292
Figure 483: ALT SMOKE Menu - Shunt Trip292
Main or Alternate293
Flash Fire hat293
Figure 484: FIRE SERVICE Menu - Hoistway Smoke293
Figure 485: HOISTWAY SMOKE Menu - Main or Alt293
Figure 486: HOISTWAY SMOKE Menu - Flash Fire hat293
Shunt Trip294
MR Smoke294
Main or Alternate294
Figure 487: HOISTWAY SMOKE Menu - Shunt Trip294
Figure 488: FIRE SERVICE Menu - MR Smoke294
Flash Fire hat295
Shunt Trip295
Figure 489: MR SMOKE Menu - Main or Alt295
Figure 490: MR SMOKE Menu - Flash Fire hat295
Recall Key296
PIT Smoke296
Figure 491: MR SMOKE Menu - Shunt Trip296
Figure 492: FIRE SERVICE Menu - Recall Key296
Figure 493: RECALL KEY Menu - Flash Fire hat296
Main or Alternate297
Flash Fire hat297
Figure 494: FIRE SERVICE Menu - PIT Smoke297
Figure 495: PIT SMOKE Menu - Main or Alt297
Figure 496: PIT SMOKE Menu - Flash Fire hat297
Shunt Trip298
Alt Machine Room298
Enable Alternate Machine Room298
Figure 497: PIT SMOKE Menu - Shunt Trip298
Figure 498: FIRE SERVICE Menu - Alt. Machine Room298
Hoistway 2 Smoke299
Main or Alternate299
Figure 499: ALT MACHINE ROOM Menu - Enable Alt. MR299
Figure 500: ENABLE ALT MR Menu299
Figure 501: ALT MACHINE ROOM Menu - HW 2 Smoke299
Figure 502: HOISTWAY 2 SMOKE Menu - Main or Alt299
Flash Fire hat300
Shunt Trip300
Figure 503: HOISTWAY 2 SMOKE Menu - Flash Fire hat300
Figure 504: HOISTWAY 2 SMOKE Menu - Shunt Trip300
MR 2 Smoke301
Main or Alt301
Flash Fire hat301
Figure 505: ALT MACHINE ROOM Menu - MR 2 Smoke301
Figure 506: MR 2 SMOKE Menu - Main or Alt301
Figure 507: MR 2 SMOKE Menu - Flash Fire hat301
Shunt Trip302
Advanced Config302
Figure 508: MR 2 SMOKE Menu - Shunt Trip302
Flood303
Number of Floors303
Figure 509: FIRE SERVICE Menu - Advance Configurations303
Figure 510: SMOKE CONFIGURATION Menu303
Okay to Run304
Figure 511: FLOOD Menu - Number of Floors304
Figure 512: NUMBER of FLOOD FLOORS Menu304
Figure 513: FLOOD Menu - Okay to Run304
Figure 514: OKAY to RUN Menu304
Override Fire305
Ems305
Allowph2Withoutph1305
Figure 515: FLOOD Menu - Override Fire305
Figure 516: OVERRIDE FIRE Menu305
Exit Ph2 any Floor306
Figure 517: EMS Menu - Allowph2Withoutph1306
Figure 518: ALLOWPH2WITHOUTPH1 Menu306
Figure 519: EMS Menu - Exit Ph2 any Floor306
Figure 520: EXIT PH2 any FLOOR Menu306
Fire Overrides Ph1307
Ph1 Exit Delay307
Figure 521: EMS Menu - Fire Overrides Ph1307
Figure 522: FIRE OVERRIDES PH1 Menu307
Figure 523: EMS Menu - Ph1 Exit Delay307
Ph2 Exit Delay308
Figure 524: PH1 EXIT DELAY Menu308
Figure 525: EMS Menu - Ph2 Exit Delay308
Figure 526: PH2 EXIT DELAY Menu308
Status310
Input Status310
Output Status310
Figure 527: INPUTS by FUNCTION Menu -Inspection310
Figure 528: INSPECTION Menu310
Figure 529: OUPTUS by FUNCTION Menu -Controller310
Valve 1 and Valve 2 Status311
Figure 530: CONTROLLER Menu311
Figure 531: Valve Status Menu - Part 1 of 3311
Figure 532: Valve Status Menu - Part 2 of 3311
Figure 533: Valve Status Menu - Part 3 of 3311
Soft Starter and Soft Starter 2 Status312
Figure 534: Soft Starter Status Menu - Part 1 of 3312
Figure 535: Soft Starter Status Menu - Part 2 of 3312
Figure 536: Soft Starter Status Menu - Part 3 of 3312
Expansion Status313
Riser Board Status313
Figure 537: EXPANSION STATUS Menu - Expansion Group313
Figure 538: Active Expansion Board Status313
Figure 539: Inactive Expansion Board Status313
Hall Call Status314
Figure 540: Active Riser Board Status314
Figure 541: Inactive Riser Board Status314
Figure 542: HALL CALL STATUS Menu314
Cpld315
Figure 543: up CALLS Menu315
Figure 544: down CALLS Menu315
Figure 545: CPLD STATUS Menu - MR, CT, COP CPLD315
Figure 546: MR CPLD Menu315
Figure 547: MR CPLD Menu Continued316
Figure 548: CT CPLD Menu316
Figure 549: CT CPLD Menu Continued316
Figure 550: COP CPLD Menu316
Figure 551: COP CPLD Menu Continued316
Table 50: CPLD Menu Description316
Table 51: CPLD Fault317
Table 52: CPLD Preflight Status320
Table 53: CPLD Preflight Command320
Table 54: CPLD Inputs321
E-Power Status322
Figure 552: E-POWER COMMAND Menu322
Figure 553: E-POWER COMMAND Menu Continued322
EMS Status323
Figure 554: EMS STATUS Menu - Car 1 Assigned323
Virtual Inputs324
Remote Commands324
Car Call Security324
Figure 555: EMS STATUS Menu - no Cars Assigned324
Figure 556: REMOTE COMMANDS Menu - Car Call Security324
Figure 557: SECURE CAR CALLS Menu - Front or Rear324
Hall Call Security325
Figure 558: Secure Car Front Menu325
Figure 559: Secure Car Rear Menu325
Figure 560: REMOTE COMMANDS Menu - Hall Call Security325
Figure 561: SECURE HALL CALLS Menu - Front or Rear325
Virtual Input326
Figure 562: Secure Front Hall Call Menu326
Figure 563: Secure Rear Hall Call Menu326
Figure 564: REMOTE COMMANDS Menu - Virtual Inputs326
Figure 565: Virtual Input Menu326
Recall Input327
Door Command Landing327
Figure 566: REMOTE COMMANDS Menu - Recall Input327
Figure 567: Recall Floor/Door Menu327
Figure 568: REMOTE COMMANDS Menu - Door Command Landing327
DIP Status328
Door Status328
Figure 569: Door Command Landing Menu328
Figure 570: DIP STATUS Menu - MR, CT, or COP DIP328
Figure 571: DIP SWITCHES Menu328
Figure 572: Door Status Menu328
Group Setup329
Group Car Index329
Group Landing Offset329
Figure 573: GROUP SETUP Menu - Group Car Index329
Figure 574: GROUP CAR INDEX Menu329
Figure 575: GROUP SETUP Menu - Group Landing Offset329
Dispatch Timeout330
Dispatch Offline Timeout330
Figure 576: GROUP LANDING OFFSET Menu330
Figure 577: GROUP SETUP Menu - Dispatch Timeout330
Figure 578: DISPATCH TIMEOUT Menu330
Xreg331
Xreg Cars331
Figure 579: GROUP SETUP Menu - Dispatch Offline Timeout331
Figure 580: DISPATCHING OFFLINE TIMEOUT Menu331
Figure 581: GROUP SETUP Menu - XREG Cars331
Xreg Destination Timeout332
Xreg Destination Offline Timeout332
Figure 582: NUMBER XREG CARS Menu332
Figure 583: GROUP SETUP Menu - Xreg Destination Timeout332
Figure 584: XREG DESTINATION TIMEOUT Menu332
Xreg Destination333
Xreg Data333
Figure 585: GROUP SETUP Menu - Xreg Destination Offline Timeout333
Figure 586: XREG DESTINATION OFFLINE TIMEOUT Menu333
Figure 587: DESTINATION Menu333
PI Labels334
Attendant334
Figure 588: Emergency Power Status Menu334
Figure 589: Fire Emergency Power Status Menu334
Figure 590: SET PI LABEL Menu334
Dispatch Timeout335
Buzzer Time335
Figure 591: ATTENDANT Menu - Dispatch Timeout335
Figure 592: DISPATCH TIMEOUT Menu335
Figure 593: ATTENDANT Menu - Buzzer Time335
Real Time Clock336
Clock Status336
Figure 594: BUZZER TIME Menu336
Figure 595: Real-Time Clock Menu336
Figure 596: Clock Menu336
Debug338
View Debug338
Figure 597: View Debug Data Menu338
Table 55: Data Index for MR, CT, and COP Board Communication338
Enter Car Calls340
Figure 598: ENTER CAR CALLS Menu - Front or Rear340
Enter Hall Calls341
Enter Door Command341
Figure 599: ENTER CAR CALL Menu341
Figure 600: Hall Call Menu341
View Network Packet342
View Group Packet342
Figure 601: Enter Door Command Menu (Front and Rear Doors)342
Figure 602: Enter Door Command Menu (Front Doors Only)342
Figure 603: Network Packet342
Acceptance Test343
Emergency Bitmap343
Module Statuses343
Figure 604: Group Packet343
Figure 605: SELECT ACCEPTANCE TEST Menu343
Figure 606: EMERGENY STATUS Menu343
Motion Status344
Pattern Data344
Figure 607: MODULE STATUS Menu - Motion Status344
Figure 608: Motion Status Menu Part 1 of 2344
Figure 609: Motion Status Menu Part 2 of 2344
Figure 610: Module Status Menu - Pattern Data344
Auto Status345
Recall Status345
Figure 611: PATTERN DATA Menu Part 1 of 2345
Figure 612: PATTERN DATA Menu Part 2 of 2345
Figure 613: MODULE STATUS Menu - Auto Status345
Figure 614: Auto Operation Status Menu345
Fire Status346
Figure 615: MODULE STATUS Menu - Recall Status346
Figure 616: Recall Status Menu346
Figure 617: MODULE STATUS Menu - Fire Status346
Figure 618: Fire Status Menu346
Counterweight Status347
Floor Learn Status347
Figure 619: MODULE STATUS Menu - Counterweight Status347
Figure 620: Counterweight Status Menu347
Figure 621: MODULE STATUS Menu - Floor Learn Status347
Car Destination348
Figure 622: Floor Learn Status Menu348
Figure 623: DESTINATION Menu348
Run Counter349
Debugruns349
Dwell Time349
Figure 624: RUN COUNTER Menu349
Figure 625: DEBUGRUNS Menu - Dwell Time349
Figure 626: RUN DWELL TIME Menu349
Terminal to Terminal350
Figure 627: DEBUGRUNS Menu - Terminal to Terminal350
Figure 628: TERMINAL to TERMINAL Menu - Front or Rear350
Figure 629: TERMINAL to TERMINAL FRONT Menu350
Figure 630: TERMINAL to TERMINAL REAR Menu350
Floor to Floor351
Random351
Figure 631: DEBUGRUNS Menu - Floor to Floor351
Figure 632: FLOOR to FLOOR Menu - Front or Rear351
Figure 633: FLOOR to FLOOR FRONT Menu351
Figure 634: FLOOR to FLOOR REAR Menu351
Hall Random Runs352
Figure 635: DEBUGRUNS Menu - Random352
Figure 636: RANDOM Menu - Front or Rear352
Figure 637: RANDOM RUNS FRONT Menu352
Figure 638 RANDOM RUNS REAR Menu352
About353
Figure 639: DEBUGRUNS Menu - Hall Random Runs353
Figure 640: HALL RANDOM RUNS Menu353
Figure 641: JOB ID353
Faults354
Active Faults354
Figure 642: Active Faults Menu354
Figure 643: Fault Part 1 of 3354
Figure 644: Fault Part 2 of 3354
Figure 645: Fault Part 3 of 3354
Logged Faults355
Cleared Faults355
Figure 646: FAULT LOG Menu355
Figure 647: CLEAR FAULT LOG? Menu355
Table 56: Faults Reported by Software or Hardware355
Alarms356
Active Alarms356
Logged Alarms356
Figure 648: Active Alarms Menu356
Figure 649: Alarm Part 1 of 2356
Figure 650: Alarm Part 2 of 2356
Cleared Alarms357
Figure 651: ALARM LOG Menu357
Figure 652: CLEAR ALARM LOG? Menu357

Smartrise HYDRO:EVOLVED User Manual

Table of Contents

Other manuals for Smartrise HYDRO:EVOLVED

Questions and Answers:

Smartrise HYDRO:EVOLVED Specifications

Related product manuals

Brand	Smartrise
Model	HYDRO:EVOLVED
Category	Controller
Language	English
