Hydro:Evolved User Manual

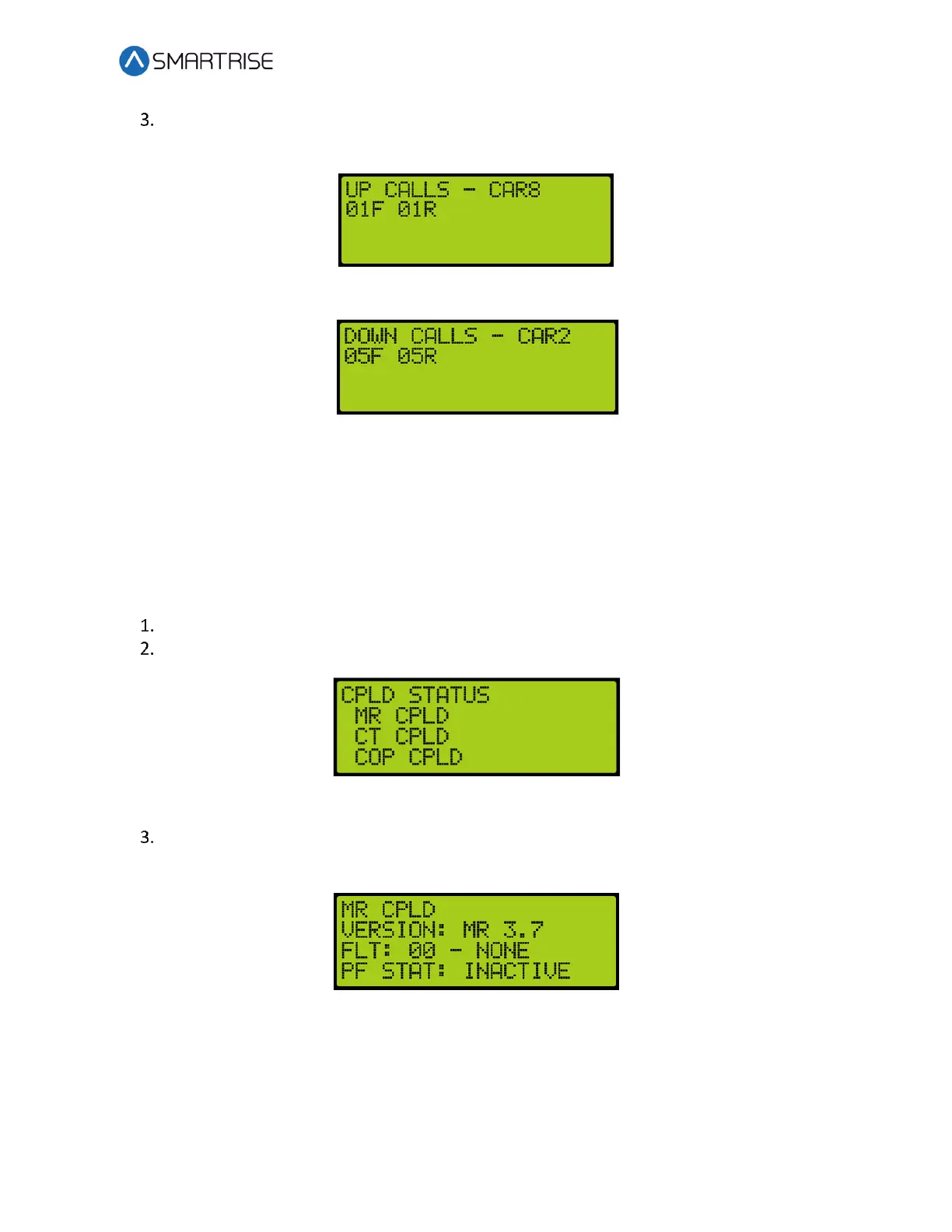

From the UP CALLS or DOWN CALLS menu, scroll and view hall calls with the car moving

up or down.

Figure 543: UP CALLS Menu

Figure 544: DOWN CALLS Menu

32.8 CPLD

The CPLD status displays the current CPLD software version, faults, commands, and type of

input during preflight operation.

The following procedure describes how to view the MR CPLD status.

Navigate to MAIN MENU | STATUS | CPLD STATUS. See Figure 48.

From the CPLD STATUS menu, scroll and select the (MR, CT, or COP) CPLD.

Figure 545: CPLD STATUS Menu – MR, CT, COP CPLD

From the CPLD menu, view the CPLD status.

NOTE: Scroll down to see additional information.

Figure 546: MR CPLD Menu
