Safety edge broken status. This output turns ON when the safety
edge or photoeye is broken.
Used by Peelle light curtain to test for photoeye failure prior to
each close attempt.
Used by Peelle door operator. Activates 5 seconds before starting
door close and remains on until doors fully closed.
Table 47: Description of Inspection Outputs
Signals when the car is on inspection.
Table 48: Description of Safety Outputs
Car's flood sensor has detected a flood.
Lamp indicating emergency phone has failed.
Buzzer indicating emergency phone has failed.
20.5 Invert Inputs
After a type of input has been assigned, the input may need to have the system to monitor the
state of the input either to active or inactive. The invert inputs allows for changing the
monitoring of the assigned input.
The following procedure describes how to change the state of the input.
Navigate to MAIN MENU | SETUP | SETUP I/O. See Figure 54.
From the SETUP I/O menu, scroll and select Invert Inputs.

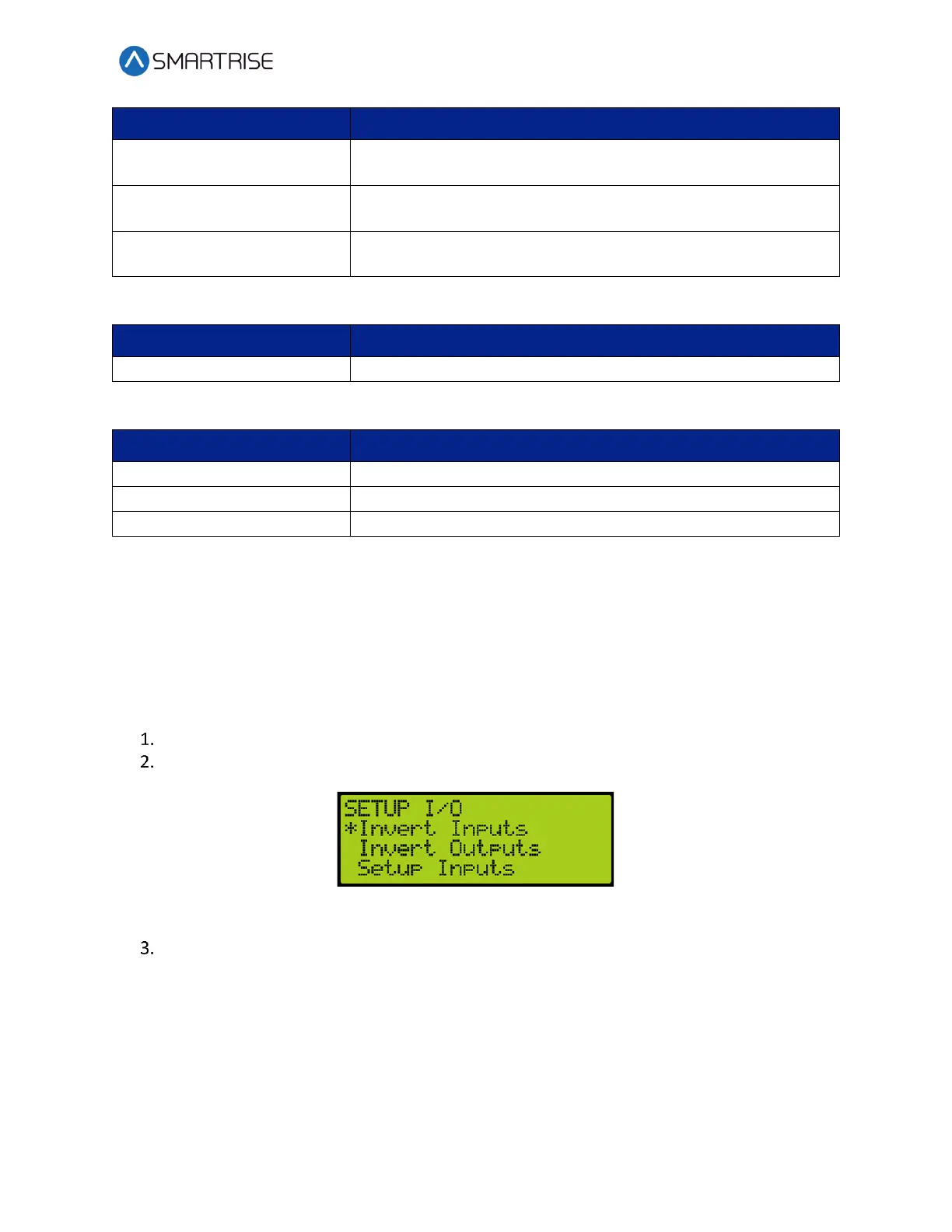

Figure 351: SETUP I/O Menu – Invert Inputs
From the SELECT BOARD menu, scroll and select the board that has an assigned input
changing states. See Figure 159.
NOTE: For this example, the MR board is shown.
To Next Page
