Hydro:Evolved User Manual

From the FLOOR OPENING (Front) menu, scroll and select the front doors for each floor

that opens during the Sabbath.

NOTE: The doors, that open, have to be set to ON.

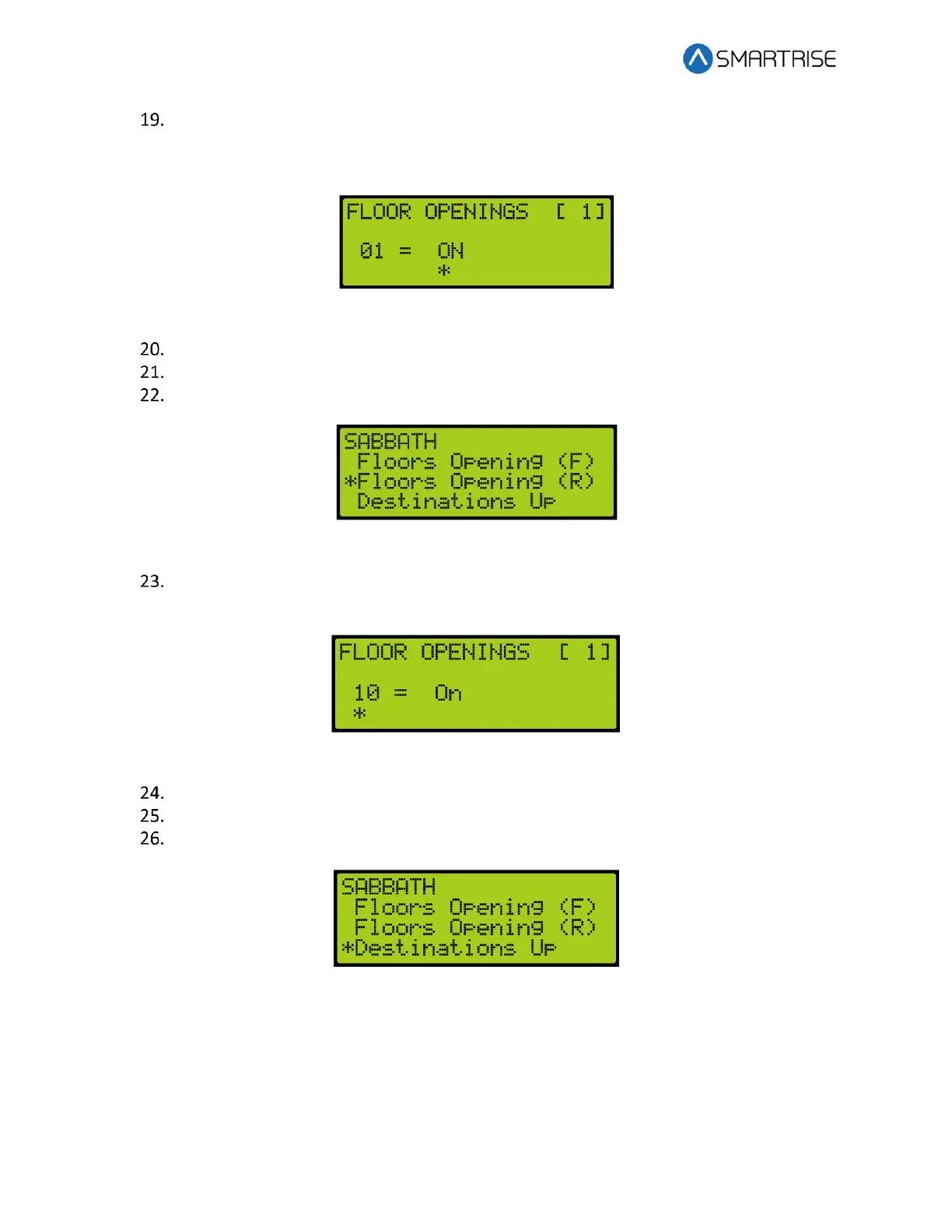

Figure 164: FLOOR OPENINGS (Front) Menu

Scroll right and press Save.

Press the left button until the SABBATH menu is displayed.

From the SABBATH menu, scroll and select Floors Opening (R).

Figure 165: SABBATH Menu – Floors Opening (R)

From the FLOOR OPENING (Rear) menu, scroll and select the rear doors for each floor

that opens during the Sabbath.

Figure 166: FLOORS OPENINGS (Rear) Menu

Scroll right and press Save.

Press the left button until the SABBATH menu is displayed.

From the SABBATH menu, scroll and select Destinations Up.

Figure 167: SABBATH Menu – Destinations Up
